Handheld XRF Spectrometers

S1 TITAN

Portable Elemental Analysis From Mg - U

Shielded Detector- Guaranteed!

Wide Range of Applications

S1 TITAN Handheld XRF

亮点

2
Times Faster
New graphene SDD detectors mean 2 times faster light element measurement!
50
Newton Force
Bruker proprietary detector shield is guaranteed protection to the detector, it can withstand more than 50 newtons force on the point of a dart tip.
3
mm
Small Spot Collimator
Optional 3 mm collimator enables accurate measurement of small components and welds.

The S1 TITAN is lightweight (1.5 kg, including battery) and rugged handheld XRF analyzer. Fast analysis speed and exceptional accuracy are two key attributes that help define the S1 TITAN.

Other Innovative Features Include:

  • 50 kV X-ray tube
  • Latest graphene window detector technology
  • TITAN detector shield - guaranteed detector protection
  • SMART Grade timing for fast alloy grade ID
  • Wi-Fi and USB connectivity
  • An extremely tough housing that is sealed against humid and dusty environments



The S1 TITAN HHXRF series is available in three configurations: models 800, 500 and 500S. All models use the latest graphene window SDD detector technology which enables faster light element analysis. The S1 TITAN 800 use a large area detector to give you incredibly fast analysis times. The S1 TITAN 500 and 500S are configured with a fast and accurate standard SDD detector. All models are equipped with TITAN Detector Shield which provides a guaranteed detector protection. In addition, the S1 TITAN can be configured with calibrations that are optimized for a variety of sample materials- including a wide range of alloys, metal coatings, various mining & environmental samples, as well as restricted materials.



特点

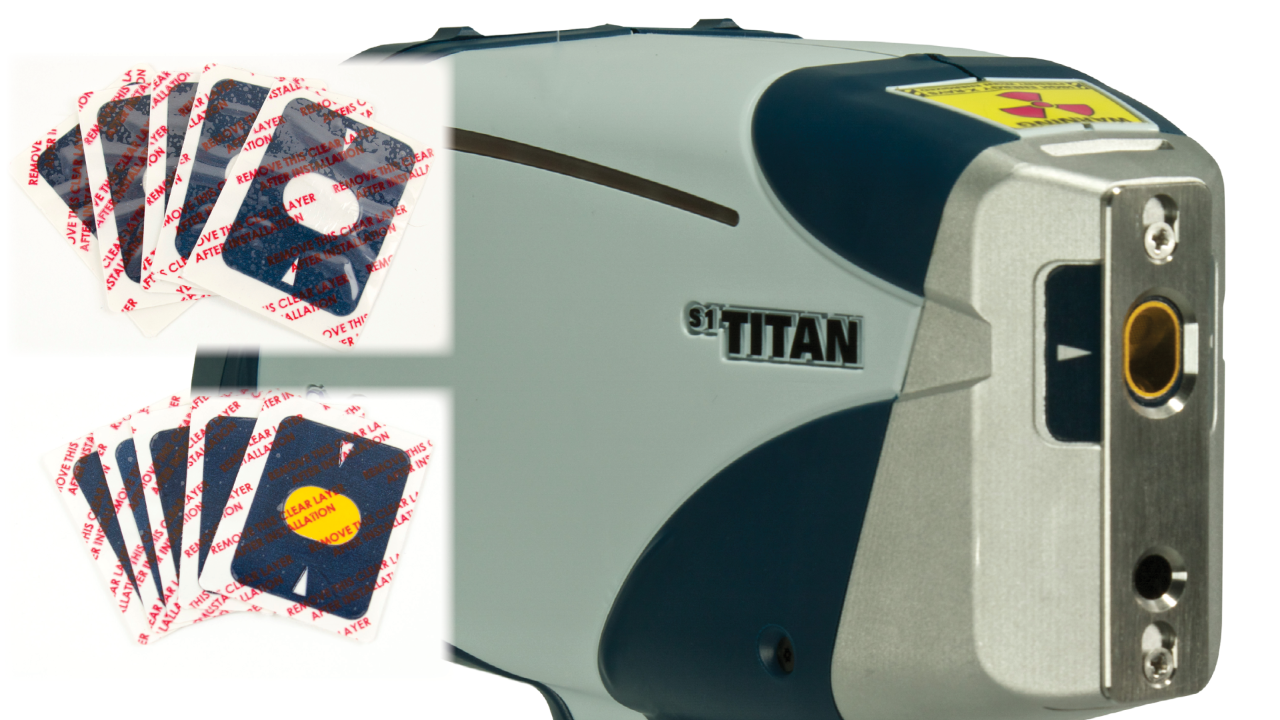

TITAN Detector Shield

The ultimate defense against punctured detectors, GUARANTEED!

  • Do you analyze metal turning or fine wires with your XRF gun?
  • Have you ever punctured your XRF gun’s detector?

Then you know that the cost to repair a detector can range from $7,000 to $10,000…plus potential down-time.

The TITAN Detector Shield can minimize these risks! Learn more about the TITAN Detector Shield and our exclusive GUARANTEE!

优势

S1 TITAN Benefits at a Glance:

Available calibrations include: alloy, gold and precious metals, catalytic converters, soil, mining, restricted materials, metal coatings and customer specific

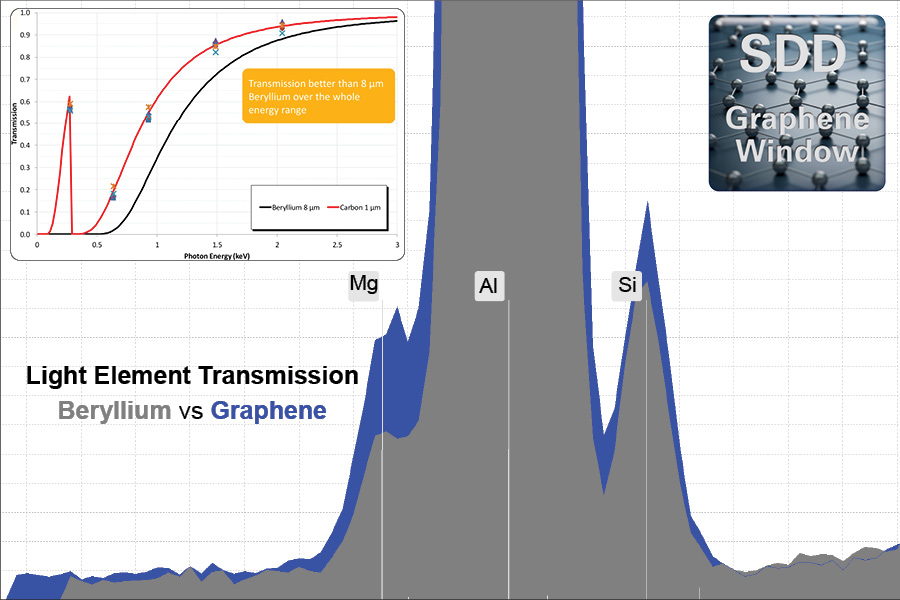

  • Latest graphene window SDD detector technology
  • Superior count rates and resolution
  • Faster than previous generations
  • Lower detection limits
  • Easy analysis of light elements, such as magnesium, aluminum and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 500S)



规格

S1 TITAN Specifications

  S1 TITAN Model 800 S1 TITAN Model 500S S1 TITAN Model 500
Detector Graphene window SDD; 20mm2 active area; Typical resolution <145eV @450,000cps
TITAN Detector Shield (TM) Included on all models
Size / Weight 25 cm x 28 cm x 9 cm / 1.5 kg (with battery)
Integrated camera Optional on all models
Elemental Range Mg - U Mg - U Ti - U
Collimator options

8mm standard.

5mm or 3mm optional.

8mm 8mm

软件

S1 TITAN Software Downloads

  • Bruker Toolbox 1.8.0.136 software tools (16.5 MB .zip file)
  • S1 Data Tool demo version (230 MB .zip file) report generation software Without a hardware key (dongle) the software runs in testmode, which means that it is not possible to print/save reports or export results to EXCEL/textfiles, and the number of database records is limited to 30!

    To purchase a dongle and unlock the full functionality, please contact Bruker.

    Download the ZIP file to your computer, unzip it into a folder on your harddisk, start setup.exe and follow the on screen instructions.
        After starting the software, you have to enter a username and password.
        Username: admin
        Password: admin

支持

S1 TITAN Service and Support

Support Programs flyer (0.3 MB .pdf file)
