X-Ray Metrology for Compound Semiconductors

QC3

High-resolution X-ray diffraction system for epilayers

Long-established and well-proven QC system for epilayers

QC3

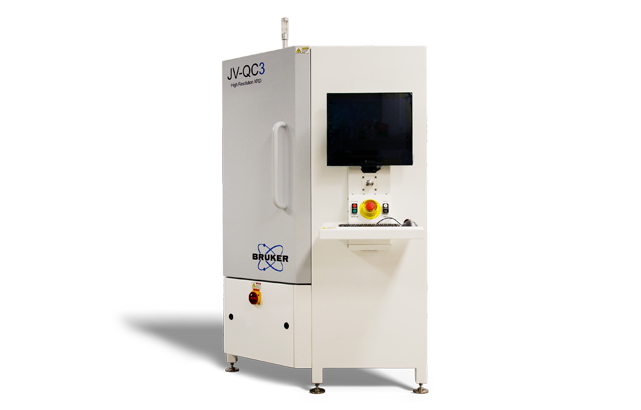

The QC3 is the long-established and well-proven QC system for epilayers. It is a high-resolution X-ray diffraction tool that is ideal for quality control. It is used for the measurement of composition and thickness in epitaxial layers of almost any material. The system uses standard sealed tube optics, combined with a variety of beam conditioning crystals that can be optimized to give the highest combination of resolution and intensity for each application.

Full 300mm of travel
allowing for measurements of large wafers or several small wafers simultaneously
Features

Automated Operation

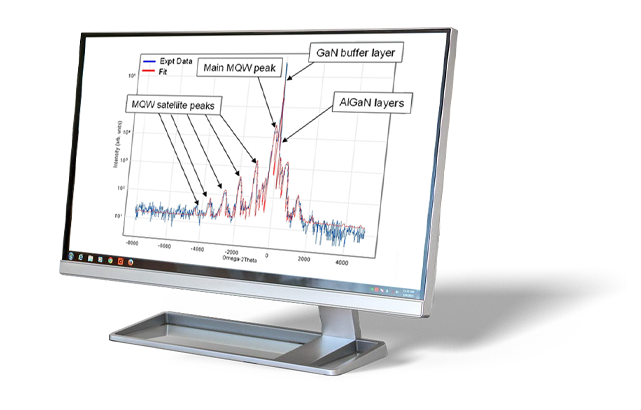

The QC3 offers true automated operation, with straight-forward horizontal sample mounting, and fully automated alignment, measurements, and data analysis. Data analysis can be performed automatically, or offline using our popular RADS software. The sample stage has a full 300mm of travel, allowing for measurements of large wafers, or several smaller wafers simultaneously. It is the traditional tool of choice for QC measurements within epilayer growth.
