Nanomechanical Test Instrument

Hysitron IntraSpect 360

In-situ mechanical characterization for X-Ray microscopes and synchrotron beamlines

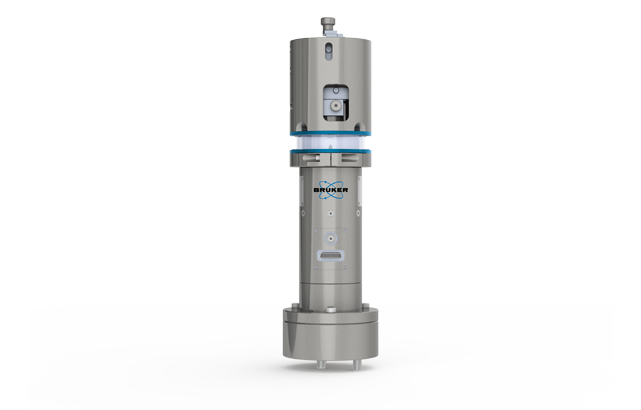

Hysitron IntraSpect 360

Bruker’s Hysitron IntraSpect 360 brings quantitative mechanical property characterization to X-Ray microscopes (XRM) and beamlines. This unique system can be used to perform a variety of mechanical tests such as indentation, compression, fatigue, and bending, which can then be correlated to 2D or 3D images from the host microscope.

Performech
advanced control module with TriboScan
Ensures precise, feedback-controlled nanomechanical testing with automated data analysis.
360° X-ray
transparent viewing window
Provides unobstructed imaging and streamlined μCT studies of material deformation, including fracture and the onset of failure.
Exclusive
three-plate capacitive transducer technology
Delivers an unsurpassed level of stability during 4D studies of material failure, such as crack propagation at a fiber-matrix interface, or void behavior within weld joints.
Testing Modes

Load or Displacement-Controlled

Nanoindentation

Compression

Bending

Fatigue

Cutting-Edge Technology for Maximum Capability

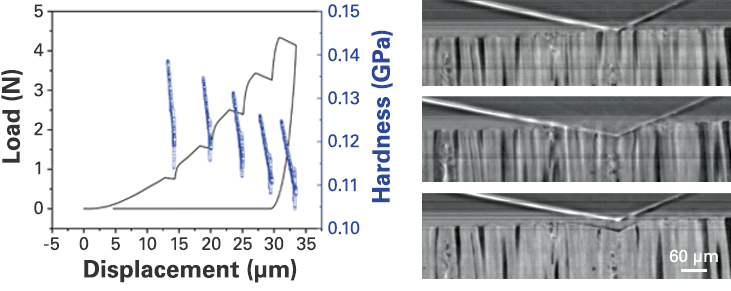

The load-displacement data from in-situ indentation test on Southern Yellow Pine and a series of 2D image slices acquired during the test. The load was applied normal to the transverse plane while deformation was observed on a longitudinal plane.

The Hysitron IntraSpect 360 utilizes a unique piezoelectric load cell combined with exclusive three-plate capacitive transducer technology. This arrangement delivers a significant increase in the available displacement range while maintaining an ultra-low noise floor. This exclusive design results in very little heat generation, which offers unparalleled stability while in contact with a sample. This is extremely important during the imaging process for computed tomography studies (μCT) where data acquisition can be lengthy. Tests as long as 168 hours have been reliably performed in combination with Bruker’s reference frequency correction technique. The system also includes Bruker’s Performech Advanced Control Module and TriboScan software for precise, feedback-controlled nanomechanical testing and automated data analysis.

Proprietary Design for Ultimate Performance

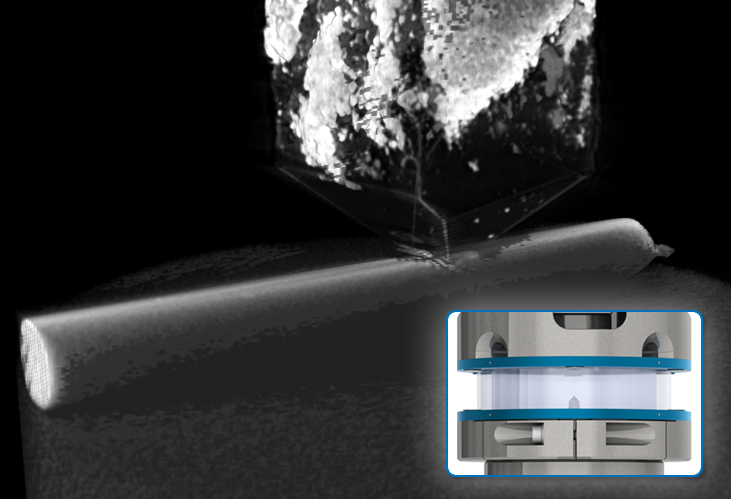

The IntraSpect 360 features a seamless, X-Ray transparent viewing window for unobstructed imaging and streamlined μCT studies of material deformation, including fracture and the onset of failure. With up to 10N of maximum force and 80μm of displacement, the system is a versatile choice for characterizing the internal deformation processes in a wide variety of materials, such as composites, ceramics, metals, and natural or biological materials. Bruker’s industry-leading transducer technology delivers an unsurpassed level of stability during 4D studies of material failure such as crack propagation at a fiber-matrix interface, or void behavior within weld joints.
