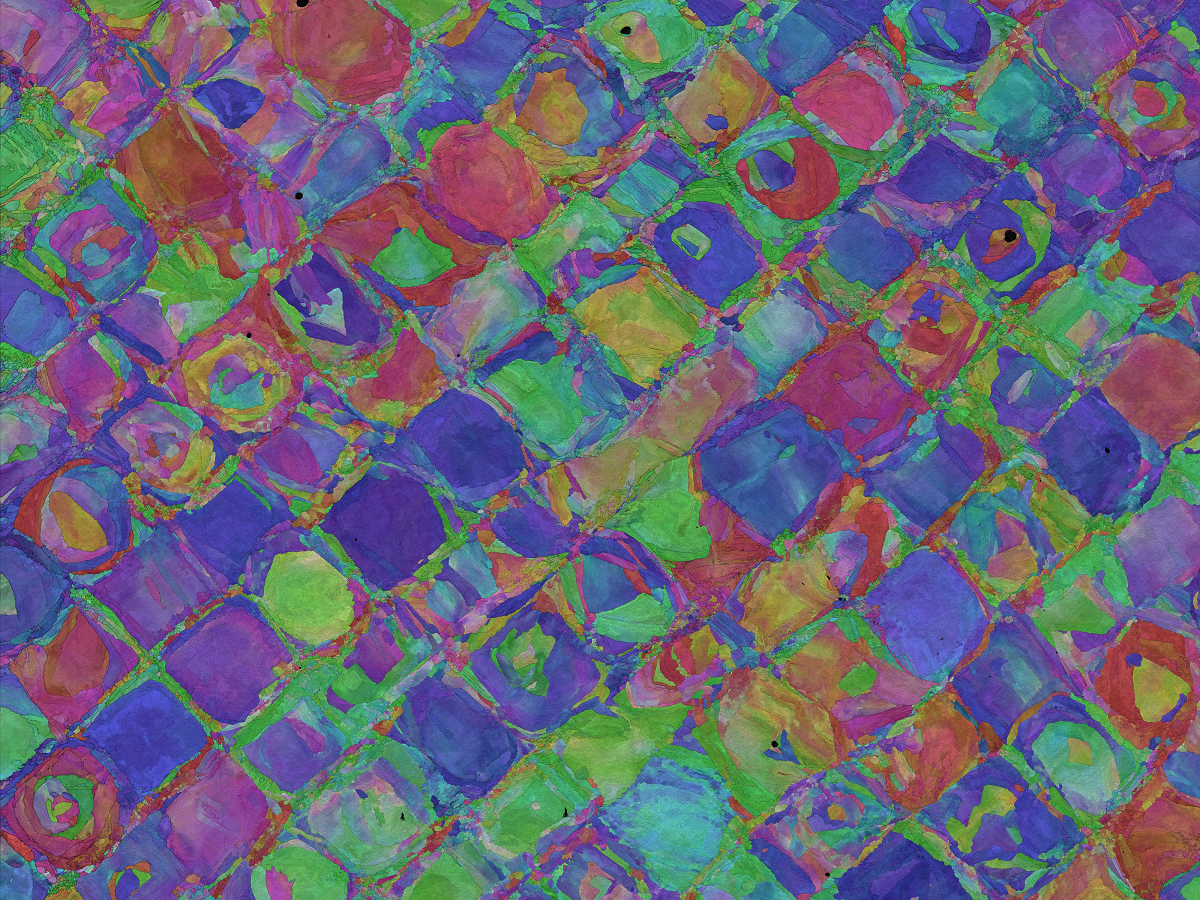

EBSD map from material processed via additive manufacturing
EBSD map from material processed via additive manufacturing

EBSD Detectors

Take Your EBSD Research Further with the Right Detector

Bruker has a range of different EBSD detectors available for use with its QUANTAX EBSD and QUANTAX ED-XS systems. Whether the focus is performing ultra-fast and low kV EBSD, finding an accessible solution for everyday microanalysis or performing TKD or FSE/BSE imaging - Bruker has the right EBSD detector for you.

Here you can find information on all of our EBSD detectors - eWARP, eWARP TKD and eFlash XS.

If you would like help determining which EBSD detector is best for your application contact one of our experts.

eWARP: Direct Electron Detection for Ultra-Fast, Low kV EBSD

eWARP is the pioneering EBSD detector that makes ultra-fast, low kV EBSD ordinary.

Thanks to it's unique sensor, that works via direct electron detection, eWARP achieves industry-leading levels of signal efficiency. This in turn facilitates fast, high-resolution imaging in a way never seen before.

Discover eWARP and enter the new era of EBSD.

Discover eWARP Get a Quote

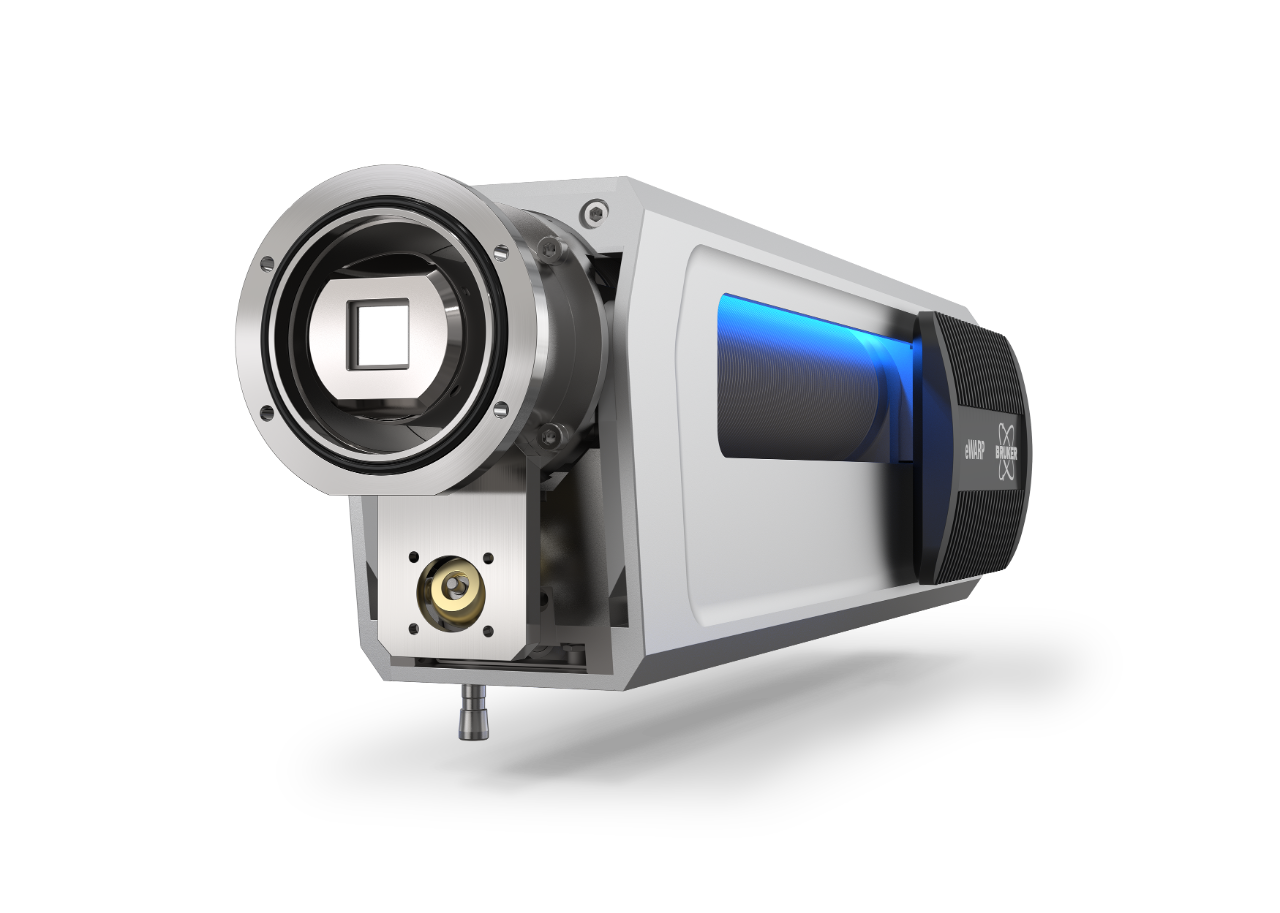

eWARP - the revolutionary new EBSD detector that works via direct electron detection.

eWARP TKD: Take Nanomaterials Characterization to the Next Level

eWARP TKD brings the benefits of our award-winning WARP sensor technology to the field of Transmission Kikuchi Diffraction.

By combining ultra-fast acquisition with spatial resolutions below 2 nm, eWARP TKD redefines what is possible in nanoanalysis, enabling high-quality orientation and phase mapping with unprecedented speed, sensitivity, and data integrity.

Discover eWARP TKD Get a Quote
eWARP TKD uses the power of Bruker's cutting-edge WARP technology to take nanomaterials characterization to the next level.

eWARP Lite: Next-Generation EBSD for Every Lab

eWARP Lite makes Bruker's innovative WARP sensor technology available to everyone. With eWARP Lite any materials science lab now experience the benefits of eWARP's fast and sensitive EBSD mapping.

Delivering exceptional acquisition speeds and robust data quality, eWARP Lite provides an attractive balance of performance, versatility, and value.

Get a Quote
eWARP Lite: Making WARP technology accessible for ultra-fast EBSD analysis in every materials science lab.

eFlash XS - Routine EBSD Analysis using a Desktop SEM

The eFlash XS Detector is a compact EBSD detector designed for seamless integration with desktop scanning electron microscopes (SEMs).

Its small footprint and efficient design make it well-suited for routine electron backscatter diffraction (EBSD) analysis, providing reliable crystallographic data with minimal setup. Optimized for ease of use, the eFlash XS enables accessible and efficient EBSD measurements, making it a practical choice for routine materials characterization in research and industry.

Discover eFlash XS Get a Quote

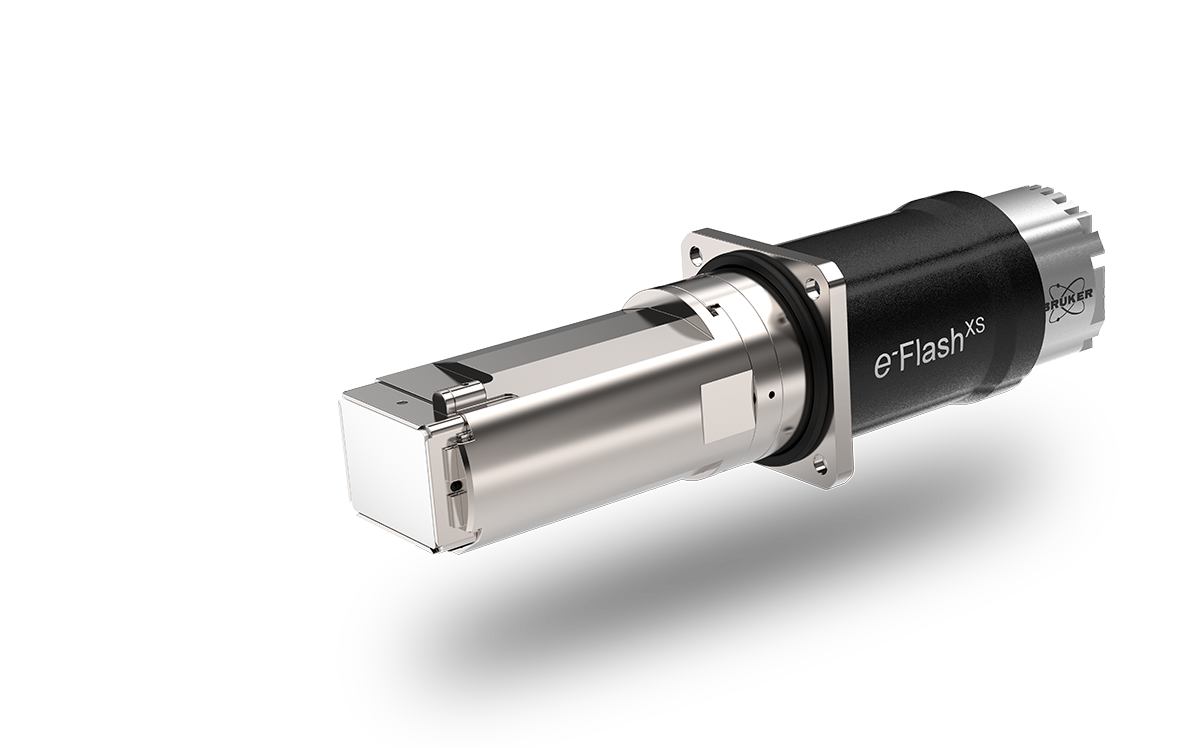

The eFlash XS is an EBSD detector in a compact package, designed for integration with desktop SEMs.

QUANTAX EBSD - Complete Analytical System for EBSD

QUANTAX EBSD is a complete analytical system that provides users with everything they need to perform EBSD on their scanning electron microscope.

QUANTAX EBSD includes:

  • Your choice of EBSD detector - either eWARP, eWARP TKD or eWARP Lite.
  • Hardware and electronics.
  • ESPRIT software for measurement and analysis, including correlation with EDS analysis.
Discover QUANTAX EBSD

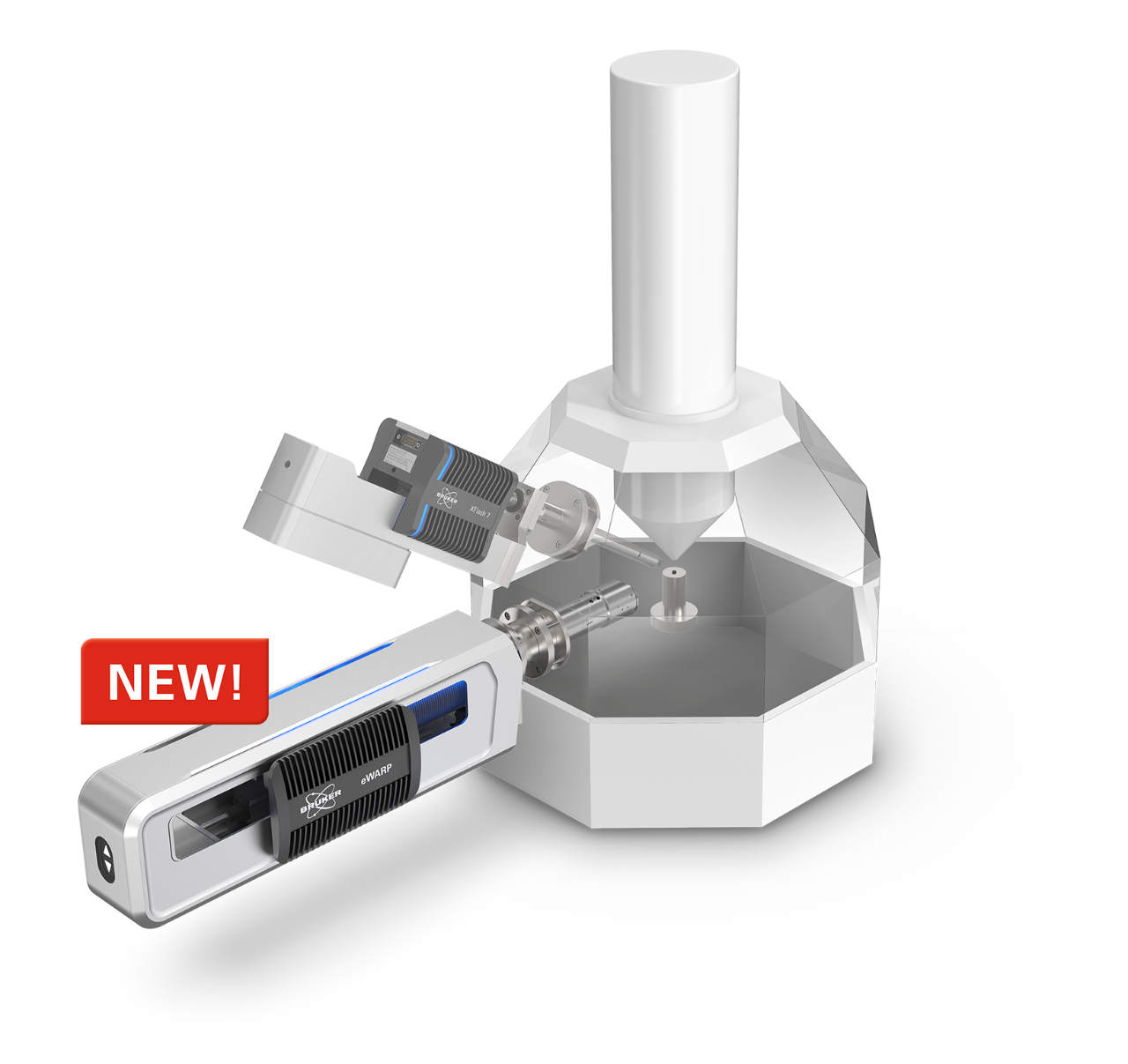

QUANTAX EBSD - A complete analytical system for EBSD, including an EBSD detector, hardware and software.
