Hot Hardness Testing on the UMT
Maximize Efficiency with Hot Hardness Testing on the UMT
Discover the critical importance of material strength at elevated temperatures with our technical note on Hot Hardness Testing using the UMT. This comprehensive guide explores how this efficient and versatile testing method can provide invaluable insights for industries operating under high-temperature conditions.
Contents Include
KEYWORDS: Tribometer; Mechanical Tester; TN1002; Bruker; Technical Note; UMT TriboLab; Hot Hardness Testing; High Temperature
Mechanical Properties at High Temperatures
In applications such as engines or gas turbines, improved efficiency can be achieved through operation at higher temperatures. Additionally, applications such as hot working of metals, catalytic processing to remove harmful greenhouse gases, steam turbines, and petrochemical processing all require materials that maintain their strength at high temperatures, in combination with corrosion-resistance and/or wearresistance. Thus, it is useful to be able to compare materials under high-temperature service conditions.
Why Hot Hardness?
The answer is simple: a hardness test is easy, fast and inexpensive. While tensile testing is the traditional method to assess material strength at high temperature, tensile tests require specialized samples and equipment. A hardness test, on the other hand, can provide strength-based comparisons of materials using very simple sample shapes, including flats or rods.

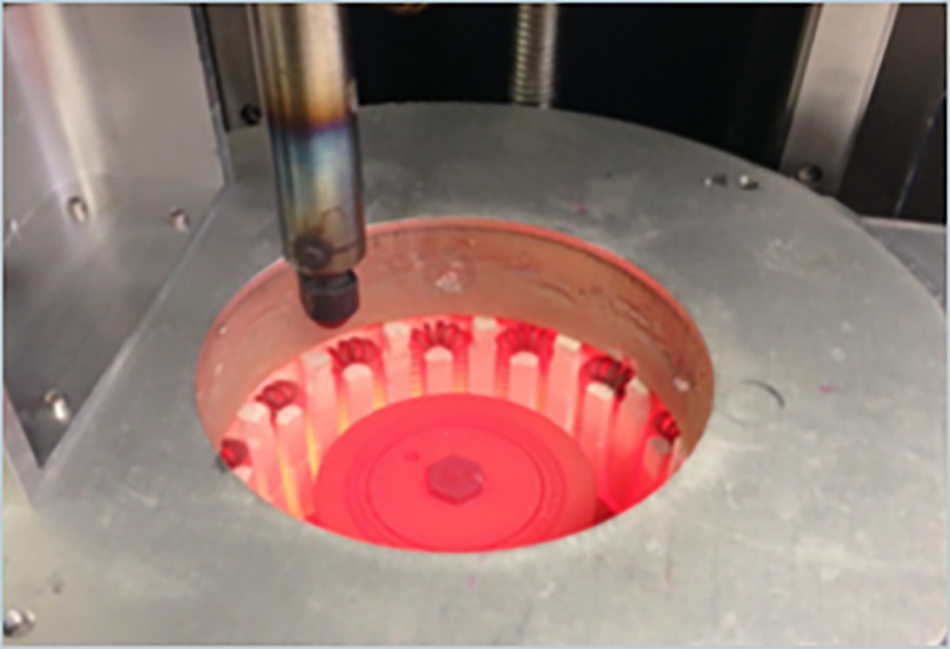

With various indenters available with a range of force sensors, a UMT can perform a wide variety of material screening and comparison tests under conditions from room temperature up to 1000°C. Plus, the tests can be performed on an extremely wide range of materials, from plastics to soft metals to super-alloys. Hightemperature wear tests also can be conducted on the same samples.
© 2015 Bruker Corporation. All rights reserved. TN1002 Rev. A0
