Software: ESPRIT Family

ESPRIT DynamicS

High Resolution EBSD Pattern Simulation

하이라이트

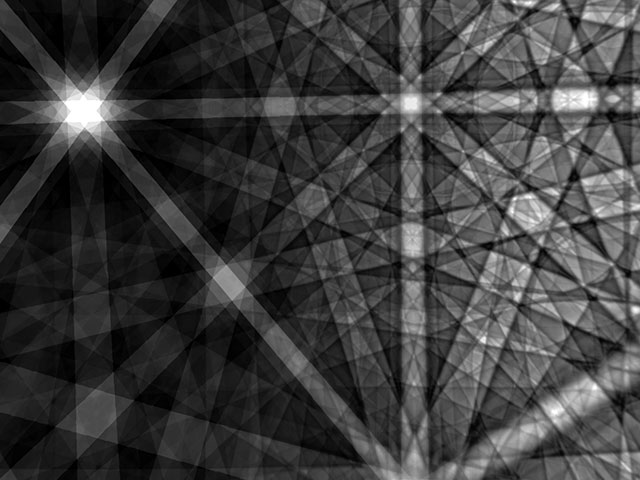

Dynamical Pattern Simulation to Support EBSD Analysis

ESPRIT DynamicS is a powerful and hardware-independent dynamical EBSD (Electron Backscatter Diffraction) pattern simulation software, meaning it can be an important aid to users of any EBSD system in the market.

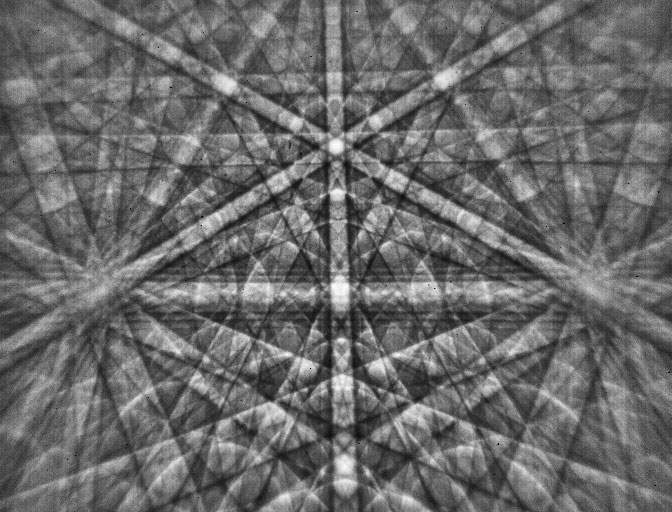

EBSD relies on the analysis of electron Kikuchi patterns which are obtained from microscopic regions of a sample in a scanning electron microscope. The pattern simulations provided by ESPRIT DynamicS greatly facilitate highly accurate analysis of crystal orientations and phases. Using a revolutionary software engine, it makes full use of available computing power to provide realistic pattern simulations within shortest times. The wealth of detail compared to standard pattern simulations in combination with advanced software tools supports highest demands in EBSD pattern analysis.

ESPRIT DynamicS provides all common simulation approaches for EBSD patterns, from simple kinematic models to sophisticated simulations using the dynamical theory of electron diffraction, which show the highest level of realism.

The software supports the import of crystallographic phase definitions in various formats, e.g. ESPRIT XML phase list files, CIF (Crystallographic Information File), CEL (PowderCell). Arbitrary EBSD patterns can be imported in common graphics formats. Simulation results are stored in form of a master file describing the complete diffraction data for a specific phase. This facilitates the subsequent real-time projection and rotation of the simulated data. Users can set the program to their needs and experts can tweak many of the simulation parameters to further optimize their results.
