Nanomechanical Test Instrument

Hysitron TS 75 TriboScope

Delivering quantitative, rigid-probe nanoindentation and nanotribology to atomic force microscopy
Hysitron TS 75 TriboScope

Najważniejsze informacje

Hysitron TS 75 TriboScope

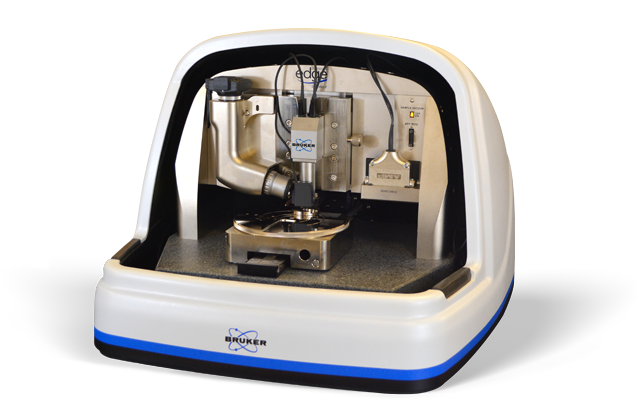

Bruker’s Hysitron TS 75 TriboScope delivers quantitative, rigid-probe nanoindentation and nanotribological characterization capabilities to the world of atomic force microscopy. The Hysitron TriboScope interfaces with Bruker’s Dimension Icon, Dimension Edge, and MultiMode 8 AFMs to expand the characterization capabilities of these microscopes. By utilizing a rigid test probe, the TriboScope removes the intrinsic limitations, variability, and complexity associated with cantilever-based measurements to deliver quantitative and repeatable mechanical and tribological characterization over nanometer-to-micrometer length scales.

Quantitative
rigid-probe characterization
Removes the uncertainties and complexities intrinsically caused by cantilever-based nanoindentation testing techniques.
Proprietary
capacitive transducer technology
Provides superior control over the nanoindentation process and delivers industry-leading force and displacement noise floors.
Intuitive
mechanical interface
Streamlines integration with popular commercially available AFMs, including Bruker’s Dimension Icon, Dimension Edge, and MultiMode 8 systems.

Cechy charakterystyczne

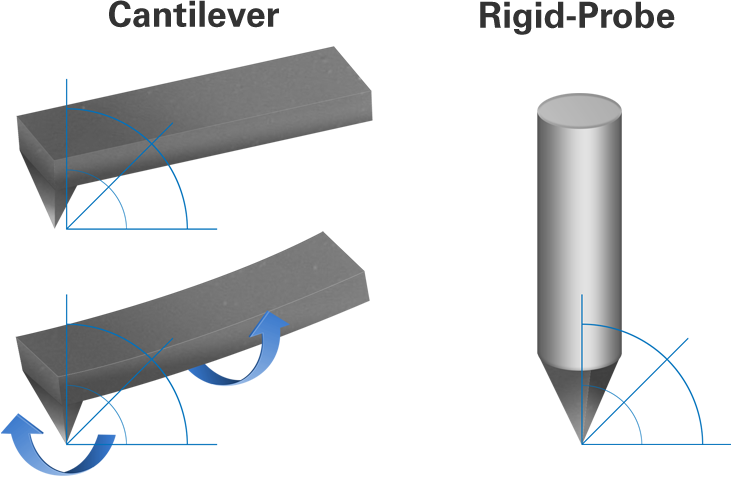

The Rigid-Probe Advantage

Most AFMs utilize a compliant cantilever to conduct mechanical or tribological testing, posing significant challenges in separating a cantilever’s flexural and rotational stiffness from the material’s response to applied stress. The TriboScope utilizes a rigid test probe assembly, allowing direct control and measurement of applied force and displacement during the test.

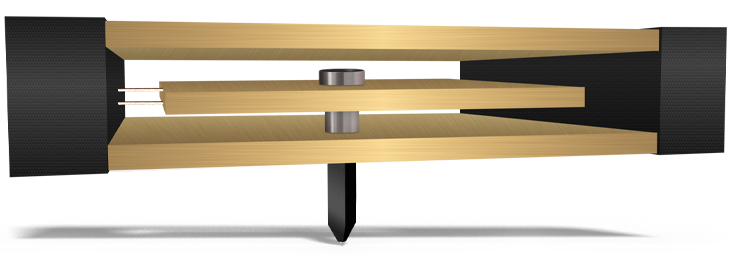

Proprietary Electrostatic Force Actuation

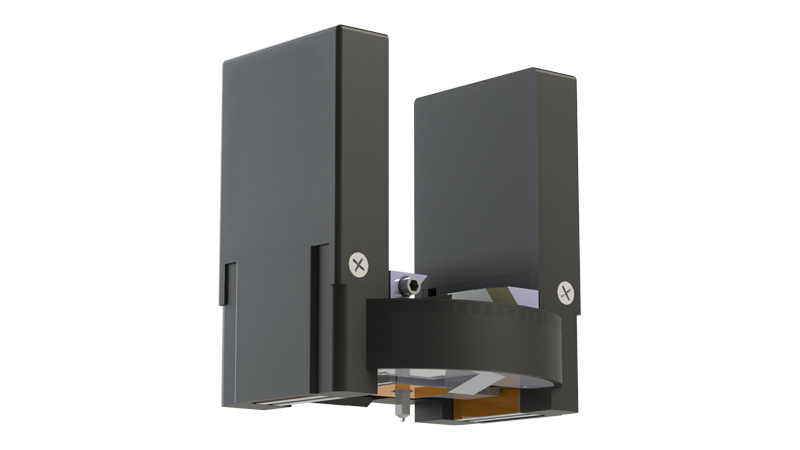

The TriboScope utilizes proprietary electrostatic force actuation and capacitive displacement sensing transducer technology to deliver industry-leading noise floors and low thermal drift for characterizing properties to the bottom of the nanoscale.

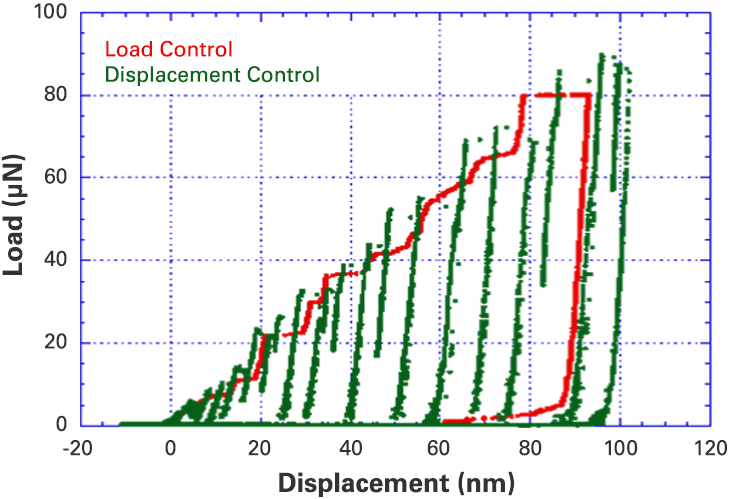

Force and Displacement Feedback Control

The TriboScope operates under closed-loop force control or displacement control. Utilizing a 78 kHz feedback loop rate, the TriboScope can respond to fast material deformation transient events and faithfully reproduce the test function defined by the operator.
