XFlash & eFlash Detectors

Customer's Favourite Choice: XFlash FlatQUAD

New Detector! XFlash 6T-100 oval

New Detector! XFlash 6-100 oval

XFlash EDS Detectors

The XFlash 6-10 detector

XFlash 6-10 detector

The core piece of this latest generation X-ray detector is a silicon chip that functions according to the drift chamber principle.

Подробнее

The XFlash® 6-30 detector

XFlash 6-30 detector

The XFlash 6-30 combines excellent energy resolution with the larger solid angle of a 30 mm² active area chip.

Подробнее

The XFlash 6-60 detetctor

XFlash 6-60 detector

The Large Area SDD for Nano-Analysis

Подробнее

The XFlash 6-100 detetctor

XFlash 6-100 detector

Very special situations require very special detectors. The XFlash 6-100 is made for such situations, where limited signal is available.

Подробнее

The XFlash 6T-30 detector

XFlash 6T-30 detector

The XFlash 6T-30 is the detector for S/TEM with the best energy resolution. Due to its small diameter (slim-line design) it is also particularly well suited for TEM-EDS retrofits on older TEMs.

Подробнее

The XFlash 6T-60 detector endcap and shutter

XFlash 6T-60 detector

The medium active area 60 mm² chip mounted in a slim-line detector finger provides a large solid angle and high take-off angle

Подробнее

eFlash EBSD Detectors

eFlash HD for high detail and high resolution patterns.

eFlash HD

With a native CCD resolution of almost 2 Megapixels (1600 x 1200 pixels) and a state of the art camera optics for minimized distortions, the new eFlash HD detector provides high definition Kikuchi patterns that display finest details.

Подробнее

eFlash FS for high sensitivity and throughput.

eFlash FS

The new EBSD detector eFlash FS has been designed for maximum sensitivity to allow highspeed EBSD measurements without compromising data quality – even on challenging applications like deformed or lightweight materials.

Подробнее

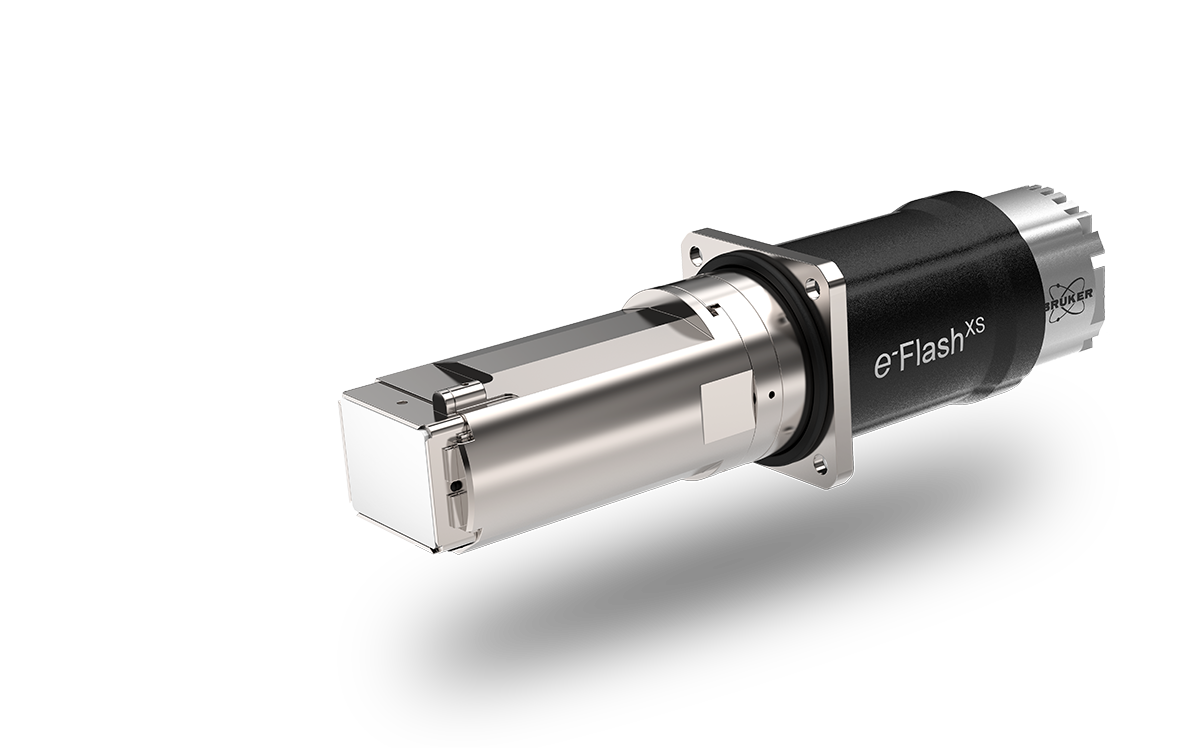

eFlash XS

eFlash XS

New eFlash XS, the most reliable and most affordable EBSD detector ever

Подробнее
