Iron Ore Exploration and Production

The iron ore industry is dedicated to safety and environmental protection while maintaining profitability. Explore Bruker’s full range of analytical solutions to support iron ore from exploration to remediation and from the mine face through beneficiation.

Introduction

Proactive Analytical Solutions for the Entire Iron Ore Value Chain

The iron ore industry is dedicated to safety and environmental protection while maintaining profitability. Iron ore mining is highly competitive with a continuous focus on delivering value through efficiency. Explore Bruker’s full range of analytical solutions to support iron ore from exploration to remediation and from the mine face through beneficiation.

Core Scanning and Field Labs

Collecting Data in the Field with Portable and Handheld XRF

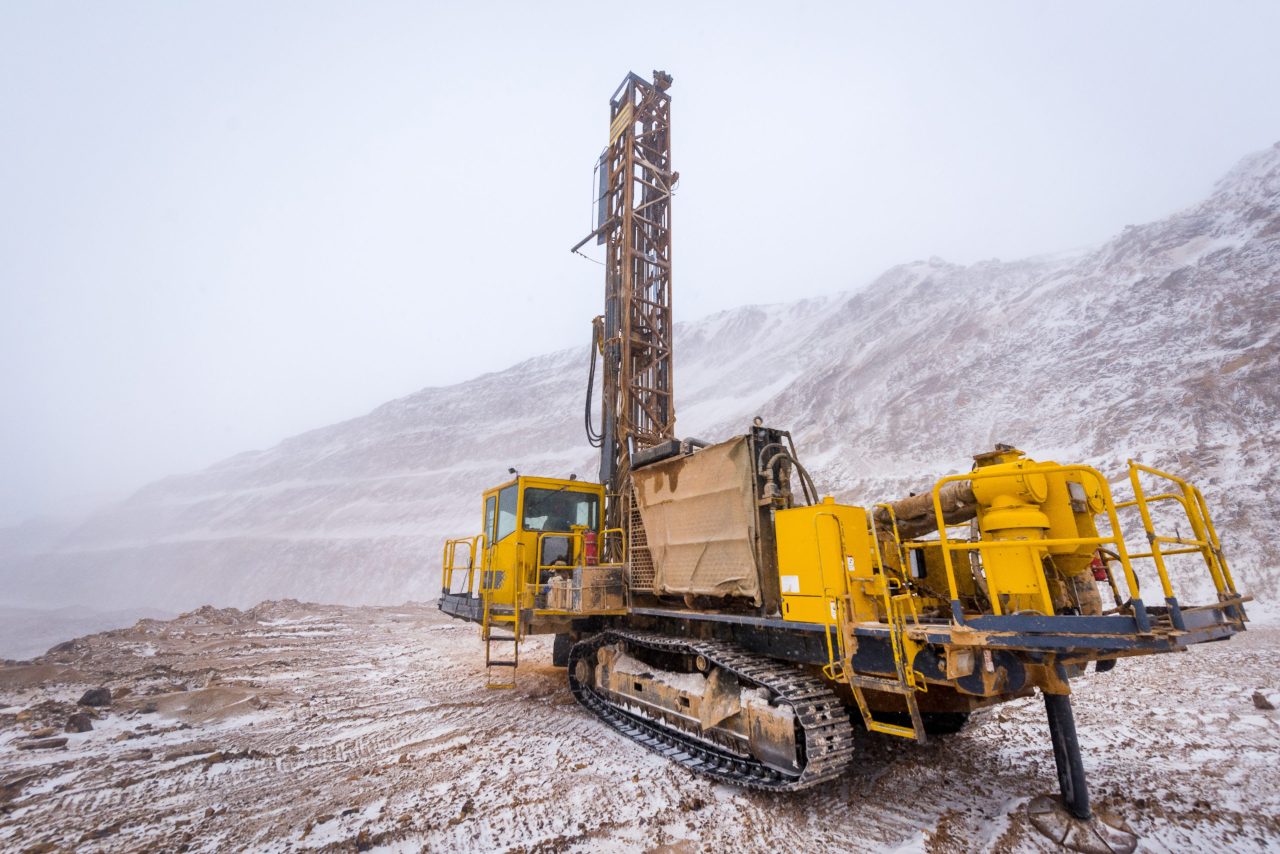

Iron ore exploration relies on preliminary grade assignment and preliminary assessment of penalty elements. Most exploration is near-mine brownfield exploration or reassessment of historic resources to identify high-grade drilling targets. Bruker’s field portable solutions provide more information to exploration teams, quicker. This enables the targeting of exploration activities with more data. For example:

  • Core scanning with the S1 TITAN is a fast and non-destructive technique for to assess elemental variations and assign preliminary cutoff grade delineations for core. Learn more about core scanning.

  • The CTX or S2 PUMA are ED-XRF that can be deployed in the field or in field-adjacent laboratories. The S6 Jaguar is a benchtop WD-XRF providing the highest quality elements results from XRF in a compact package. Learn more about geochemistry with XRF.

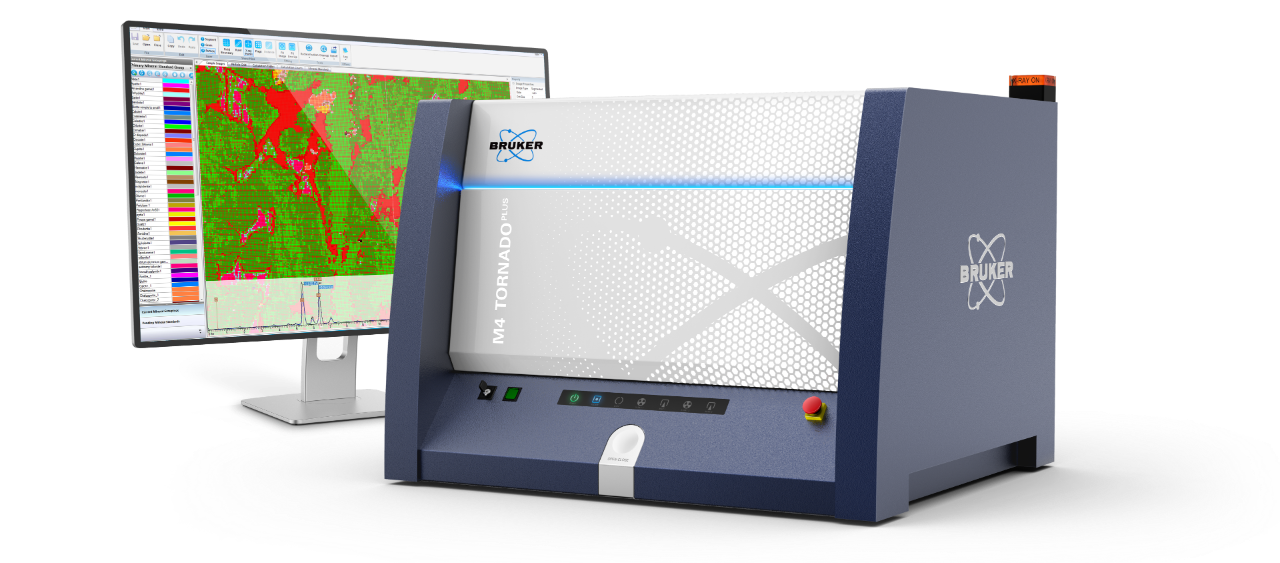

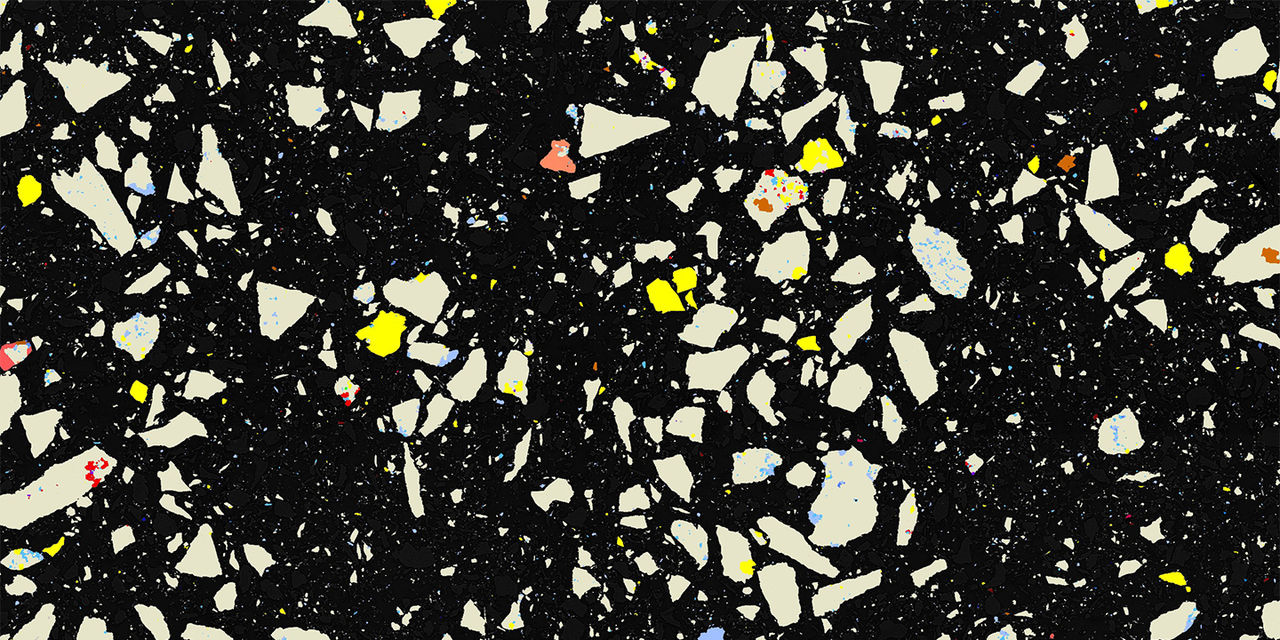

  • Automated mineralogy can be deployed on-site or in field-adjacent laboratories with AMICS on a compact or desktop SEM. Learn more about process mineralogy.

Grade Control

Grade Control for Iron Ore

Robust grade control is critical for realizing efficiencies in mining operation and processing for iron ore. The efficient and accurate measurement of elemental and mineral constituents of ore is required for blending and sorting workflows. Innovative placement of grade control operations may realize the benefits of predictive models of upgradability. Mineral textural information from automated mineralogy is critical for optimizing the commutation circuit of an iron mine. Bruker’s experts have helped mine planners, geologists, geometallurgists, and engineers realize real process and quality control improvements.

Explore XRF Options

S1 TITAN 800 Portable XRF Portability and power define the S1 TITAN, with a rugged case, Titan Detector Shield™ and GeoExploration calibration. Portable XRF is ideal for on-site analysis, exploration, and core scanning.
CTX  Countertop XRF  The CTX is a rugged and portable single-sample countertop XRF with battery backup, safety interlocked lid, Titan Detector Shield™ and push-button operation that is ideal for quick-look grade control and process control.
S2 PUMA Benchtop ED-XRF The S2 PUMA Series 2 is the standard for laboratory ED-XRF analysis, equipped with the intuitive TouchControl™ interface and XY robotic multi-sample or carousel sample changer.
S6 JAGUAR Benchtop Sequential WD-XRF The S6 JAGUAR provides WD-XRF performance in a compact package ideal for any laboratory analysis.
S8 TIGER Sequential WD-XRF  The S8 TIGER Series 2 sequential WDXRF provides outstanding superior analytical performance for the most demanding mineral and mining applications.

Penalty Elements

Analysis of Penalty Elements with Fused Beads

Elements other than iron (Fe) dilute the grade of ore and are penalized at the smelter. For example, phosphorous (P) or sulfur (S) in iron ore can cause brittleness in high concentrations. Silica (Si) and aluminum (Al) can change the molten properties of iron and impede the smelting process. X-ray fluorescence (XRF) is an effective tool in determining penalty elements in all phases of iron ore mining, from the pit to the smelter. Preparing samples as fused beads eliminates the mineralogical effects of samples and enables a more accurate comparison of samples.

Online Solutions

Automated and Custom Solutions

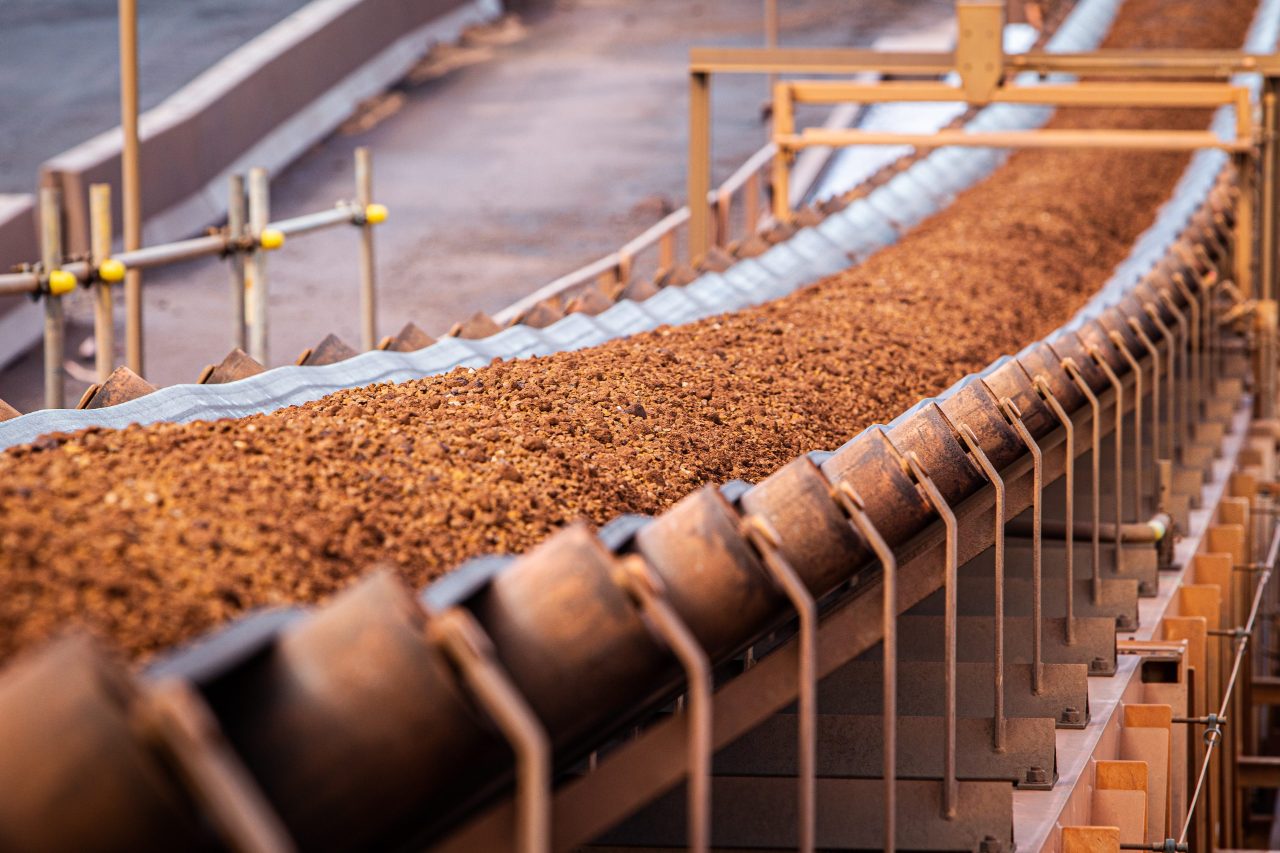

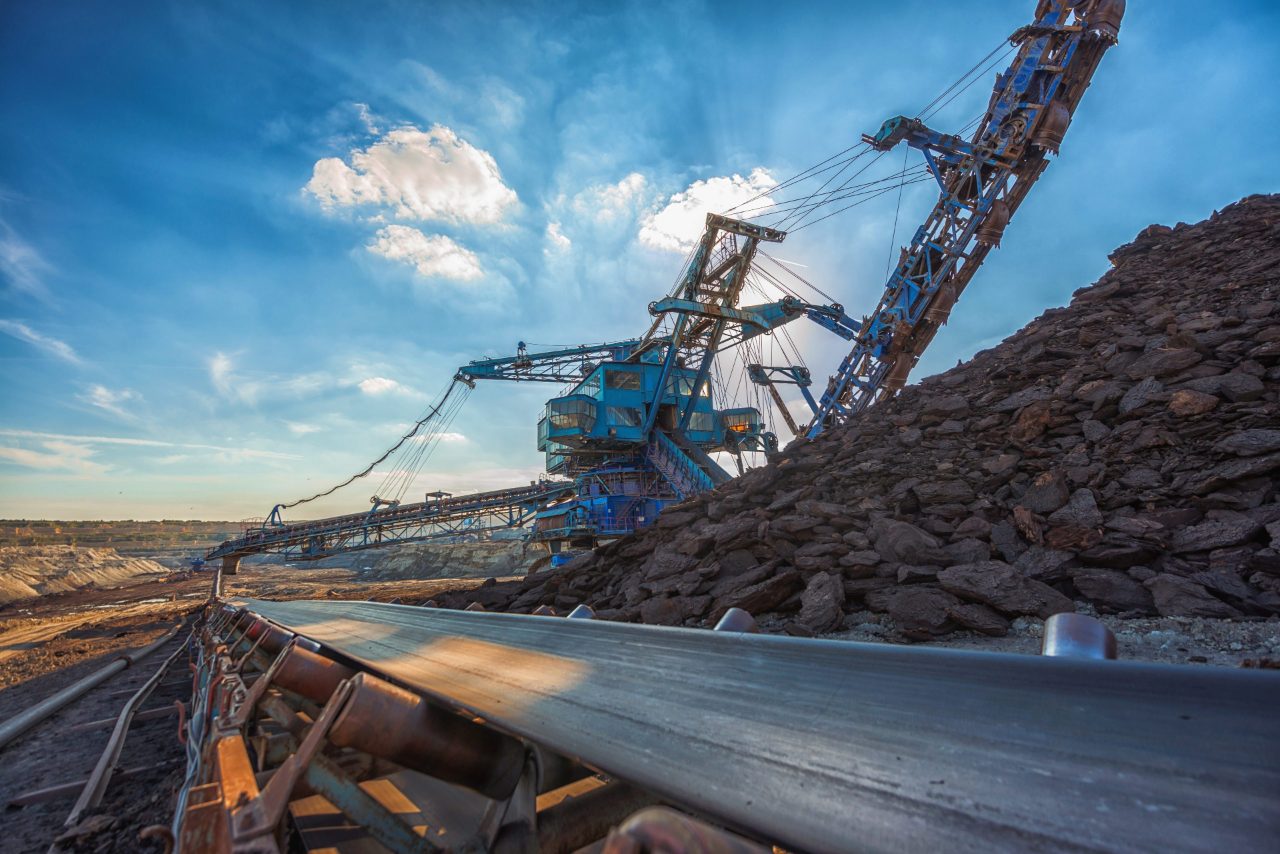

Systems integration of scientific instrumentation into online and inline processes for iron ore requires a components partner that understand both the operating environment and analytical challenges of the segment. Bruker is that partner. Bruker is a trusted partner providing x-ray and optical components for automated sample processing and analysis, conveyer belt analysis, custom instrumentation, and unique solutions. Bruker has partnered with companies of all sizes, from startups to the world’s largest systems integrators, to make visionary workflows and unique analysis become a reality. Contact Bruker’s development experts to discuss your project today.

Environmental Monitoring

Trace Element and Heavy Metals Monitoring in Mine Effluent

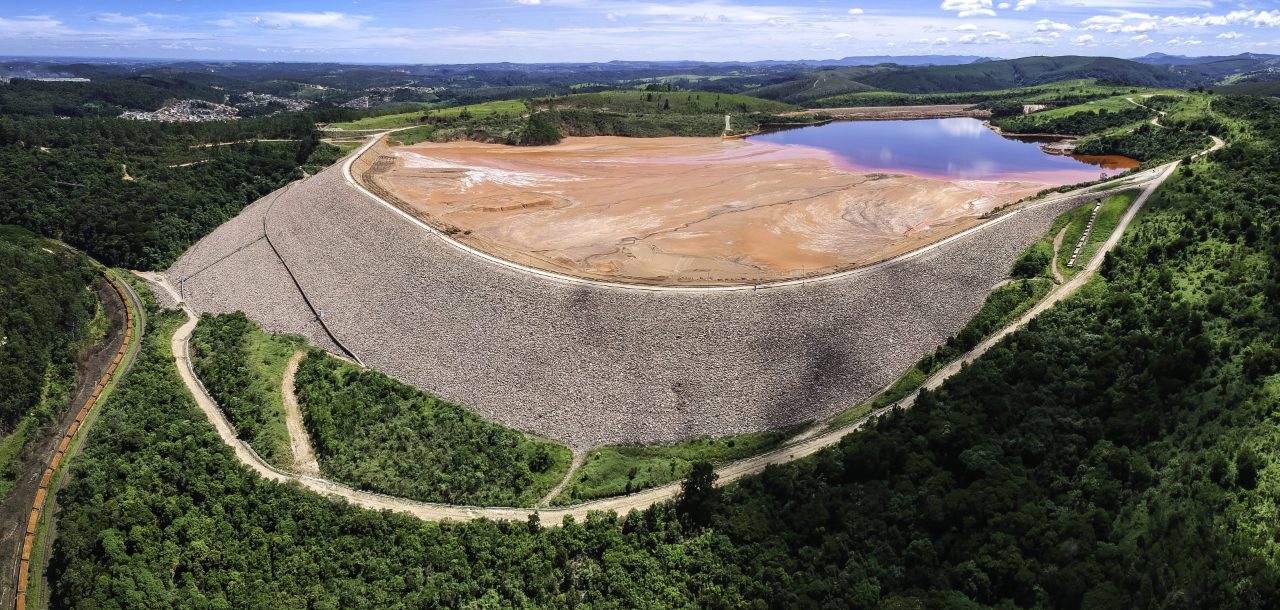

Monitoring for heavy metals in mine effluent and discharged waters has become a core competency for iron ore mines globally. Water passing through waste and tailings piles will accumulate copper, iron, manganese, lead, selenium, and zinc. Total reflection X-ray fluorescence (TXRF) is an emerging tool for the identification and quantification of trace elements and heavy metals for mining operations and remediation. This innovative technology can provide accurate quantification in the PPB range for many elements with simple sample preparation, no dilution, and no consumable gasses.

Related Products

Related Products

CTX BenchTop / CounterTop XRF spectrometer.

CTX BenchTop XRF spectrometer.

Portable BenchTop XRF ideal for quick analysis of small or prepared samples: only 14 cm wide, light-weight (<7 kg), safety-interlocked, interactive touchscreen, and battery operated.
D2 相位器

D2 PHASER

全球最佳台式衍射仪。所有人员均可快速上手、随时随地对任何样品进行X射线衍射分析。
S1 TITAN Hamdheld XRF Analyzer

S1 TITAN Handheld XRF Analyzer

Handheld XRF ideal for taking the lab to the sample for fast analysis of any material: small, light-weight (<1.5 kg with battery), preloaded with point-and-shoot calibrations of choice.
S2 科迪亚克

S2 KODIAK

采矿作业现场实时的多元素分析仪 24/7全天候自动运行,免维护。立即获得分析结果,并轻松集成到工厂的控制系统。
S2 PICOFOX TXRF 光谱仪

S2 PICOFOX

可运输的 TXRF 光谱仪,用于痕量微量元素(<ppb)准确定量分析,可在 ng 或 μg 范围内对极少量样品进行分析:运营成本低、节能环保
S2 PUMA Series 2

S2 PUMA

适合在过程控制现场或中心实验室,分析各种样品中碳(C)到镅(Am)之间元素的含量。凭借独特的HighSense探测器,分析研发部门的复杂样品也不在话下。
S4 T 星 TXRF 光谱仪

S4 T STAR

用于痕量超微量(< ppb)元素定量分析的全反射X射线光谱仪(TXRF),可对pg、ng 或 μg 范围内的极少量样品量进行分析:低运营成本、无需气体等耗材、绿色环保
S8 LION

S8 LION

多道WDXRF光谱仪,适合水泥、矿产、采矿和金属行业的过程和质量控制的快速分析。
S8 老虎系列 2

S8 TIGER Series 2

满足工业和研究领域各种元素分析需求,多功能的分析工具。
