Materials Science Research

Additive Manufacturing

We support engineers and researchers from around the world to bring additive manufacturing from prototyping to mass production by using our systems for dimensional, chemical, and mechanical testing and analysis.

Solutions and Support for Industry-Leading Manufacturing Processes

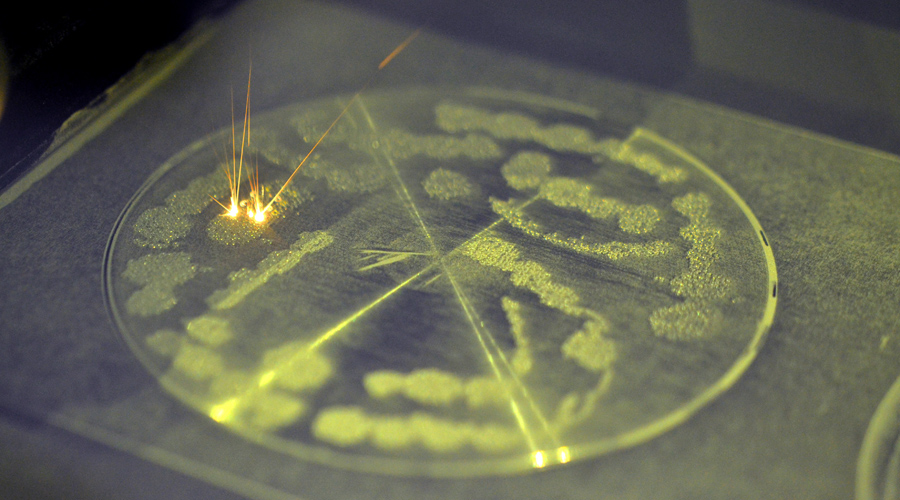

Automotive and aerospace companies are in a constant race to increase energy efficiency and design flexibility, lower production and service costs and reduce manufacturing cycle time while ensuring the reliability and safety of their products. For many of these companies, additive manufacturing (AM) looks like the solution to all of these market demands.  Most rapidly emerging and popular  AM processes for metals are based on a powder bed: a metallic powder is formed into a solid state through melting or sintering. Common melting techniques consist of scanning a laser (Direct Laser Selective Melting, DLSM) or electron beam (Electron Beam Melting - EBM) across subsequent layers of metal powder in a “printer’s” powder bed to build up a final, finished AM part. The technique is also known as powder bed fusion or LPBF. Another AM technology is vat photopolymerization making up close to 50% of the material use in AM. Vat Photopolymerization is a process in which liquid photopolymer in a vat is selectively cured by light-activated polymerization.

However, many companies find that the move from prototyping to production with AM is challenging. To get defect-free, repeatable results requires process characterization and QA/QC controls that are unique to AM. Bruker has unmatched experience and breadth of solutions to help maximize AM Profits.

Correctly specifying and monitoring the chemical and mechanical properties of raw materials used in the AM process is absolutely critical. Inclusions, voids, porosity variation as well as changes is mechanical properties (hardness, brittleness) can result from improper alloy/mixture use and contamination of incoming, stored and recycled powders.

The AM printing process itself, if not properly characterized, can also be a source of a wide range of defects. An optimum balance needs to be found between scanning speed, laser or electron beam power, beam incident angle, thermal load on the surrounding powder bed, powder particle size, and bed thickness. For vat photopolymerization, not only the mixture composition but also the curing kinetics of the photopolymer is of great importance for the result. To characterize the AM process and monitor witness samples during production and after finishing steps (heat treatment-HIP, milling and grinding/polishing, UV curing), Bruker offers an unmatched suite of products for dimensional, chemical and mechanical testing and analysis.

Related Products

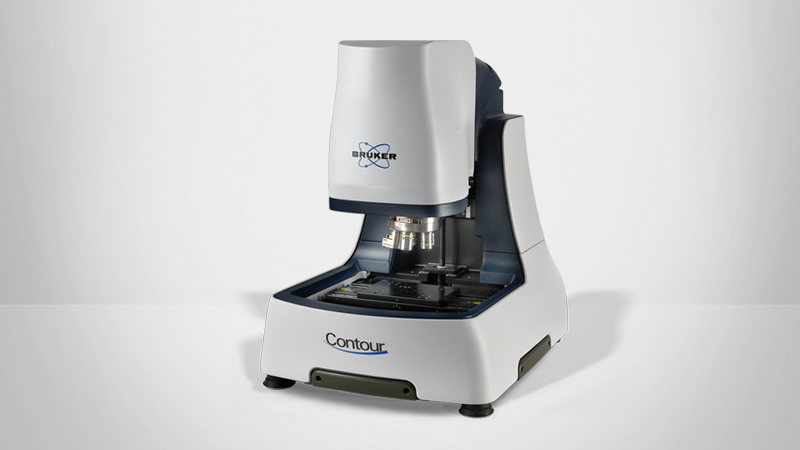

3D Optical Profilers

Bruker’s industry-leading 3D Optical Profilers provide fast, non-contact surface profiling of nano- to micron scale surface features. Surface cracks, pits, voids and other defects can be characterized so that process issues can be traced down and eliminated. Surface roughness (Sa), waviness and texture that impact both down-stream processing steps and product performancecan be monitored easily.


Contamination of parts during printing can be an underappreciated issue. Diffusible hydrogen must be controlled to prevent hydrogen embrittlement of the printed part and residual argon content in the printed parts can impact down- stream processing steps. Bruker’s Inert Gas Fusion – Mass Spectrometry systems are critical tools to monitor H and Ar in your process.

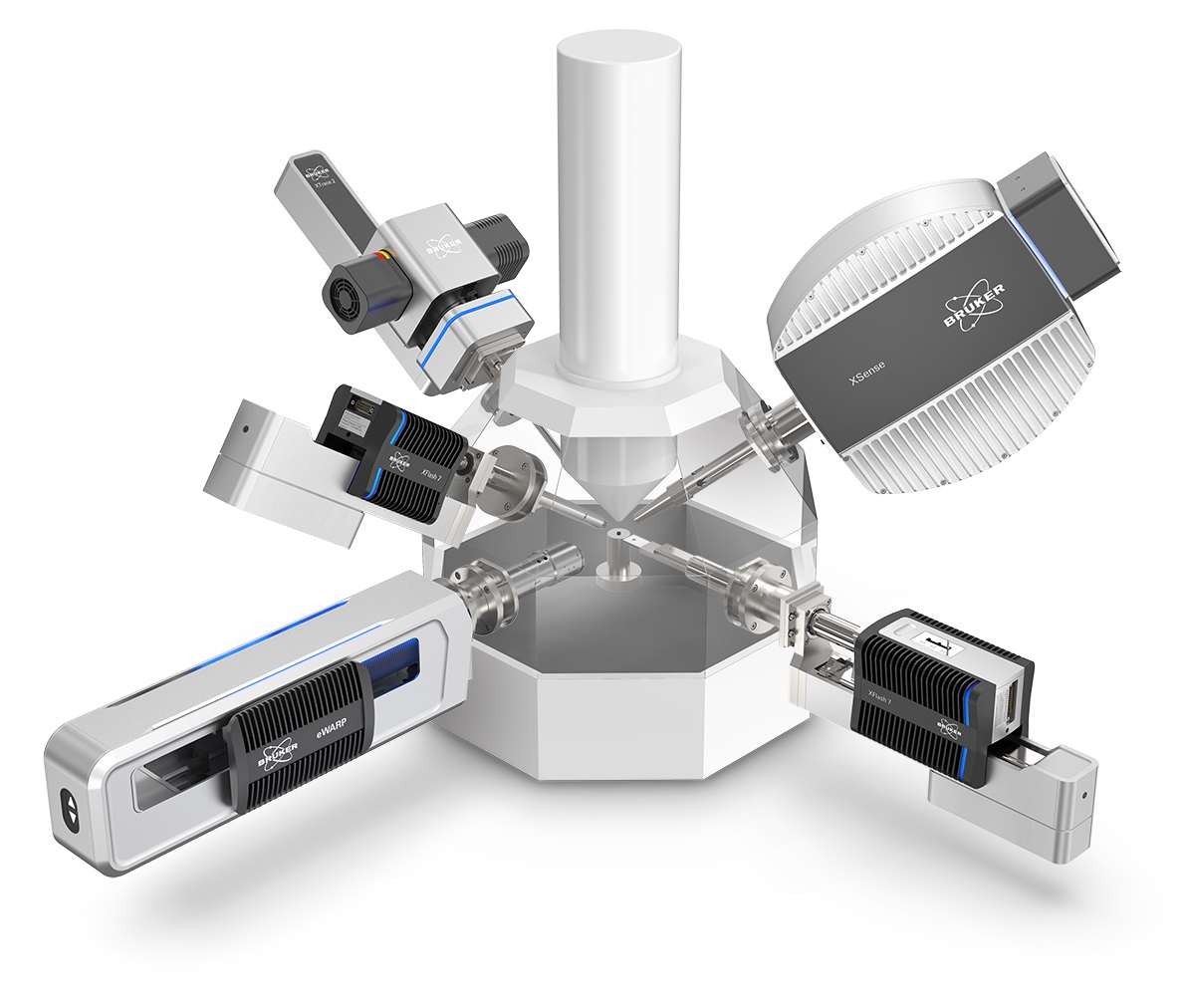

To extend your SEM/TEM analytical power, Bruker’s electron microscope analyzers EDS, WDS, EBSD and Micro-XRF on SEM offer the most comprehensive compositional and structural analysis of materials, including analytical software for advanced materials research, process development and failure analysis.

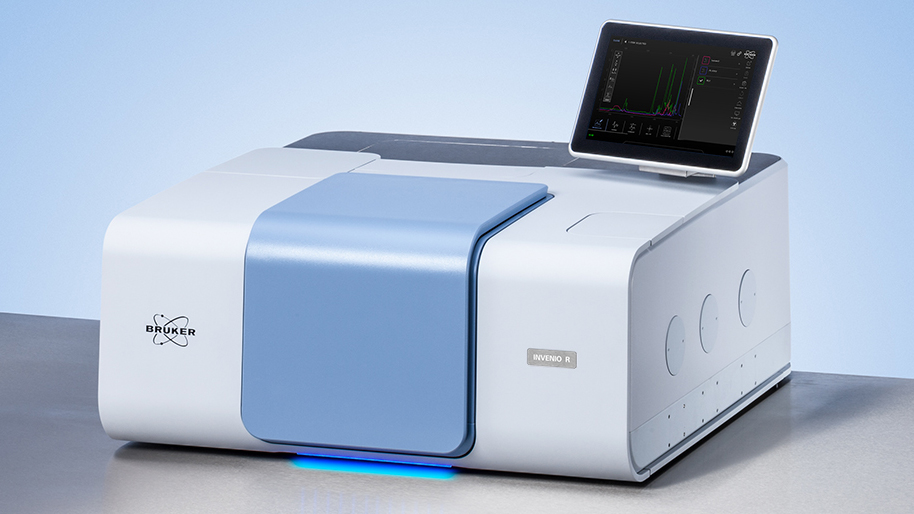

FT-IR Spectrometer Platform: INVENIO

For QA/QC controls and for characterization of the raw materials used in the AM process INVENIO FT-IR spectrometer is a useful tool. The FT-IR technique can help to improve the AM process, e.g. by monitoring UV curing process during vat photopolymerization or in combination with thermogravimetric analysis for process optimization of polymer 3D printing.

Mechanical Testers

To ensure the finished parts can meet the rigorous demands of Automotive and Aerospace applications, Bruker’s Universal Mechanical Testers offer a comprehensive solution for compressive tribology. With a broad range of application modules, you can characterize printed and finished part hardness, wear rates & resistance and sensitivity to friction and load to ensure process integrity and identify issues.

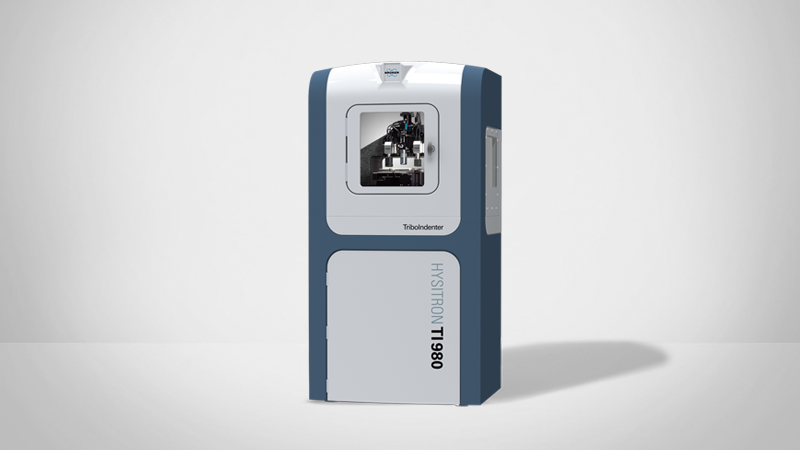

For additive manufacturing process development and failure analysis, Bruker mechanical testing and portfolio of analysis tools provide unique insight. Our nanoindentation systems provide precise, high-resolution microstructure property analysis and quantitatively map mechanical properties as a function of processing parameters.

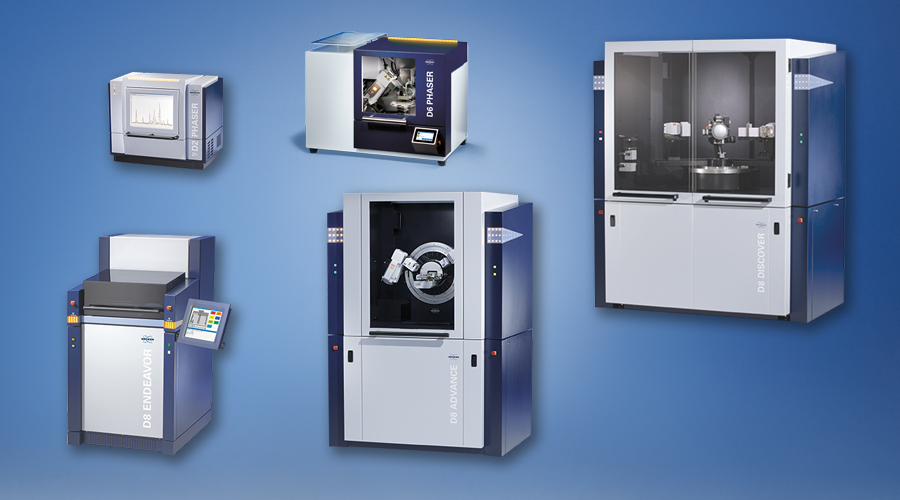

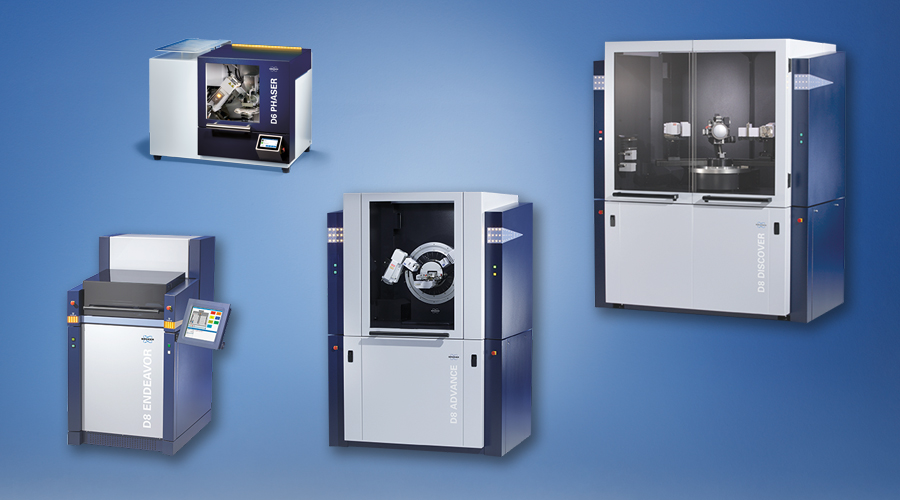

X-Ray Diffraction (XRD) analyzers are widely used in AM process development to identify causes of dimensional instability like austenitic phase transformations in ferrous alloys and to identify sources of residual stress. Compressive surface stress indicates long lifespan and tensile surface stress can lead to premature part failure.

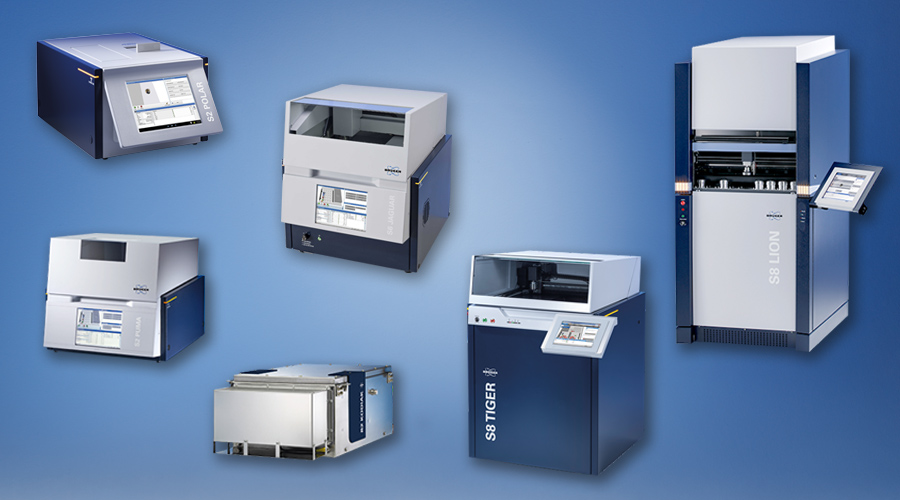

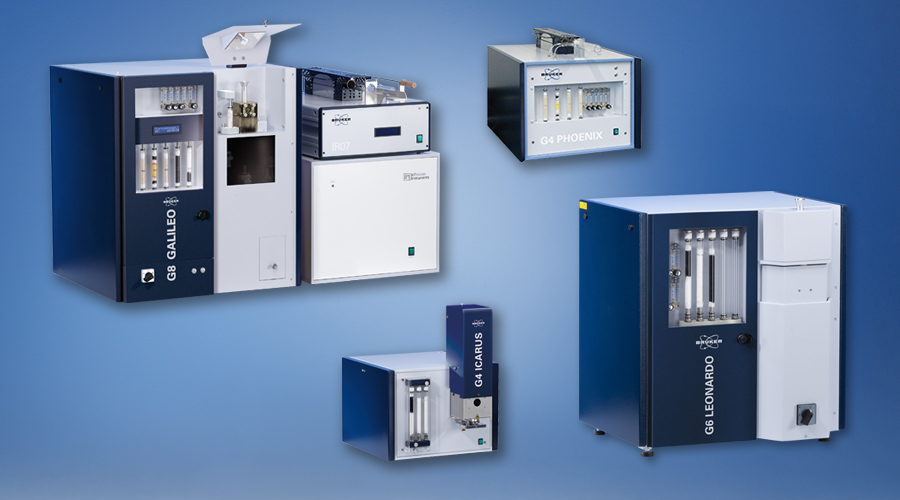

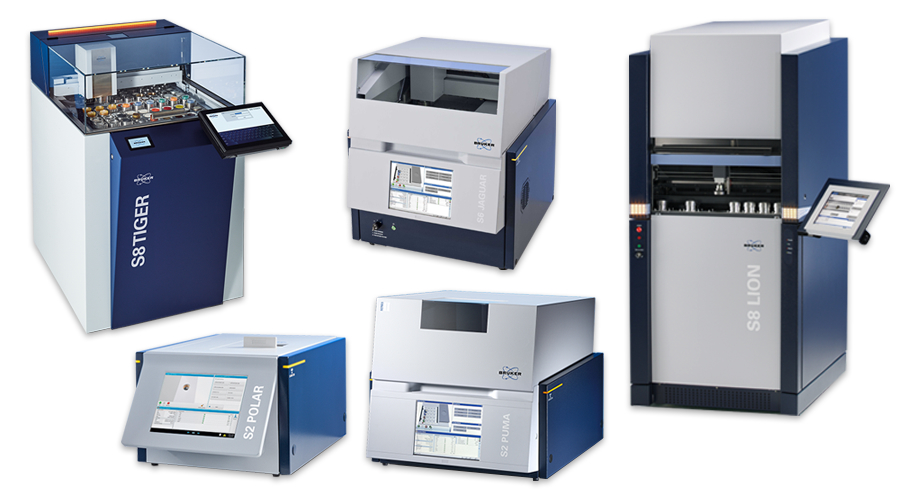

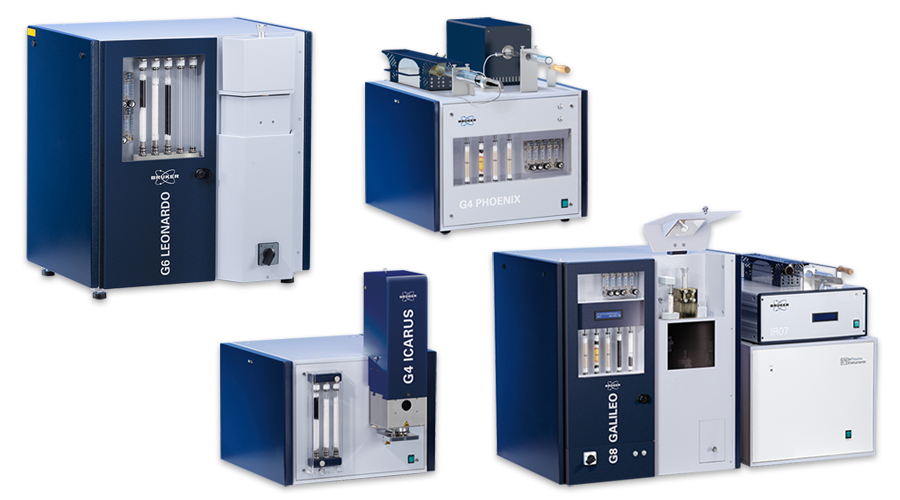

Bruker has an extensive portfolio of equipment to for characterization and QA/QC of metal powders including: X-Ray Fluorescence (XRF) analyzers, Combustion Gas Analyzers (C, S) and Inert Gas Fusion – Mass Spectrometry (O, N, H, Ar) instruments.

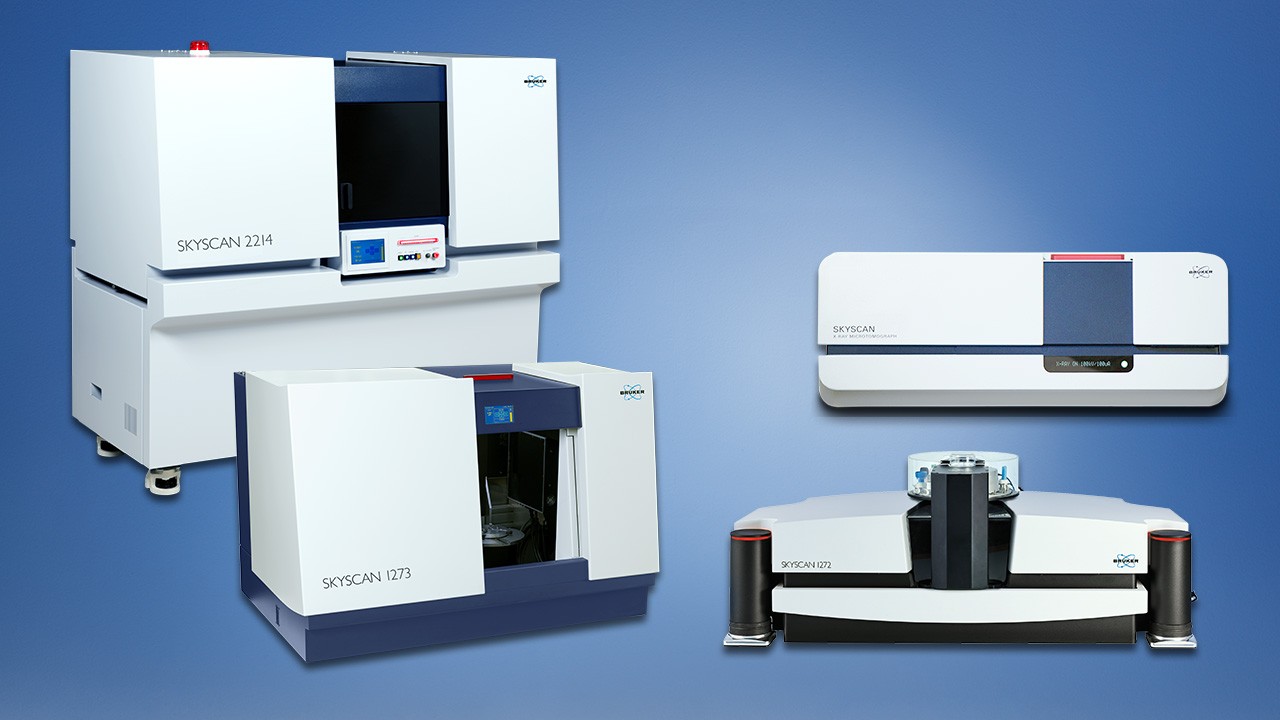

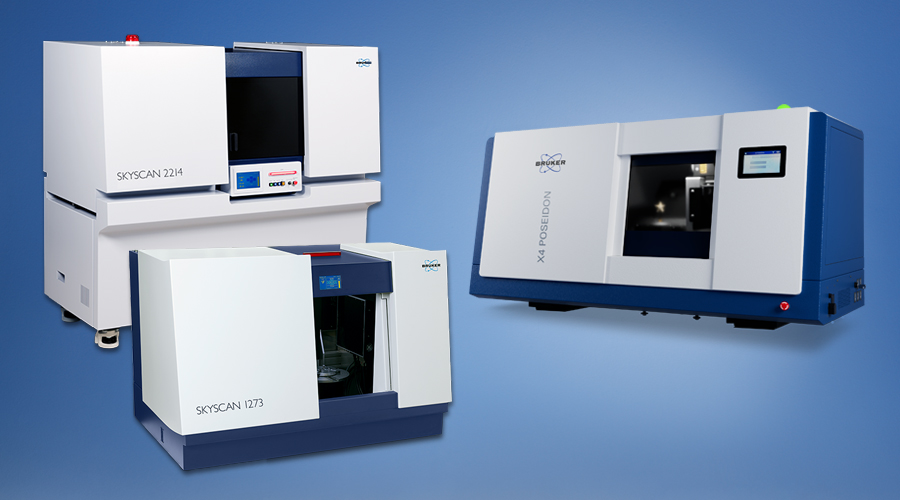

Critical to the structural integrity, performance and fit of the final AM produced part are its bulk and surface properties. 3D X-ray Microscopes (XRM) provide quantitative identification of volume porosity, inclusions, cracks and printing defects in the bulk or on the surface and highlight differences between the as-printed part, post-machined part and the CAD model at internal and external surfaces.
