Oil and Gas: Exploration Upstream

Produced Water, EH&S and Environmental Analysis

Environmental stewardship has evolved into a core mission for operators. Working in remote or inaccessible environments with requirements for frequent monitoring means special analytical challenges. Bruker’s rugged solutions are ready to meet the challenge.

EH&S in Oil and Gas

Bruker is Your Partner for Environmental, Health and Safety Detection and Analysis

Safety and environmental responsibility have become core missions of the oil and gas industry, particularly as exploration and production explores new frontiers. Key missions include the protection of life and property, human health and safety, spill protection and response, and managing discharge. Bruker provides a wide range of tools used to manage environmental and safety detection requirements from offshore to unconventional.

Oil in Water

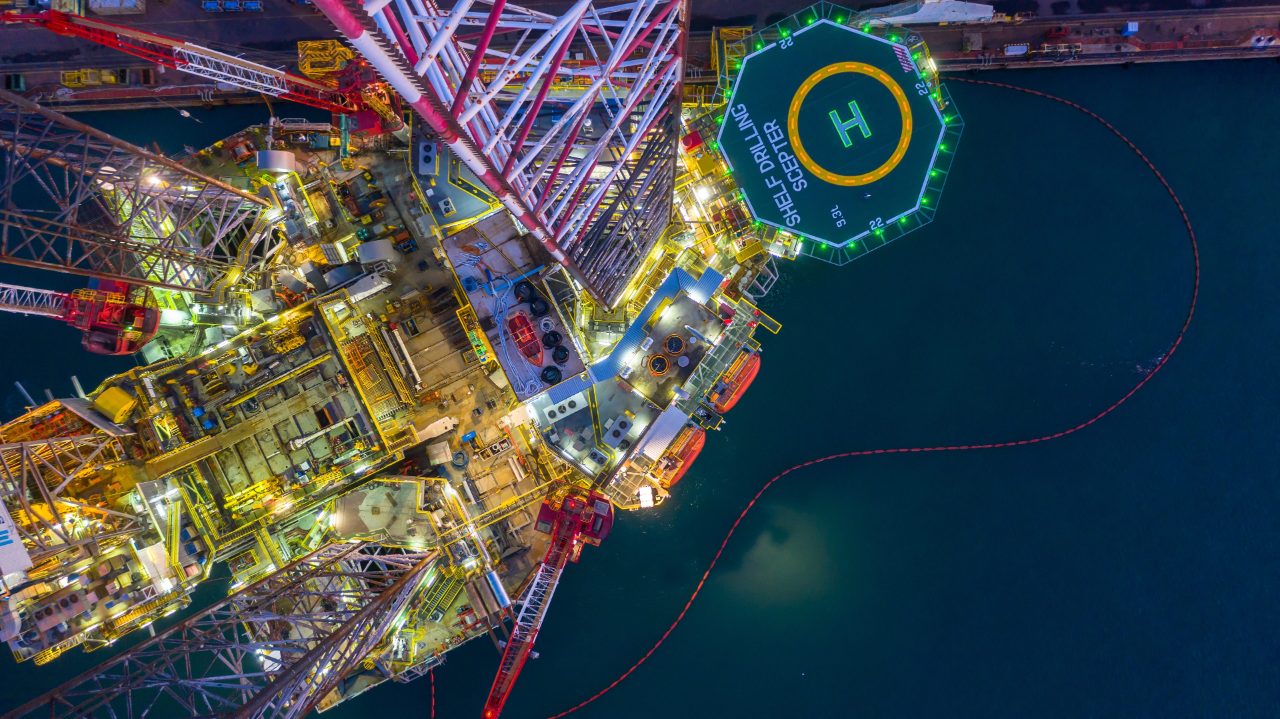

Oil in Water Analysis for Off-Shore Platforms

Wherever oil and grease are handled industrially and on a larger scale (e.g. offshore oil-rigs) their discharge into the environment should be tested. To analyze and extract oil and grease from water highly flammable solvents such as pentane or hexane are used in current standard methodology.  

Of course, the use of these solvents on oil platforms is not permitted and the water samples must be transferred to a mainland lab. While infrared spectroscopy is widely used for traditional oil content determination, it also offers the opportunity to avoid costly and time-consuming transportation by using solid phase extraction. 

The ASTM approved” Standard test method for solvent-free membrane recoverable oil and grease by Infrared determination D7575” is such a convenient alternative. In short, this method quantifies oil and grease by processing a water sample through an oil capturing membrane and analyzing the membrane – no hazardous or flammable solvents are involved. 

By doing this, the analysis time including sampling and measurement is reduced to less than 15 minutes for most samples. Using parallel processing allows for processing many samples simultaneously. 

Infrastructure Protection and HAZMAT

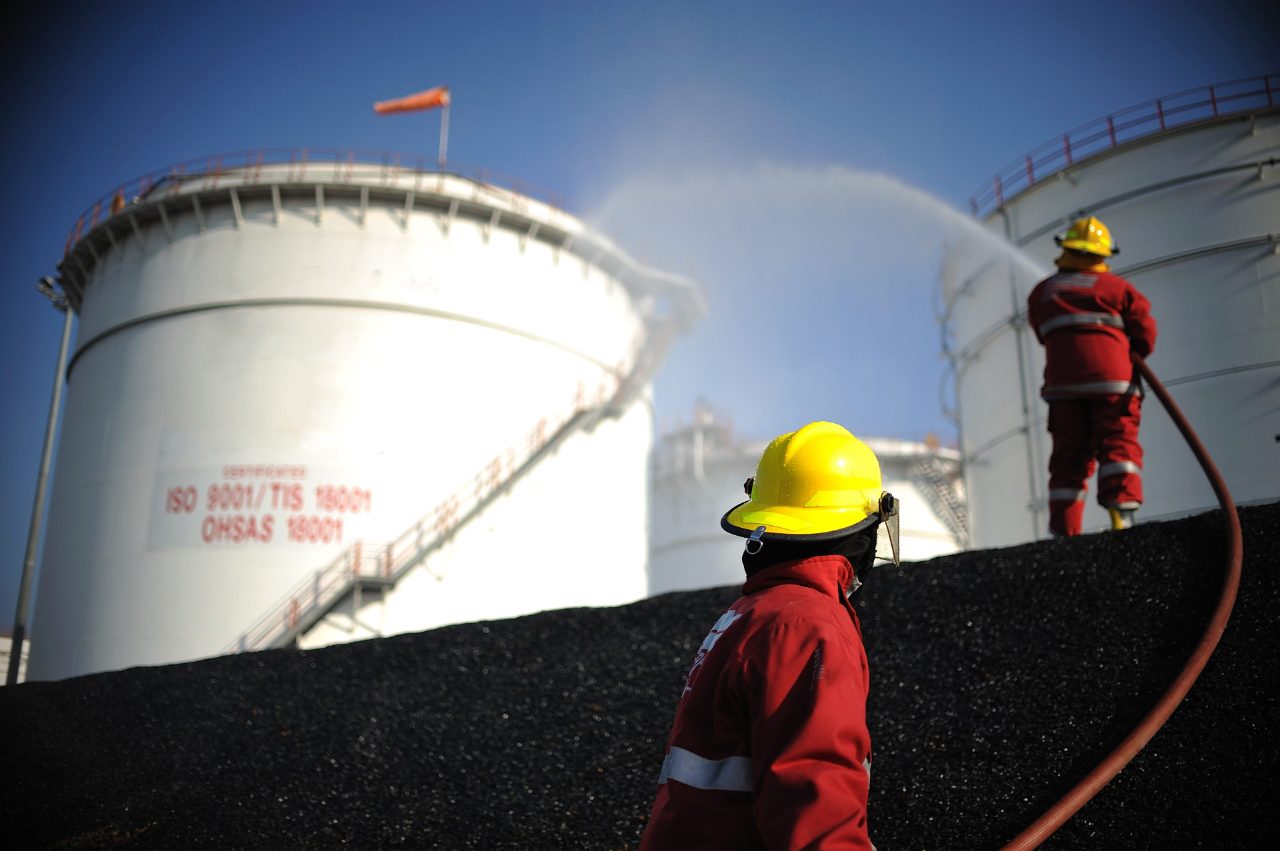

Infrastructure Protection and HAZMAT

The detection, identification, and mitigation of hazardous materials and explosives has become mission critical for oil and gas operators.   Oil and gas production and processing is critical infrastructure and has a requirement for rapid response to incidents, including substance identification. Bruker’s environmental and detection solutions provide workflow-centric and easy to use HAZMAT and CBRNE hazard detectors and instrumentation.

Positive Material Identification

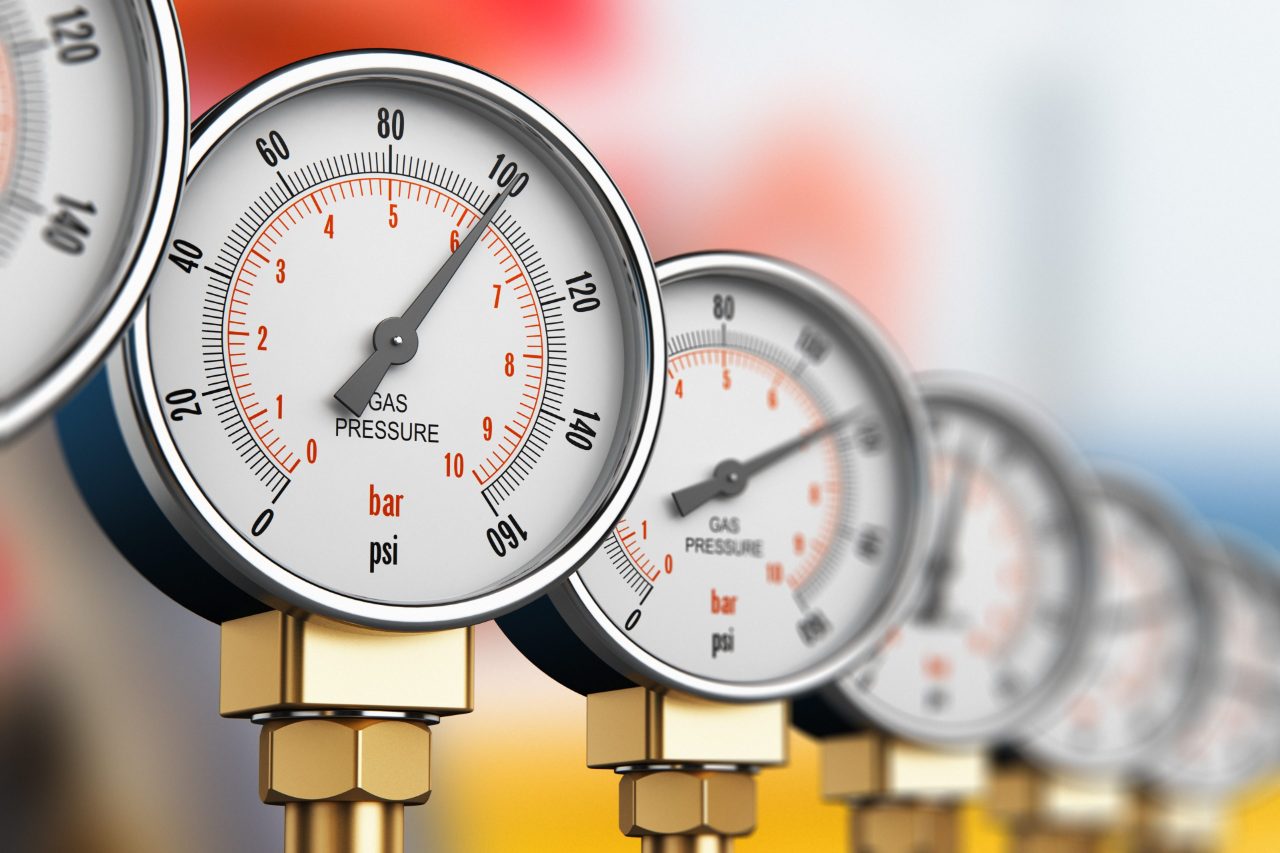

Positive Material Identification

Positive Material Identification (PMI) is the identification of the alloy for mission critical parts. Bruker’s portable XRF (pXRF), optical emission spectroscopy (OES), and laser induced breakdown spectroscopy (LIBS) are used to ensure the correct alloy is installed for high-temperature or high-pressure parts. This critical safety step prevents blowouts, critical failures, and saves lives.

Heavy Elements in Produced Water

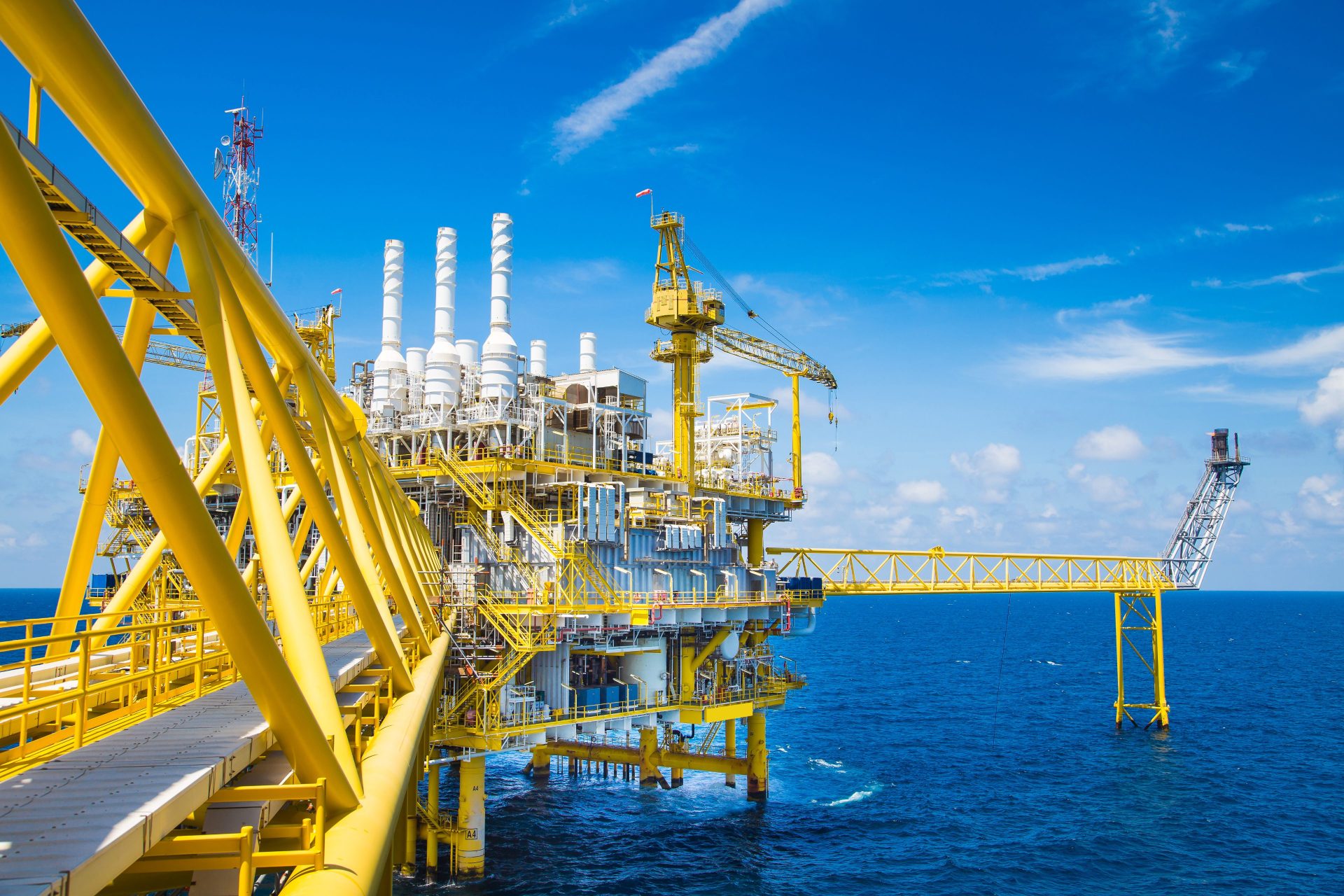

Heavy Elements in Produced Water

Total reflection X-ray fluorescence (TXRF) brings the ability for on-site analysis of heavy elements in water to any location from offshore rigs to a rig-side tailgate. Detection limits down to ppb range can be achieved with no dilution, no consumable gas, and simple sample preparation. TXRF is an ideal method for testing produced water, offshore wastewater, soil and other liquids or dissolved solids for heavy metals like cadmium (Cd), mercury (Hg) and Selenium (Se).

関連製品

Products for Produced Water and Environmental Analysis

G4 ICARUS Series 2

G4 ICARUS Series 2

The combustion analyzer G4 ICARUS Series 2 with HF induction furnace and HighSenseTM detection is the ideal instrument for the rapid and precise carbon and sulfur determination in solids, especially metals and their alloys as well as other inorganic materials like ores, cements, minerals, ceramics, etc.
MATRIX-FオンラインFT-NIR分光計

MATRIX-FオンラインFT-NIR分光計

プロセスのより良い理解と制御のための原子炉およびパイプラインの直接測定のためのオンラインFT-NIR分光計
乳製品アナライザー MPA II

乳製品アナライザー MPA II

生乳から乳製品まで、1台の使いやすいFT-NIRアナライザーで生産チェーンの全範囲を検査できます。
S1 TITAN Hamdheld XRF Analyzer

S1 TITAN Handheld XRF Analyzer

Handheld XRF ideal for taking the lab to the sample for fast analysis of any material: small, light-weight (<1.5 kg with battery), preloaded with point-and-shoot calibrations of choice.
S2 PUMA Series 2

S2 PUMA

炭素 (C) からアメリシウム (Am) までの多元素分析により、生産ラインにおける品質管理や研究所での幅広いアプリケーションに対応します。S2 PUMAは独自のHighSense検出器を備え、研究開発における高度な分析にも応用可能です。
S4 T-STAR TXRF分光計

S4 T-STAR

pg、ngまたはμgの範囲の非常に少ないサンプル量の極微量(サブppb)元素分析のためのハイエンドTXRF分光計:低い操作コスト、"クリーン"な技術
TANGO - フーリエ変換近赤外分光計

TANGO - フーリエ変換近赤外分光計

実績のある技術は、使いやすいタッチスクリーン操作と小さなフットプリントとを組み合わせ、限られたスペースでの設置にも最適です。
