All-in-One Benchtop XRD
It’s all you need
“The D6 PHASER is the base of a new world of XRD solutions with compact size and unparalleled flexibility.”
Frank Burgaezy, President, Bruker AXS
For more than 60 years Bruker has created innovative analytical instruments to support the scientific community as well as users in industry. Our analytical solutions stand for cutting-edge technology and the highest performance. While we are providing top technology for scientists worldwide, over the past decades, we have more and more focused on making the latest analytical methods also accessible to a broader group of users.
At the forefront of this endeavor for accessibility are our benchtop instruments. Although they come with a smaller form factor than our landmark full-size systems, they share with them the same analytical instrument DNA, including the focus on data quality, robust hardware design, and reliable results.

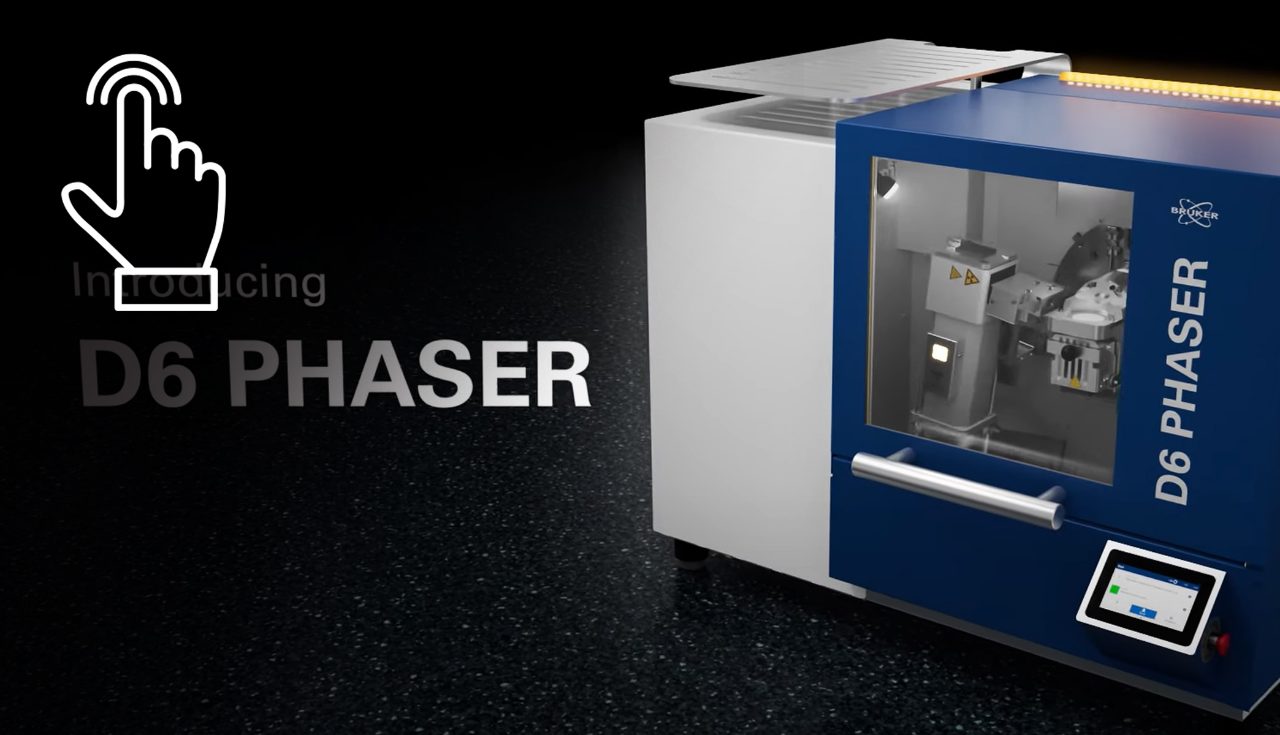

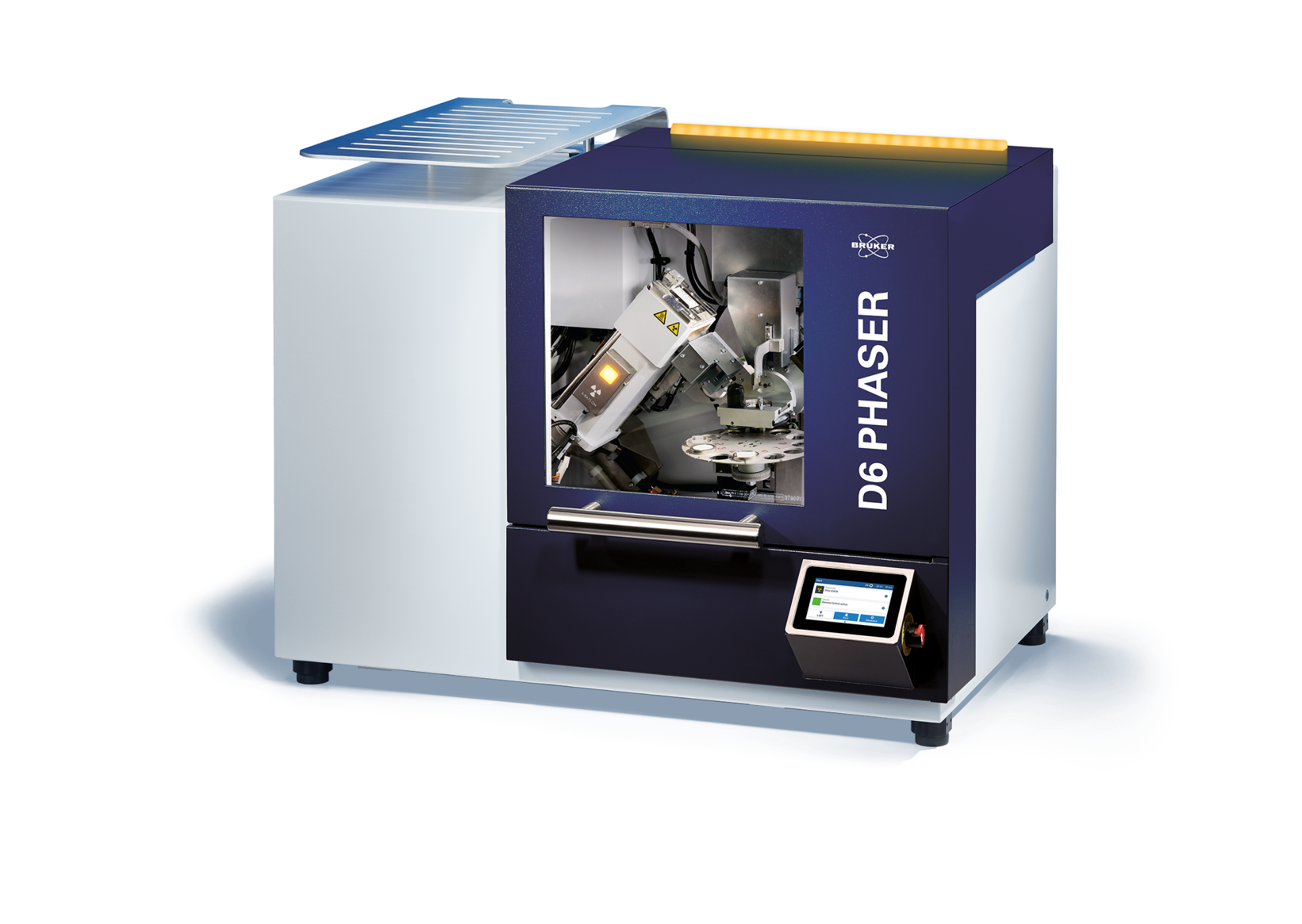

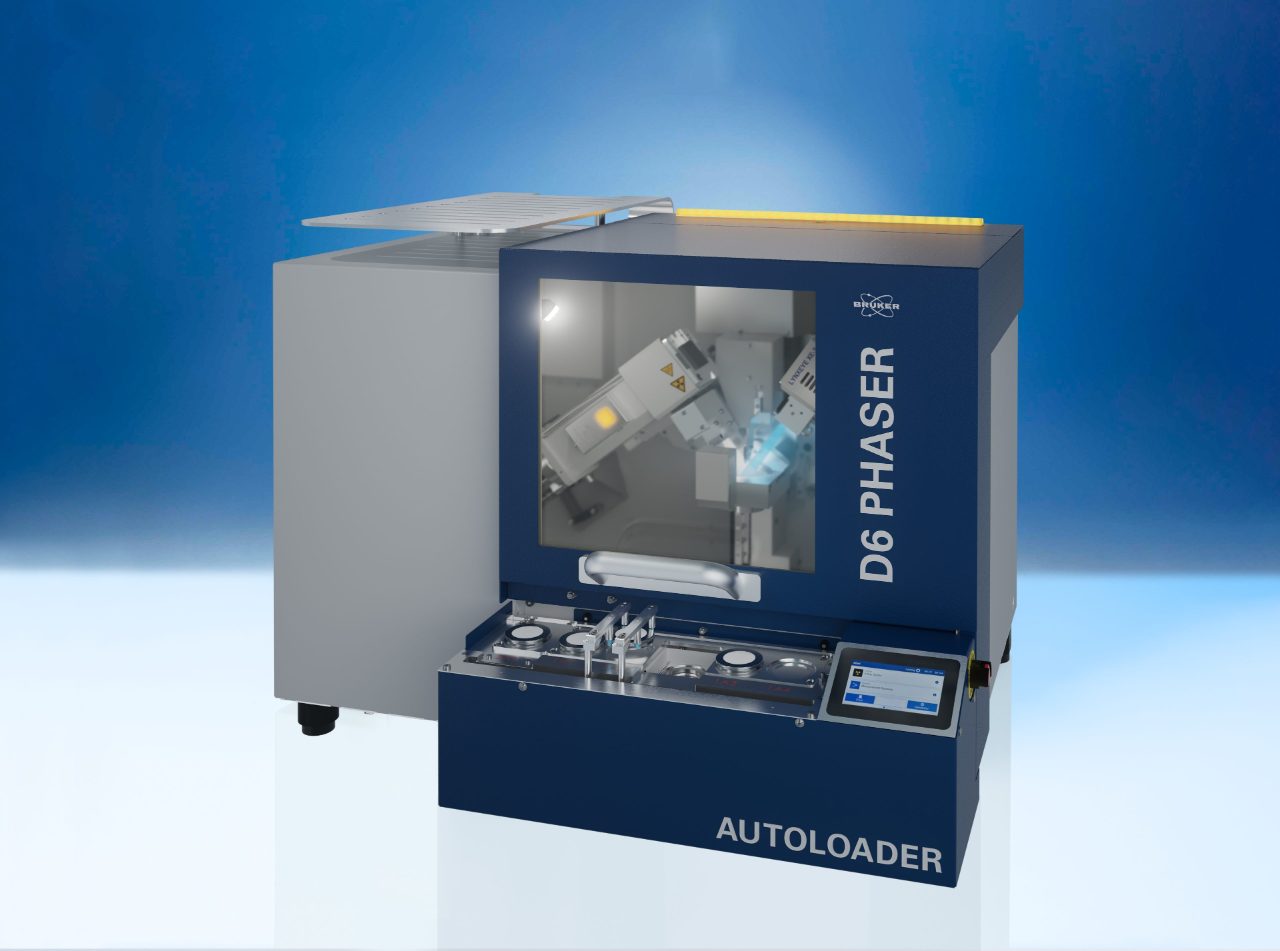

The D6 PHASER is a groundbreaking benchtop XRD platform that combines operability and flexibility. Unlike traditional benchtop instruments, it offers advanced analytical methods beyond powder diffraction. With its wide range of applications, the D6 PHASER opens up new markets and user communities for XRD. Download the brochure to know more.

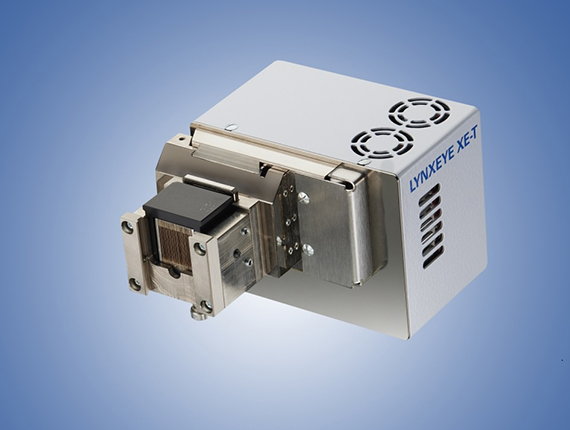

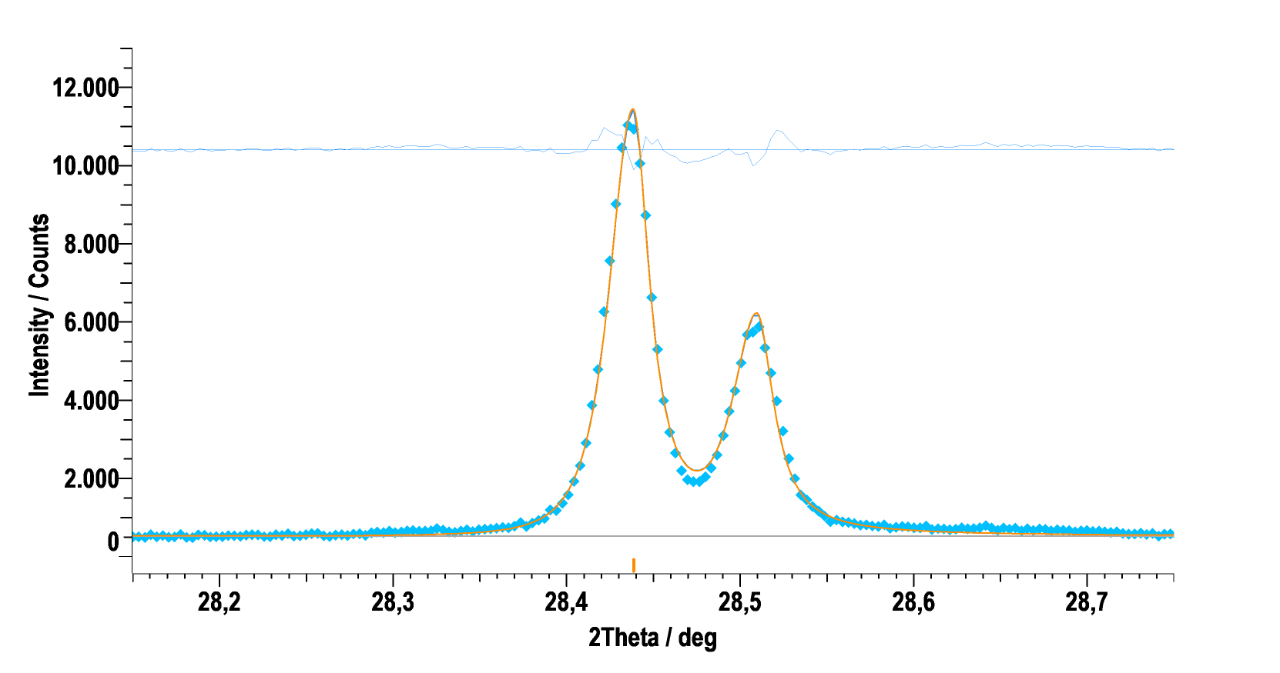

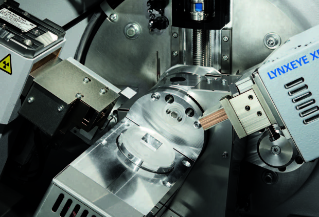

The combination of the highest X-ray source-power on the market, small goniometer radius, the proven LYNXEYE detector family, and tailor-made beam optics outperform many floor-standing systems.
“The platform design of the D6 PHASER allows us to continually push benchtop XRD beyond standard powder diffraction.”
Karsten Knorr, Global Product Manager, D6 PHASER
One of the hallmark features of the D6 PHASER is the ability to adapt the system to a multitude of measurement types beyond basic powder diffraction, making it a truly universal stage for every experiment.
No training is required. The users are guided through analytical methods in an intuitive way based on our easy-to-use software and extensive knowledge of XRD analytical methods, while assisted by affordable, automated accessories.

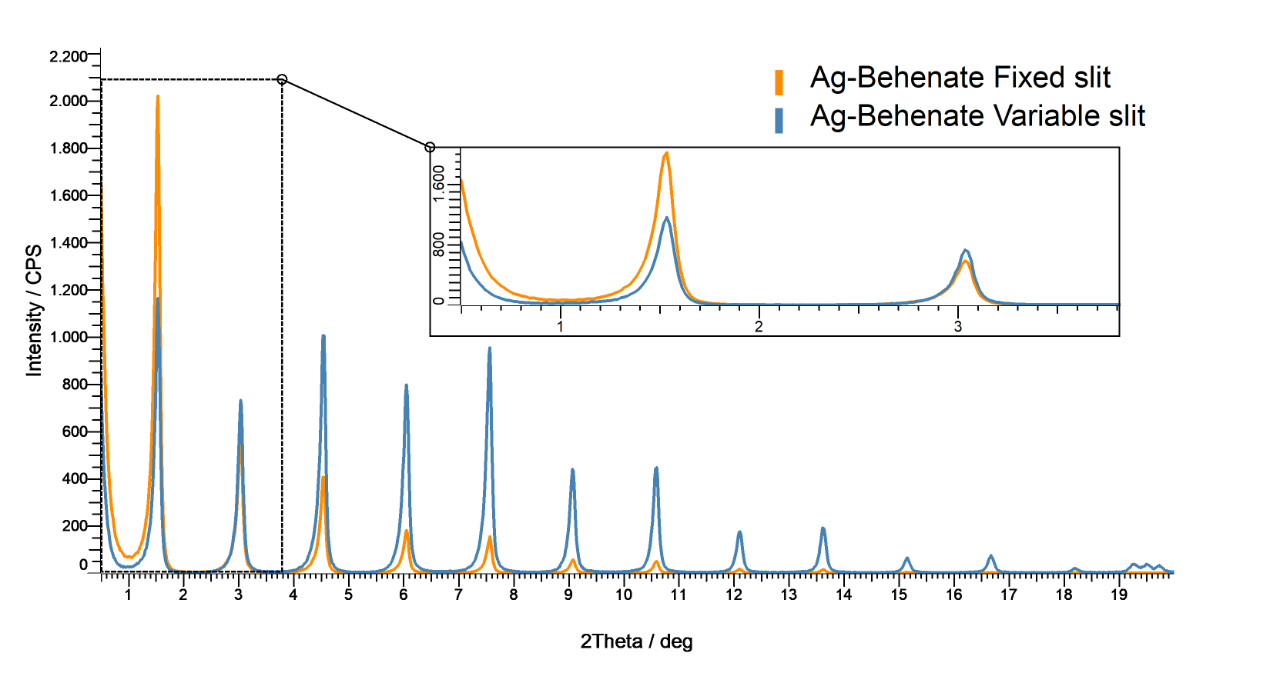

Lowest, Smoothest Background

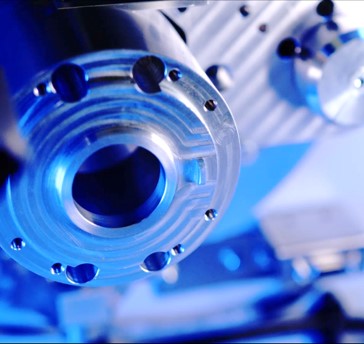

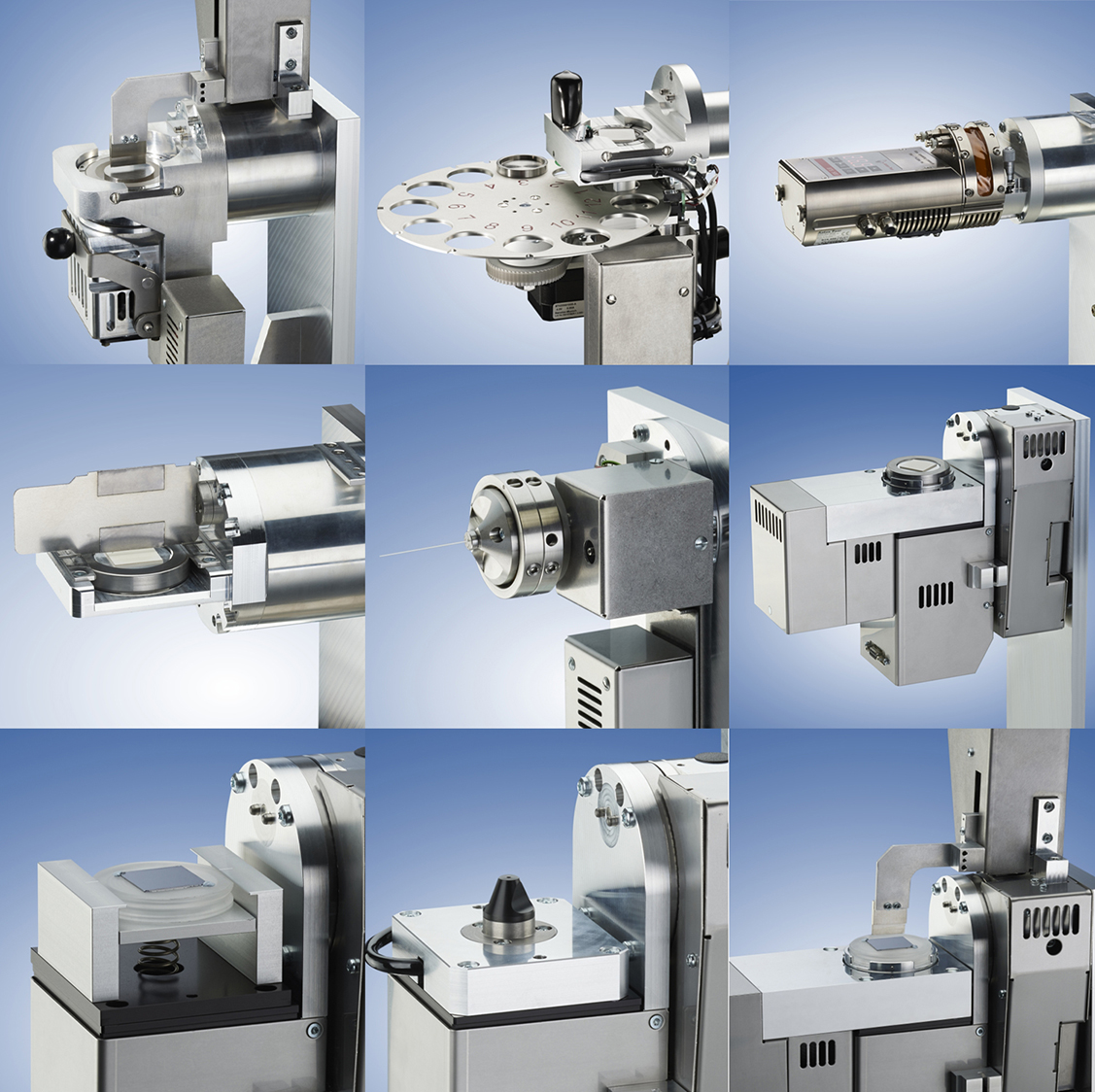

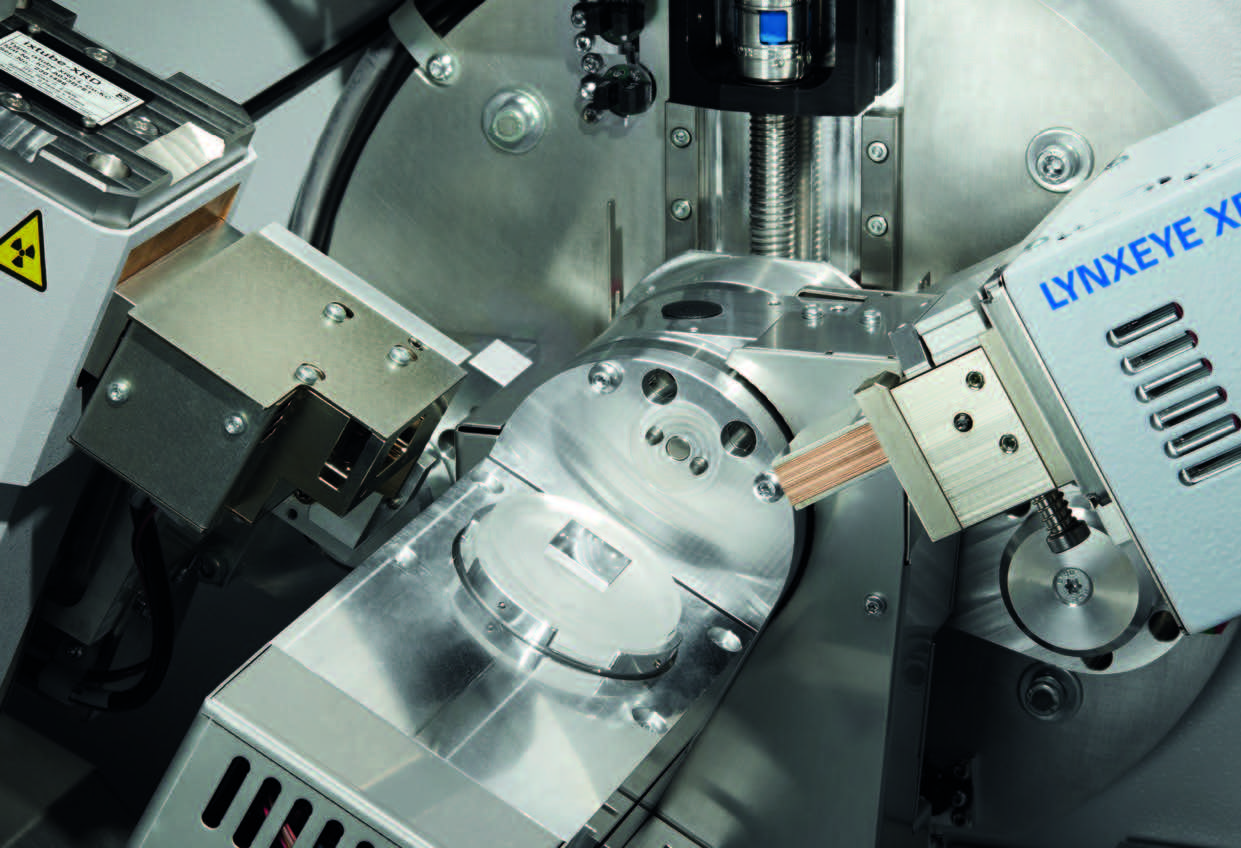

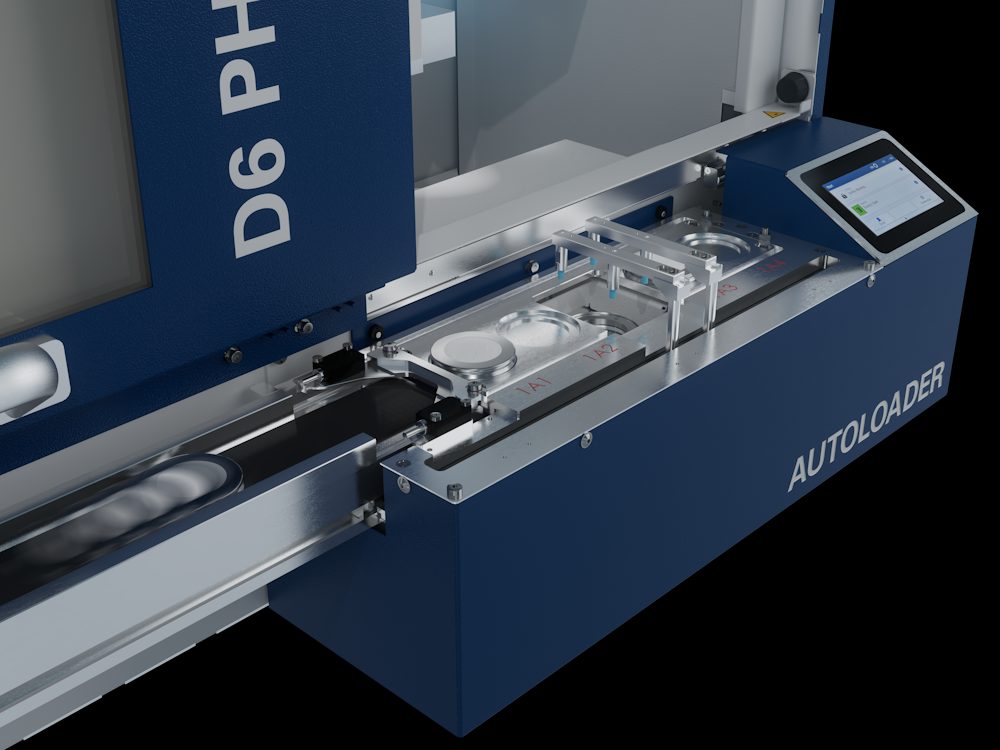

To ensure that the D6 can handle a wide variety of samples and experiments, we not only designed multiple stages and optics, but also an entirely new interface for mechanical and electrical connectivity. This makes it a breeze for users to add and swap stages on their own, giving the D6 PHASER the ability to adapt to a multitude of measurement types beyond basic powder diffraction.

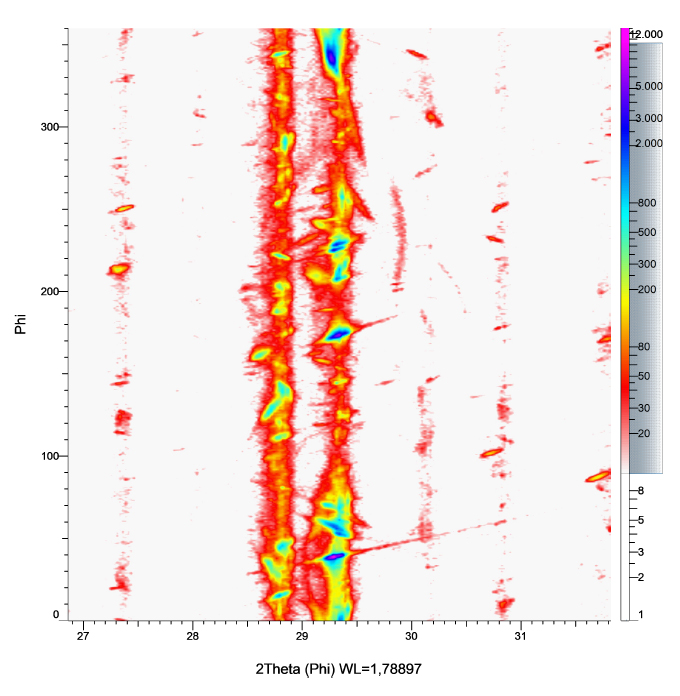

Traditional 2D XRD solutions utilize a very small spot on the sample with a very large detector. This works well for large instruments where space is available. In a benchtop, XRD 2D is used to assess the morphological state of the sample for insights into sample preparation and to associate reflections in phase ID. The D6 PHASER is capable of two forms of 2D diffraction. PHI 1D and the patented BRAGG2D utilize the full beam footprint in combination with any member of the LYNXEYE detector family to create a 2D diffraction image. This mode is available on every D6 PHASER no matter the detector, divergence slit, air scatter solution, or stage.

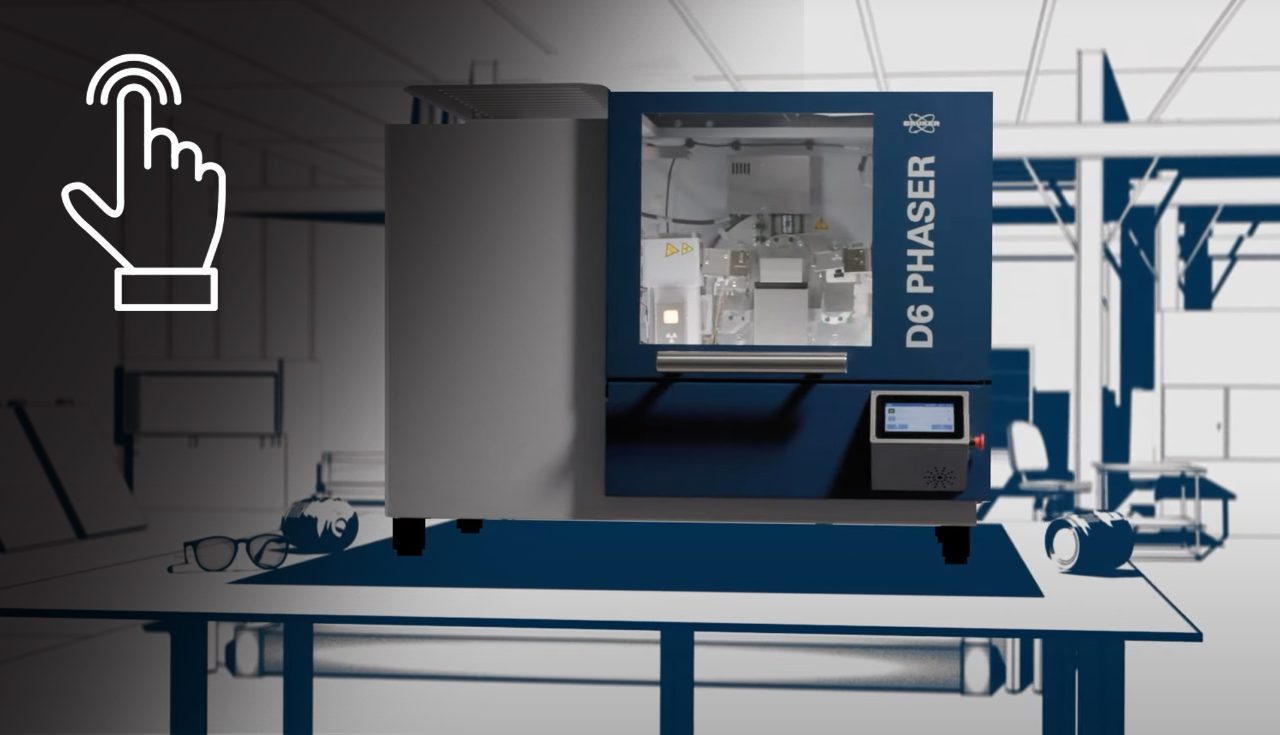

The D6 PHASER is the most powerful and versatile benchtop X-ray diffractometer on the market. The platform design of the D6 PHASER allows us to expand the benchtop concept with more tools and accessories for many years to come. As new technologies are discovered, the backbone systems in the D6 mean that we can create new attachments to extend the D6 PHASER.
Complete guidance and a friendly interface instill user confidence in component changes for optimal instrument utilization so that the instrument can be used to its fullest extent.
XRD for Everyone
XRD is unique in its sensitivity to the fundamental form, not just the elemental identity of a material. As instruments like the D6 PHASER become available, wider adoption of the technique has been seen across markets and scientific disciplines. Obtaining reliable, high-quality XRD results no longer requires years of experience in the technique, allowing users to focus on their analytical area.
XRD for Everything
No matter the sample form, the D6 PHASER can be equipped to measure it. From transmission measurements between foils or in capillaries, to bulk or mounted metallurgical samples to thin films and coatings. Sample holders and stage accessories are both affordable and easy to install, lowering the barrier for adaptation to new sample types.
XRD for Everywhere
Benchtop solutions in the past were limited by their size. Power, versatility, and accessibility all limited the types of measurements that could be performed to classic powder diffraction or limited “advanced” functions. The D6 PHASER was designed to perform a wide variety of measurements while producing uncompromising results.
|Goniometer||Theta / Theta
||Sample is always horizontal and cannot fall off during powder diffraction measurement|

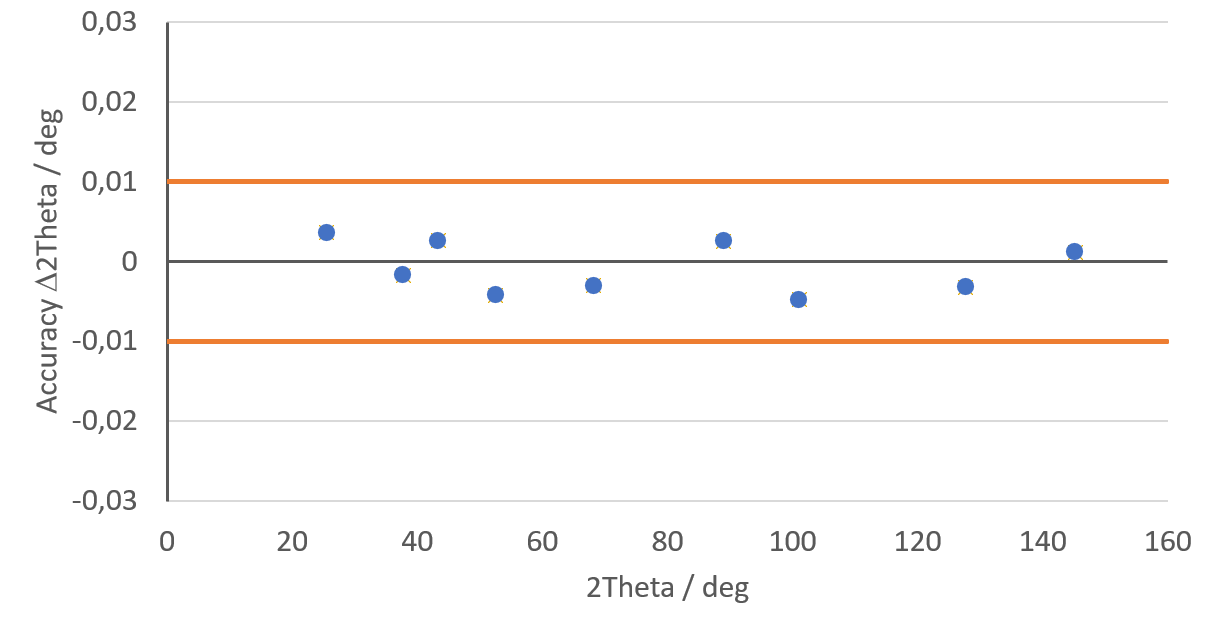

Alignment accuracy guaranteed within ±0.01° 2θ
Traceable by included corundum reference
600 W or 1,200 W
540 W, optional, simplified registration for countries with 30 kV exception regulation
For all generator versions, no water supply needed
(*) Detector guarantee
Si-strip detector with 160 channels
Ultra fast 1D detector (*)
Ultra sensitive, energy dispersive 1D detector (*)
absolutely faultless, no dead strips
|Sample stages||Fix stage||For reflection and foil transmission without sample rotation|
|Rotating single or 12-position||Best sampling statistics, high throughput|
|BTS 150/500||Temperature chambers for powder diffraction|
|Capillary stage||For transmission measurements, rotation for best sampling|
||Omega/z movement with optional attachments for GID/XRR and Stress/Texture analysis
110 - 240 V AC,
200 – 240 V AC
47 - 63 Hz
Up to 600 W X-ray generator power
For 1,200 W X-ray generator
All domestic wall sockets supported

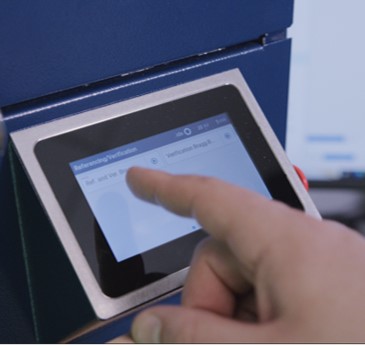

Integrated touch panel
Windows 11, 64 bit
Basis instrument operation, trouble shooting and push-button measurements and evaluations
H W D

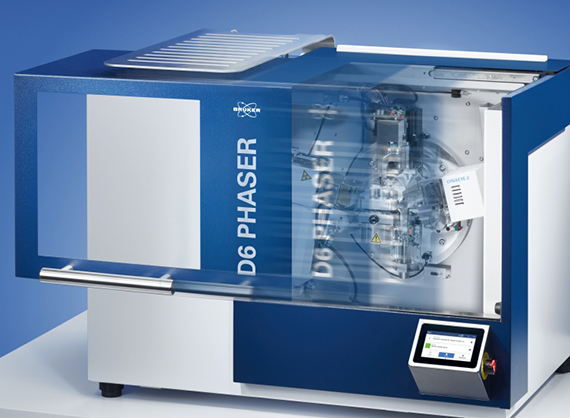

Small footprint, 70x88.5x67.7 cm (27.6″x35″x26.7″)
Up to 160 kg (depending on configuration)
Machinery Safety (EN/ISO12100:2010), Electrical Safety (2014/35/EU) Electromagnetic compatibility (2014/30/EU)
Directive 2013/59/EURATOM, safety circuit to meet EN ISO 13849-1, performance level E, DIN 54113 part 2
Our X-ray diffraction software solutions are centered around the Plan. Measure. Analyze. concept, providing users with a seamless and intuitive experience. We leverage our extensive knowledge of XRD analytical methods to guide users through the analytical process.
The full-featured, and no-compromise DIFFRAC.SUITE software package provides the easiest measurement method creation and the most powerful and accurate analysis results.
The DIFFRAC.SUITE MEASUREMENT CENTER, DIFFRAC.EVA for general data evaluation and the COD database for phase identification are always included with two licenses for industrial labs and 10 licenses for academic users.
Users start by configuring the appropriate components for their measurements using DaVinci, a graphical representation of the instrument. Our software offers clear instructions and guidance for configuring the instrument setup.
The WIZARD tool allows users to plan method files for measurements. It provides step-by-step guidance through interactive templates, enabling users to define various measurements, including advanced features like variable step size, variable counting time (VCT), non-ambient temperature profiles, texture, stress, grazing incidence diffraction, and X-ray reflectometry.
COMMANDER offers multiple ways to execute measurements on the D6 PHASER. The immediate measurement interface provides direct control over the instrument, including generator power, configured axes, and scan conditions. The interface dynamically adjusts based on the chosen components in DaVinci. Alternatively, the JOB interface allows users to launch measurements using method files generated by WIZARD. A push-button interface is also available for executing method files with a single click or touchscreen interaction.
Measurements are stored in the result database and can be saved as files to specific locations. Our software provides automated analysis routines and a comprehensive scripting platform, allowing users to launch analyses and store the results directly in the database.
DIFFRAC.SUITE, along with the analysis applications, offers controlled access through a user database. This ensures that the right people have access to the appropriate features. The software is also GxP compatible, complying with the 21 CFR Part 11 protocol for regulated industries.
