Mobile Elemental Analysis

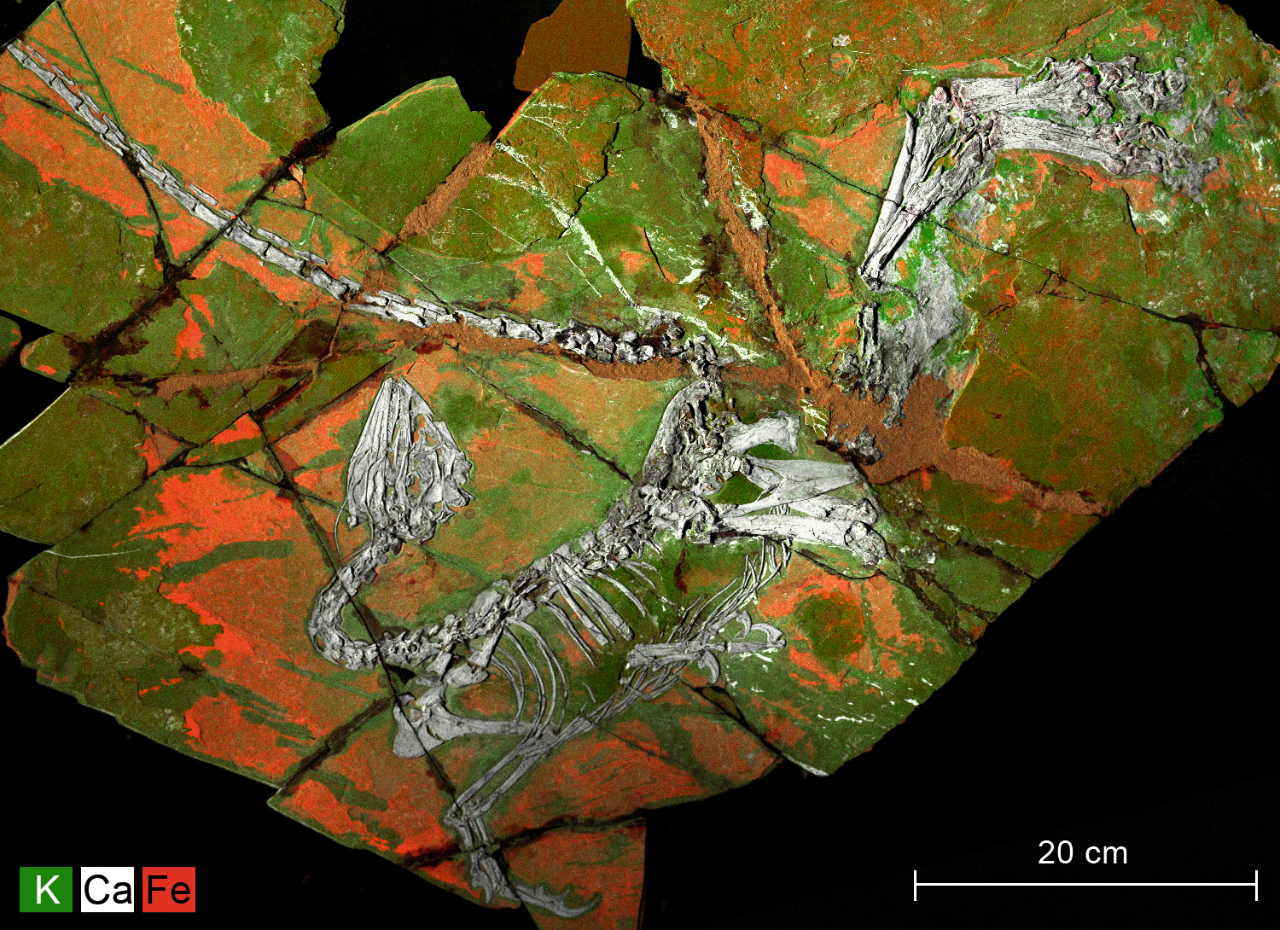

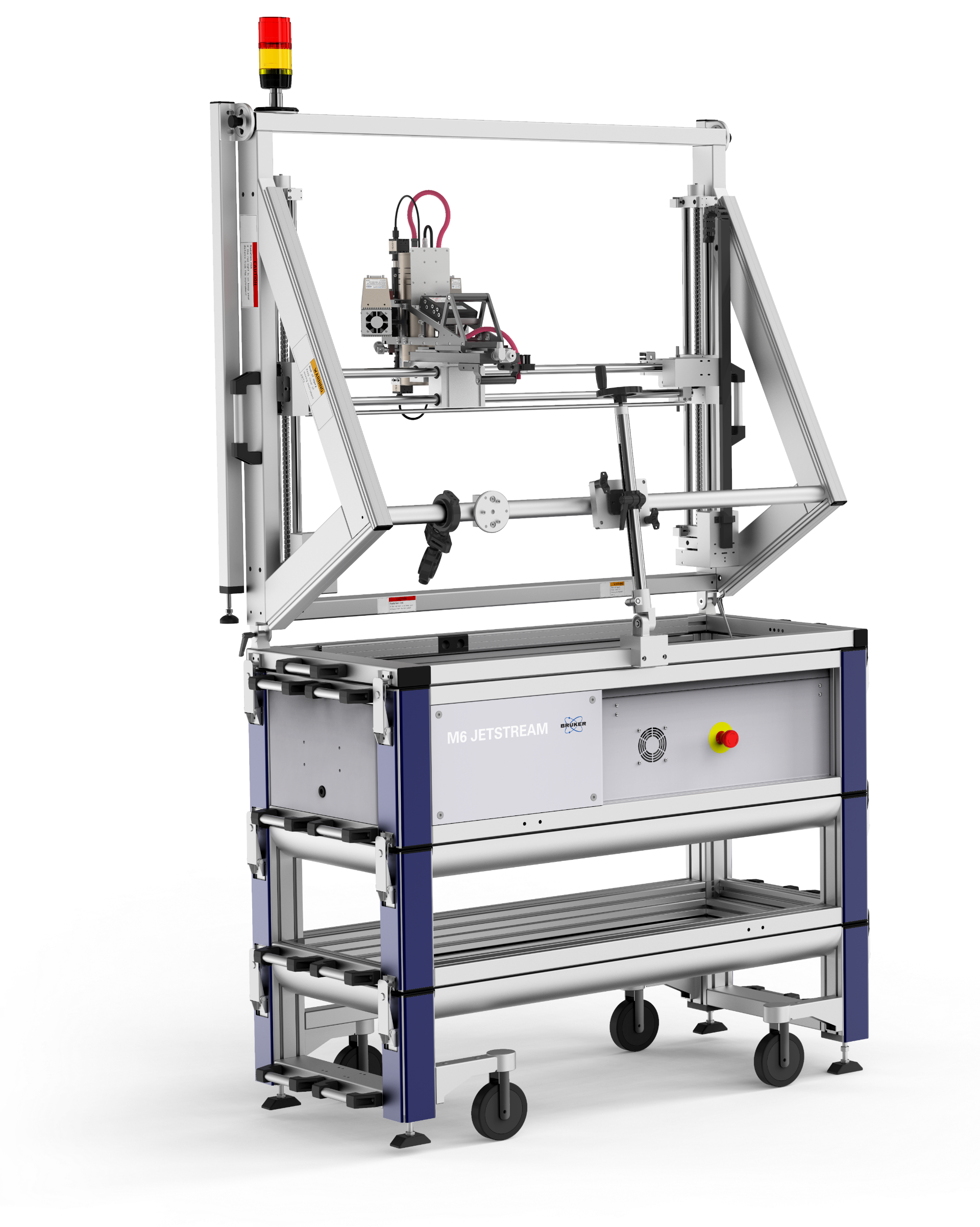

Micro-XRF on large samples (also called macro-XRF or MA-XRF) has become a decisive method for the analysis of paintings, geological samples, archeological artifacts and industrial components. The M6 JETSTREAM drives these analyses to the highest speed and accuracy. With its mobile wheelbase and adjustable frame, the M6 JETSTREAM can be used on-site instead of transporting the sample to the lab.
|Up to 100 mm/s stage speed||Mapping can be conducted "on the fly" with dwell times down to 1 ms per pixel||
|30mm² or 60mm² SDDs with ≤145 eV||The M6 JETSTREAM can be equipped with different Bruker XFlash® detectors, all specified with ≤145 eV at Mn Kα||
|±10° tilt in vertical measurement mode||In addition to the 90° tilt between horizontal and vertical measurement, the rig can be tilted in fine steps to adjust to inclined surfaces||
