Oil and Gas: Midstream and Downstream

Petroleum Process and Product Analysis

Oil refining and raw natural gas processing has increasingly strict requirements for process and quality control. Bruker is dedicated to providing analytical solutions that thrive in the petrochemical industries’ rigorous operating environments that imposes unique analytical requirements.

Petrochemical Product Analysis

Petrochemical Product Analysis

Refinery and cracker operations have become more complex with tighter margins, requiring a renewed focus on process control, feedstock analysis, and product quality control. Advanced analysis of the composition of petroleum enables operators to optimize refinery operations more profitably. Additionally, expanding regulatory controls on fuels require reliable and easy to use routine analysis. Bruker is committed to the downstream and petrochemical segment, with dedicated solutions and expertise in implementing new or improved workflows. Bruker provides go to solutionsWe are your partner in petrochemical product analysis and process control solutions.

FT-NIR

FT-NIR in Fuel & Analysis

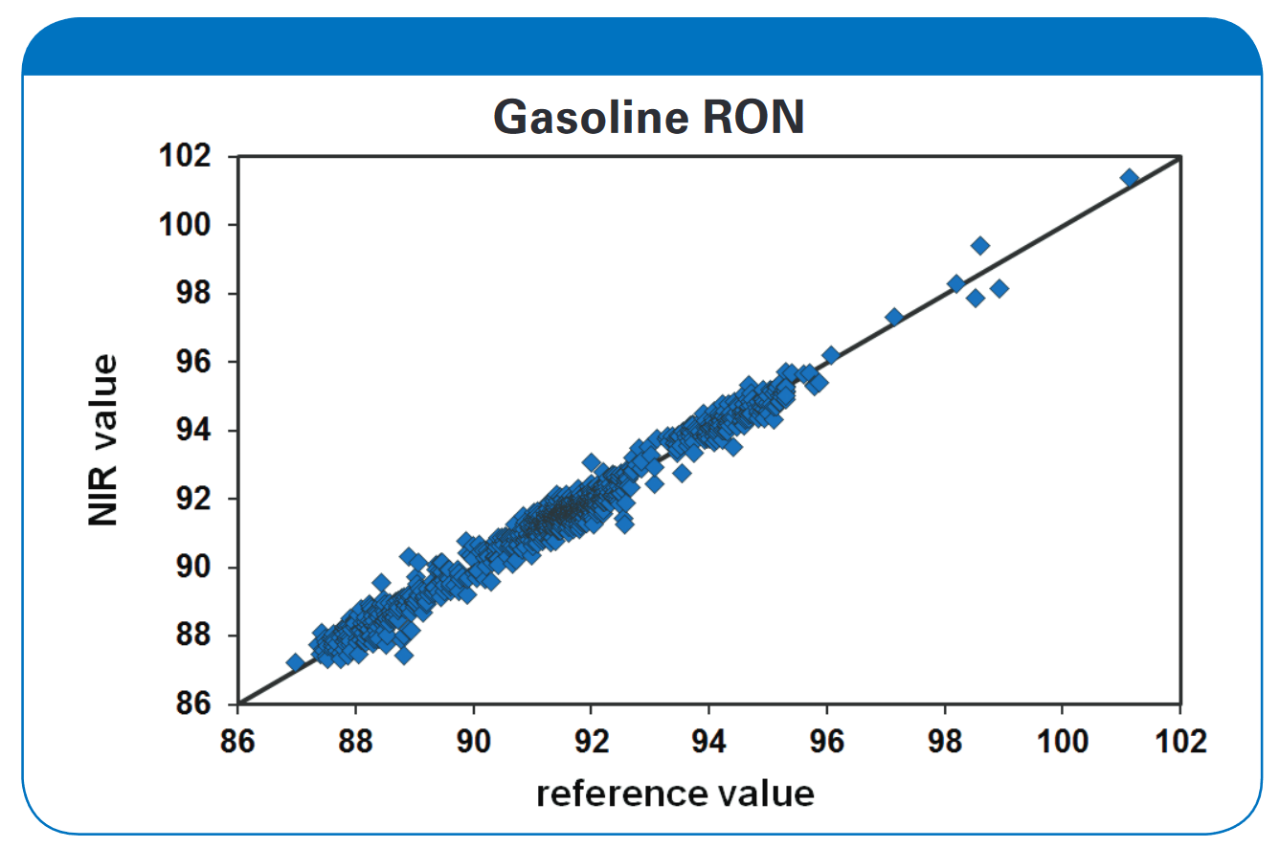

Gasoline, Diesel and Jet fuels require extensive testing in the laboratory for process optimization, blend optimization and efficiency and to reduce the instance of octane giveaway. Previously, this required many independent tests including simulated distillation, GC and Knock Engine Testing. New advances in Fourier Transform Near Infrared spectroscopy now mean that multiple chemical and& physical properties can be derived from one sample/one spectrum in seconds. Properties include:

  • RON, MON, PON
  • RVP, T5, T10, T50, T90, T95, IBP, FBP
  • Benzene, Aromatics, Olefins, Saturates

Bruker has developed unique solutions for the refinery fuels laboratories which includes calibrations developed using many thousands of fuel samples.

Molecular Classification

Petroleomics: The Molecular Classification of Petroleum

A detailed knowledge of the exact chemical composition of crude oil and crude oil fractions is in high demand within the oil industry. Crude oils with similar or even identical bulk chemical properties can behave completely different. Examples include reacting differently in the refinery processes, where specific compounds and compound classes can cause catalytic deactivation.

Flow assurance interests are with polar compounds in crude oil containing hetero atoms such as nitrogen, sulfur and oxygen having a high contribution in deposition and clogging of pipelines. Even in oil exploration, the exact chemical class information can be useful for reservoir connectivity studies.

Therefore, detailed information on relative abundances of those problematic compound classes is of major interest.

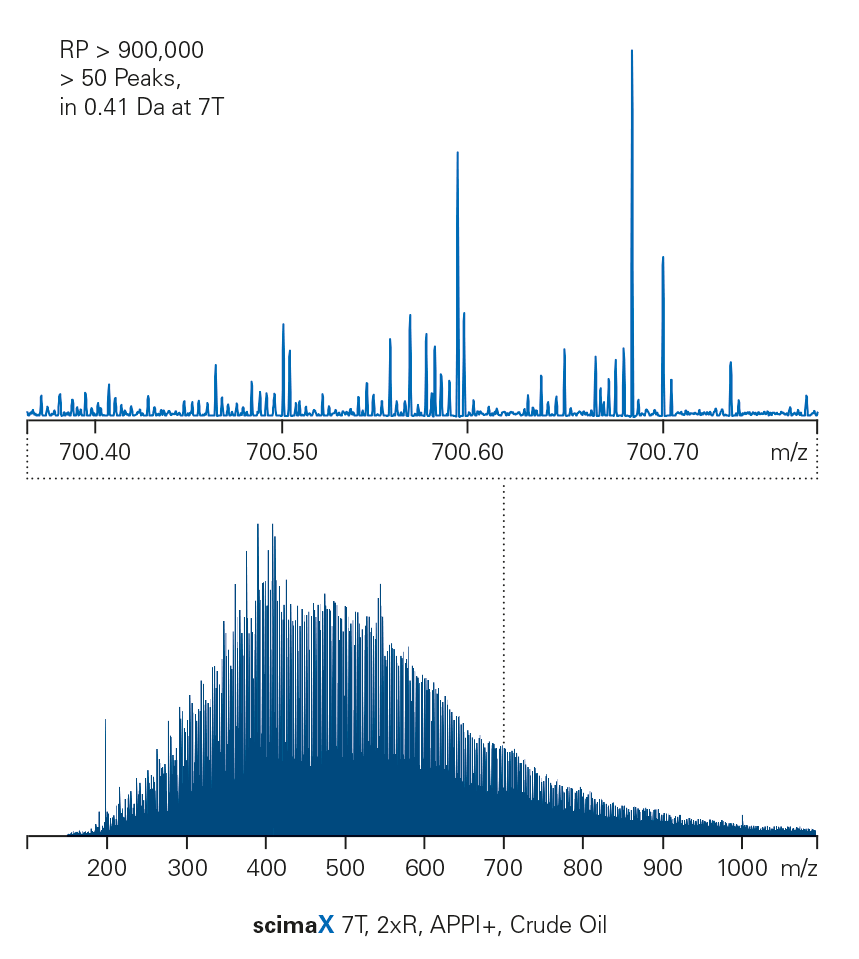

The relative abundance of compound classes, as well as detailed core structural information of classes based on ring and double bond equivalents can be derived by ultra-high resolution mass spectrometry.

Crude oils can be analyzed without any sample purification within minutes using different ionization methods (APPI, ESI, LDI). Mass spectrometric data are then processed using advanced software solutions (PetroOrg/Composer).

Elemental Classification

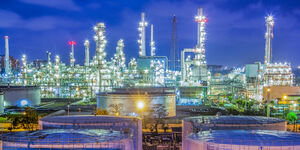

Explore XRF Solutions for Petrochemical Standards

Elemental analysis is a crucial process control tool for the refining process: XRF is employed as a technique to quantify sulfur from the crude oil to the liquid streams and in the refined products as well as to quantify Ni, Fe and V in crude oils.: Since XRF can analyze the sample directly without digestion or dilution it is the technique that is widely employed as process tool.: Sulfur levels in fuels are regulated, compliance analysis can be performed with XRF by applying ASTM, ISO or other national norms such as ASTM D2622. Residual fuel oils as well as solid petcoke can be analyzed as well directly.

For the lowest detection limits, as well as for testing P, Pb , S,Ni,V and many more elements in a laboratory setting the S8 TIGER Series 2 WDXRF units are used by many refineries.

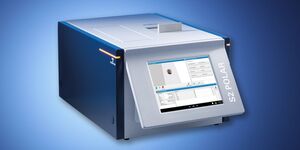

Smaller refineries and for regions where regulatory compliance for sulfur and ultra-low sulfur can be done with EDXRF (e.g. ISO 13032, ASTM D7220 and D4294) BRUKER offers the S2 POLAR with factory calibrated solutions.

IMO 2020 Low Sulfur in Fuel Regulations

The International Convention for the Prevention of Pollution from Ships (MARPOL) carriage ban on non-compliant fuel oil went into effect on March 1, 2020. Quickly and accurately measure sulfur in marine fuels to ensure bunker fuels meet regulations in Emission Control Areas and other restricted locations. This method follows ASTM D4294 higher concentration range of 0.1 to 5.0% Sulfur in Fuel and ISO 8754:2003. Suppliers, engineers, ship captains and inspectors can use our portable XRF Sulfur Measurement solutions at service labs, supply stations, on docks, in ports, and even aboard barges and ships.

Bruker’s CTX portable XRF system provides a reliable and inexpensive verification of sulfur in fuel onboard or at the terminal.

TD-NMR

TD-NMR Hydrocarbon Analysis

Time Domain Nuclear Magnetic Resonance (TD-NMR), also called Low Resolution NMR, is an affordable NMR solution for petroleum and processes analysis. Magnetic field relaxation times can be used to determine physical and chemical properties, including:

Crude Oil Analyses

  • Viscosity
  • Droplet size distribution (oil-in-water, water-in-oil)
  • Hydrogen content

Distillation Monitoring

  • % Hydrogen in seconds (ASTM techniques)
  • Automated hydro-cracking process control

Oil Sand Separation

  • Real-time monitoring of bitumen, water, solvents in separation samples
  • Sample size: few mg to 1000g
  • No sample preparation necessary
  • Color, opacity does not affect measurement
  • Simple and short calibration procedure

NMR

NMR for Fuel Analysis

NMR has found application in the fuel industry since its inception as a commercial product, and the fuel additives field has since become a heavily studied area of the industry. Often, fuel companies will carry out this research themselves and use NMR to acquire detailed information on the chemical makeup of raw petroleum.

Produits connexes

Products for Petroleum Process and Product Analysis

CTX Benchtop / Desktop XRF

CTX BenchTop XRF spectrometer.

Portable BenchTop XRF ideal for quick analysis of small or prepared samples: only 14 cm wide, light-weight (<7 kg), safety-interlocked, interactive touchscreen, and battery operated.
G4 ICARUS Série 2

G4 ICARUS Série 2

L’analyseur de combustion G4 ICARUS Series 2 avec four à induction HF et détection HighSenseMC est l’instrument idéal pour la détermination rapide et précise du carbone et du soufre dans les solides, en particulier les métaux et leurs alliages ainsi que d’autres matériaux inorganiques comme les minerais, ciments, minéraux, céramiques, etc.
MATRIX-F

MATRIX-F - Spectromètre FT-NIR en ligne

Spectromètre FT-NIR en ligne pour la mesure directe dans les réacteurs et les pipelines, pour une meilleure compréhension et contrôle du processus
MPA II Multi Purpose Analyzer FT-NIR Spectrometer

MPA II - Analyseur polyvalent FT-NIR

Outil puissant pour développer des méthodes d’étalonnage sophistiquées pour vos besoins de laboratoire ou de processus, mais facile à utiliser pour les tâches de routine QA/QC.
S2 PUMA Series 2

S2 PUMA

Analyse multi élémentaire du Carbone (C) à l’Américium (Am) pour une large gamme d’applications dans le contrôle de qualité ou les laboratoires centraux. Avec son détecteur unique HighSense, le S2 PUMA maîtrise également des applications complexes pour le domaine R&D.
S6 JAGUAR

S6 JAGUAR

Performance analytique excellente pour l’analyse élémentaire avec une technologie avant-gardiste dans un petit volume.
S8 TIGER Series 2

S8 TIGER Series 2

Outil le plus versatile pour l’analyse élémentaire avancée dans le domaine industriel et la recherche.
TANGO - Spectromètre FT-NIR autonome

TANGO - Spectromètre FT-NIR autonome

Une technologie éprouvée combinée à une utilisation facile à utiliser et à une petite empreinte, parfaite pour les laboratoires avec un espace limité.

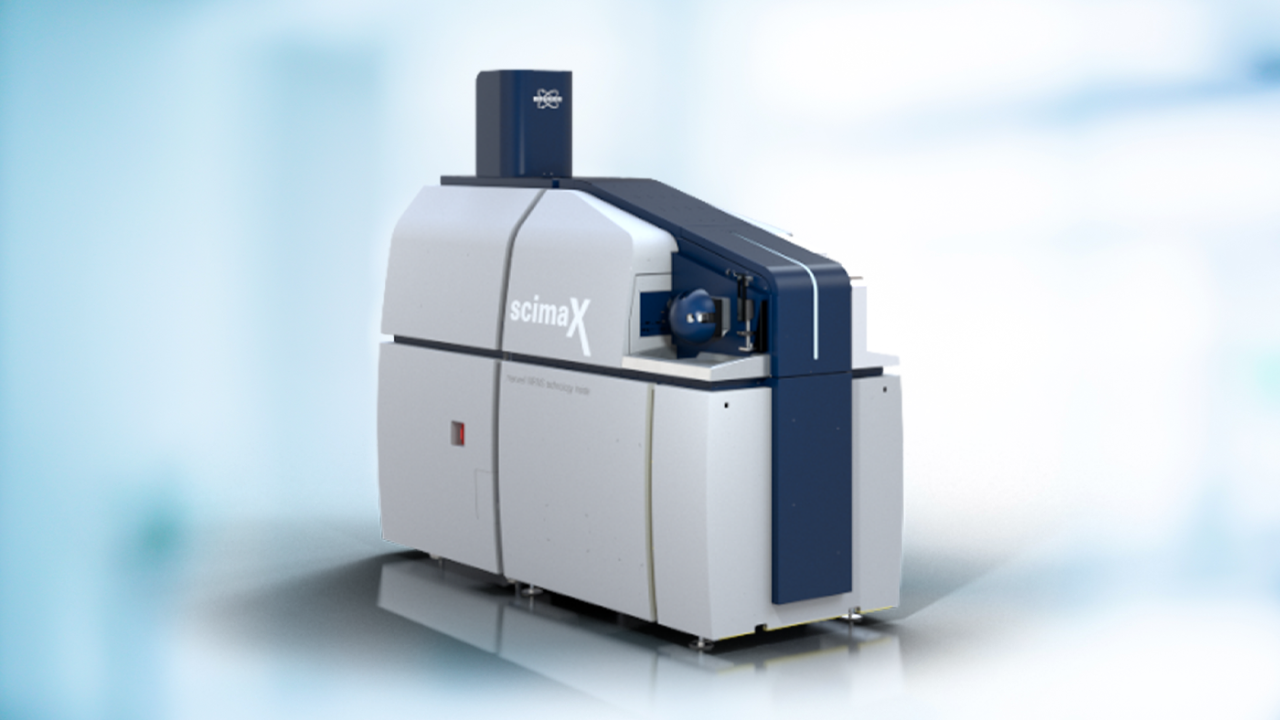

scimaX

scimaX

scimaX is powered by 2xR MRMS technology, bringing the "high hanging fruit" within easy reach.

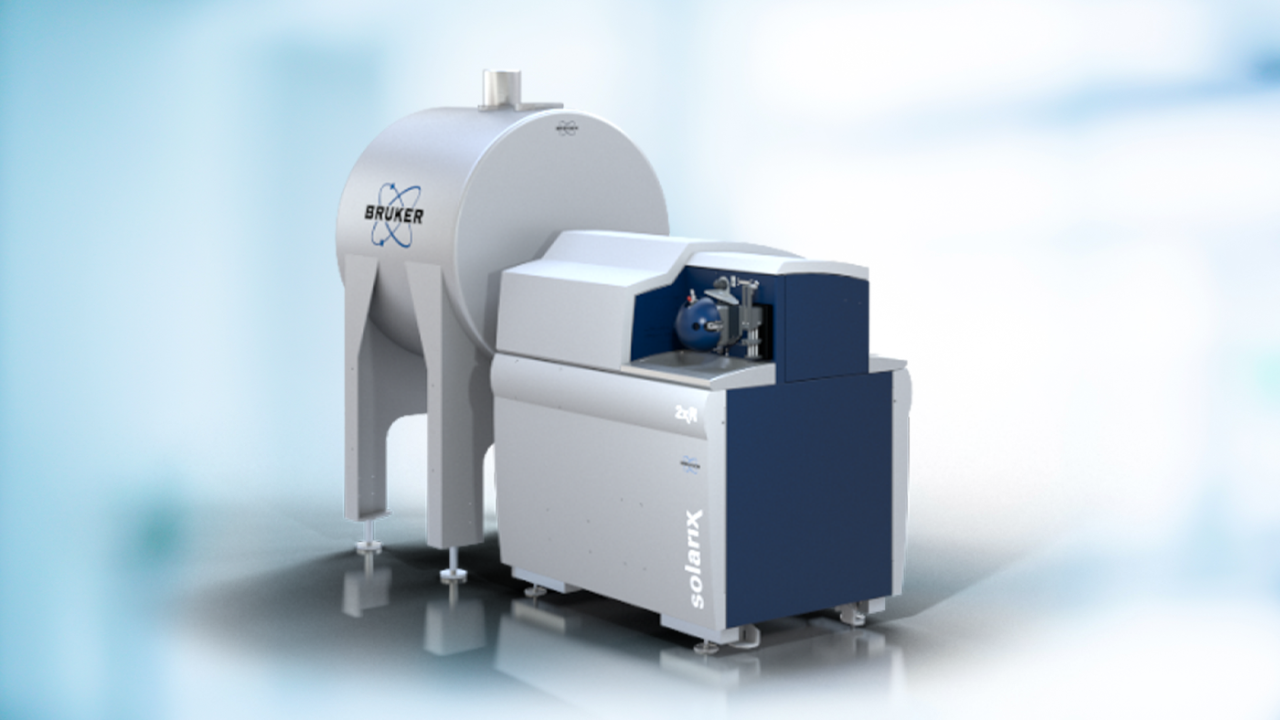

solariX

solariX

The workhorse platform for high-field MRMS works at 12T or 15T - useful for ultra-complex mixture analysis such as petroleomics and dissolved organic materials.

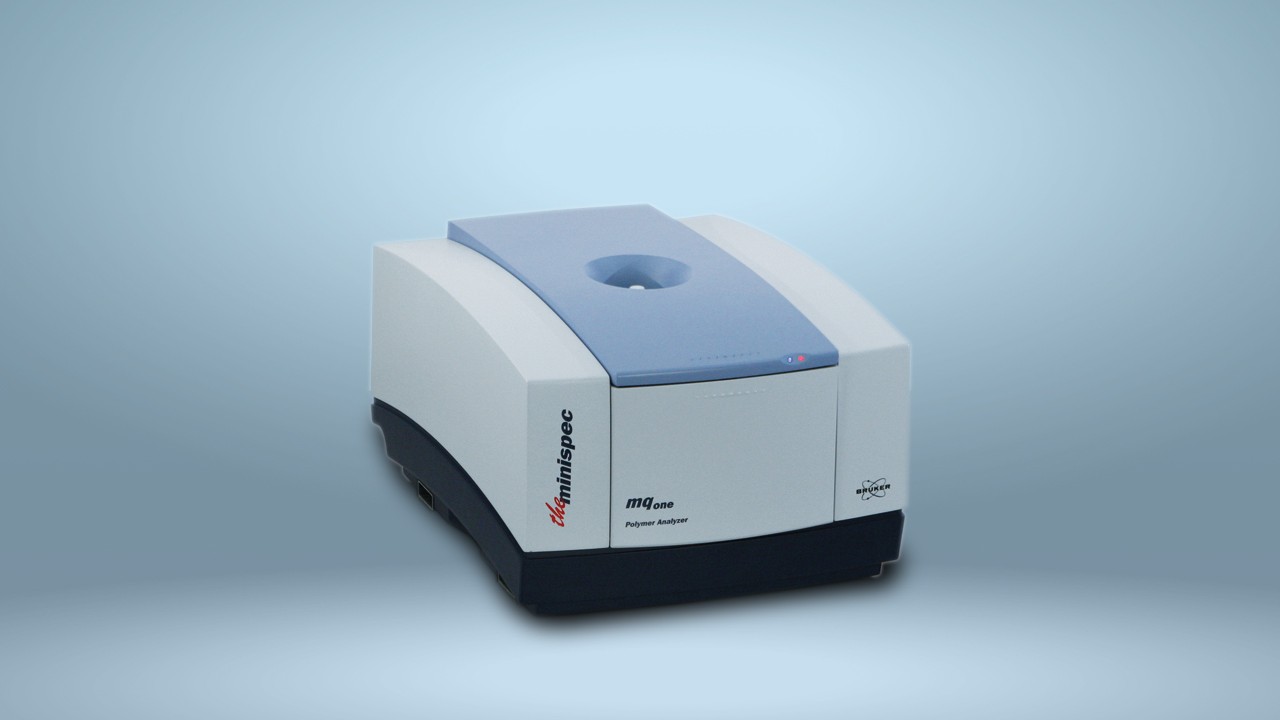

mq-one

minispec mq-one

Le mq-one est le plus récent ajout aux systèmes TD-RMR de la série minispec mq. La série mq primée couvre un large éventail d’applications et offre des capacités d’expansion pour le contrôle de la qualité rmn de routine et la R&D. Le mq-one emmène la gamme de produits minispec mq plus loin dans le domaine des applications industrielles de routine.

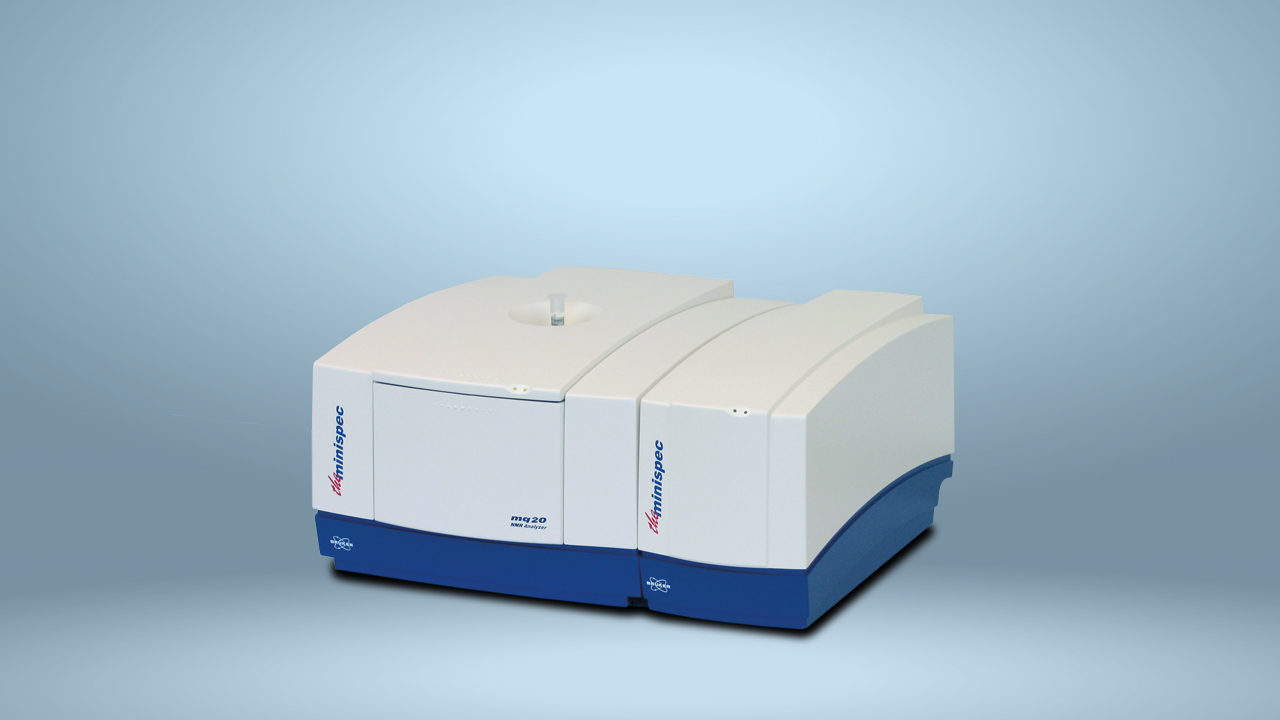

série minispec mq

La série minispec mq offre la gamme la plus complète de fréquences de mesure connues aujourd’hui, allant de 7,5 MHz pour les échantillons de grands diamètres, via 10 MHz, 20 MHz et 40 MHz, à l’incomparable mq60 avec une fréquence d’exploitation de 60 MHz.

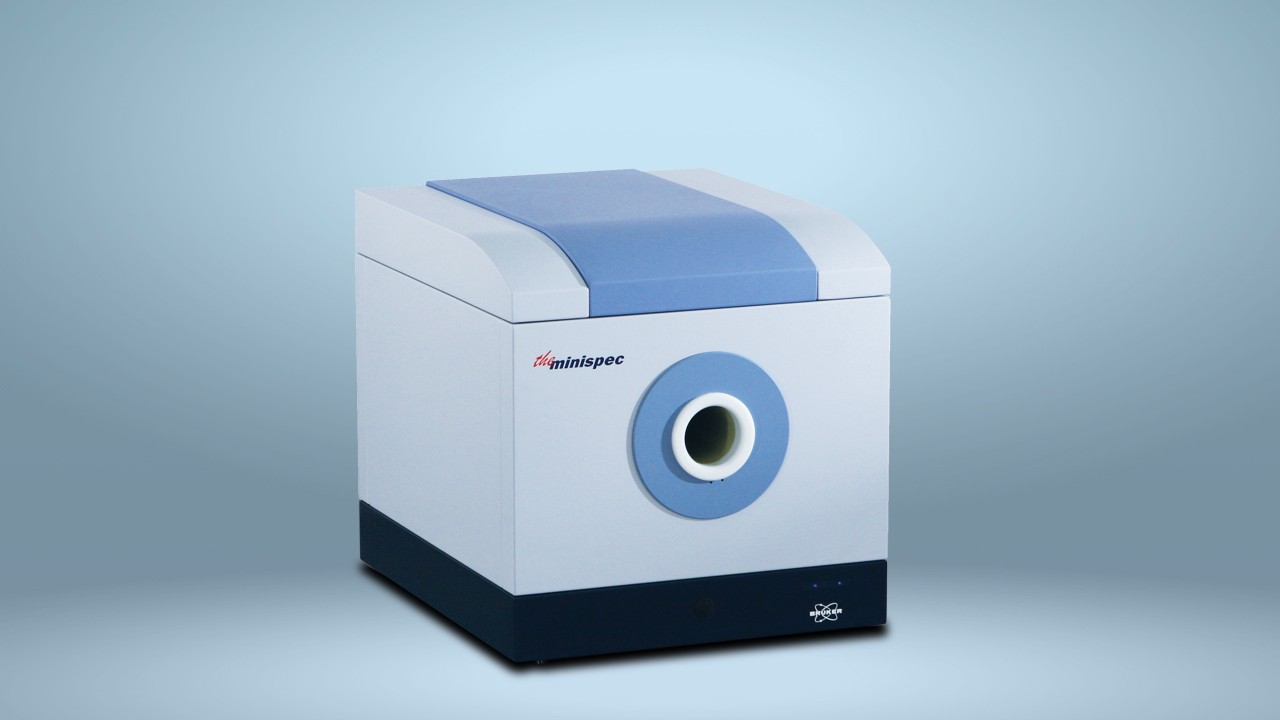

minispec LF Series

Analyse de la composition corporelle des souris et des rats

Related Products

Fourier 80

Fourier 80

S’appuyant sur des décennies d’expérience dans la création d’instruments RMN de haute qualité, Bruker a réinventé la spectroscopie RMN haute performance sous une forme compacte et rentable

Aimants NMR ascend

Notre gamme d’aimants Ascend combine plusieurs des technologies d’aimants innovantes et exclusives de Bruker pour la meilleure performance et la meilleure efficacité.
Avance Neo Console

AVANCE NEO Consoles

Les consoles AVANCE NEO pour RMN sont dotées d’un contrôle encore plus rapide, d’une plage dynamique améliorée et d’une plus grande flexibilité et évolutivité que jamais auparavant.
Classe Ascend GHz

Spectromètres de classe GHz

Aimants RMN à champ ultra-élevé et activement réfrigérés et activement protégés
DNP-RMN

DNP-RMN

Poussée de sensibilité pour la RMN à état solide. En tant que leader du marché, Bruker présente le premier système de rmn nucléaire dynamique à l’état solide (DNP-RMN) disponible dans le commerce.

Sondes

Bruker peut fournir des sondes de haute performance pour presque n’importe quelle application des mesures de routine de RMN 1H sur de petites molécules aux applications avancées de recherche, y compris les expériences inverses.
CryoProbe

CryoProbes

CryoProbe™ Bruker offre tout un monde d’applications avec une sensibilité significativement accrue pour toutes les tailles de sondes

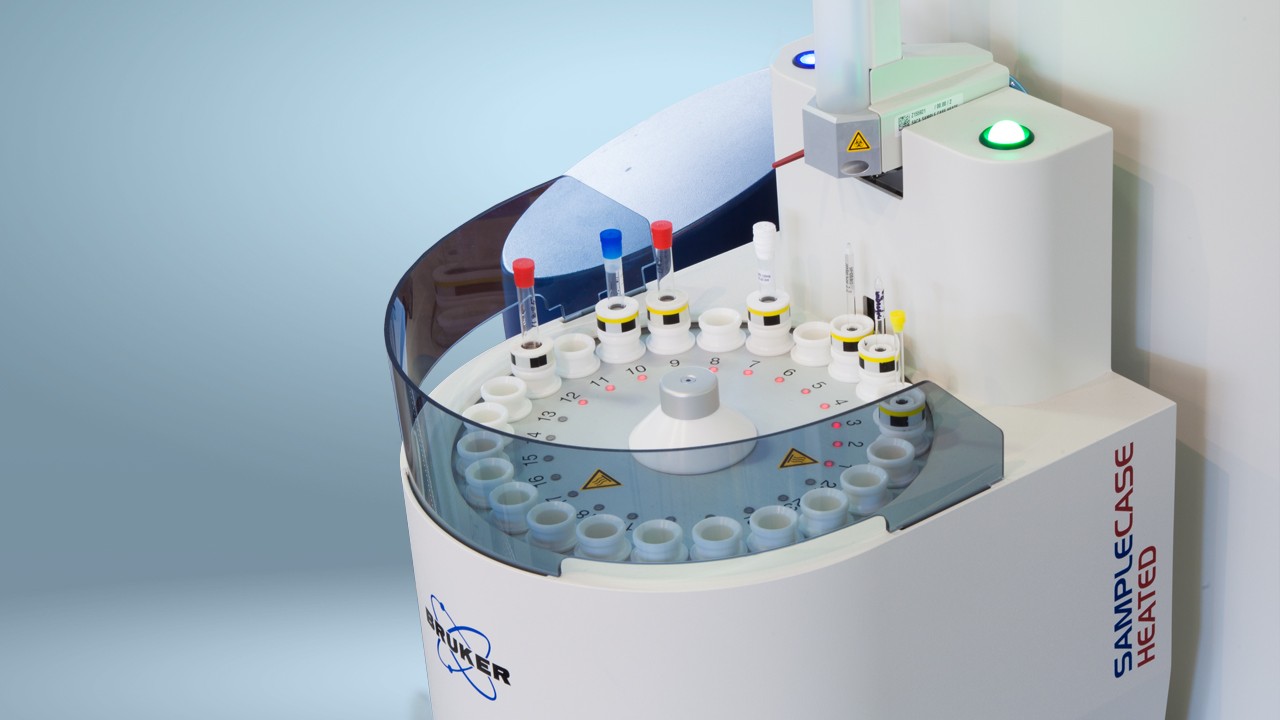

Automatisation

Automatisation RMN

Le laboratoire automatisé de RMN

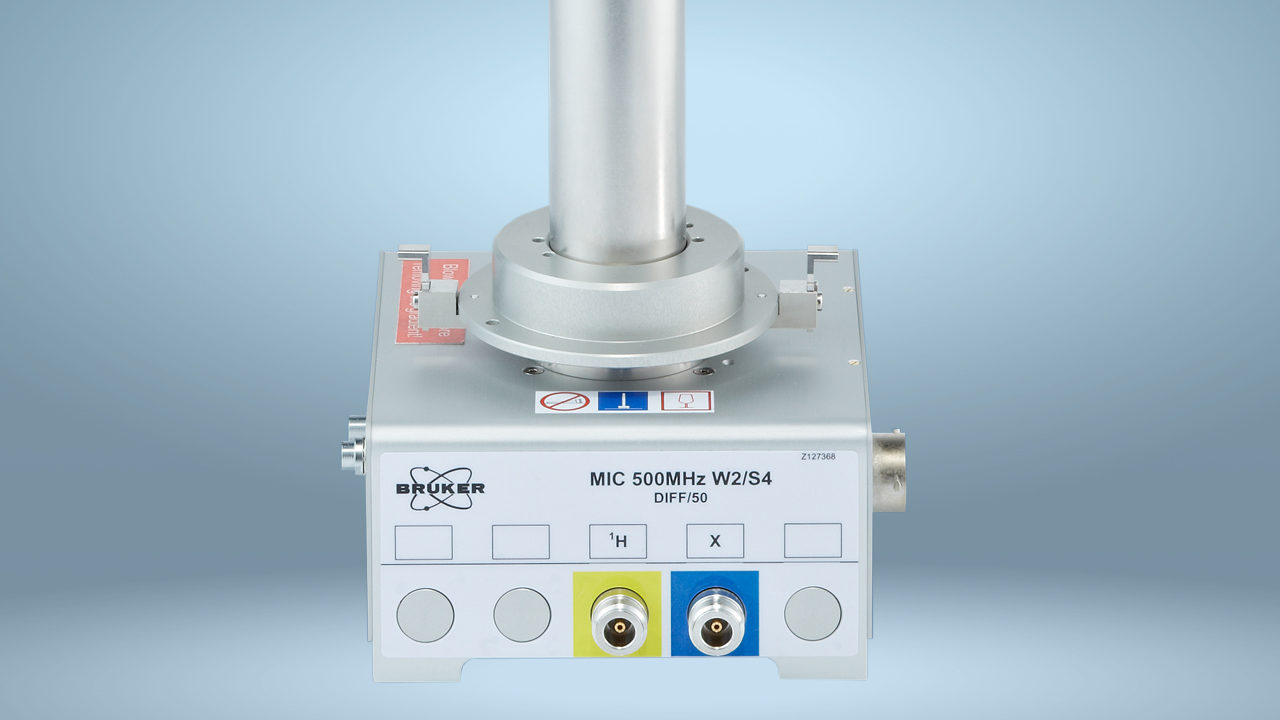

Ascend 600
