Nuclear Molecular Imaging

PET/MR 3T

MRI and PET combined...for the best of both worlds
PET/MR 3T

Najważniejsze informacje

Highlights

The breakthrough in PET detector technology, together with the proven translational field strength MRI combined in one compact and easy to use instrument. Featuring PET Full Field of View Accuracy which provides homogeneous, constant PET resolution over the whole field of view and a newly developed 3T cryogen-free magnet . With a touch screen controlled motorized animal transport system, the PET/MR 3T simplifies your workflow and supports a broad spectrum of application fields, such as oncology, functional and anatomical neuroimaging, orthopaedics, cardiac imaging and stroke models.

PET Features
  • Sharp Total Body PET images with new PET Silicon PM detectors deliver consistent and reproducible quantification within the entire FOV, regardless of object size and position
  • Patented continuous LYSO crystals, unrestrained by discrete layers, and Silicon position sensitive photomultipliers with advanced depth-of-interaction (DOI)detection enable precise 3D localization of events. This eliminates the resolution degradation when moving out of the center of the PET Field-of-View (FOV)
  • No shielding required: PET technology is fully compatible with high magnetic field strength; spatial resolution and energy resolution are unchanged within the magnetic field
  • Exceptional count rate performance combined with 12% sensitivity for dynamic and gated studies for high temporal resolution and superior image quality

MRI Features

  • Superior MRI magnet technology ensures the magnet remains on field during power outage or cold water failure for up to 4 hours
  • Best in class homogeneity of ±0.1 ppm for a 50 mm DSV due to solid magnet design · MRI sequence portfolio of more than 1000 sequence variations, including wireless cardiac imaging using navigator based IntraGate methods with a choice of cartesianor radial readout, as well as short echo time imaging, such as UTE and ZTE
  • Widest range of RF-coils (~30) for mice and rats available, including coils for head, brain, cardiac, body, and multi-purpose applications
  • Over 100 validated and ready to use in vivo protocols and scan programs for mice and rats

Cechy charakterystyczne

Multimodal System Features

  • „„Accurate animal positioning with the motorized animal handling system including touchscreen operation enables automatic co-registration of images
  • Image fusion and quantitative analysis using PMOD
  • Whole body scans with a total field of view of >285 mm enabled by moving table acquisitions

Korzyści

Key Benefits

  • „„Unprecedented PET resolution up to 0.7mm, with Full Field Accuracy (FFA)*

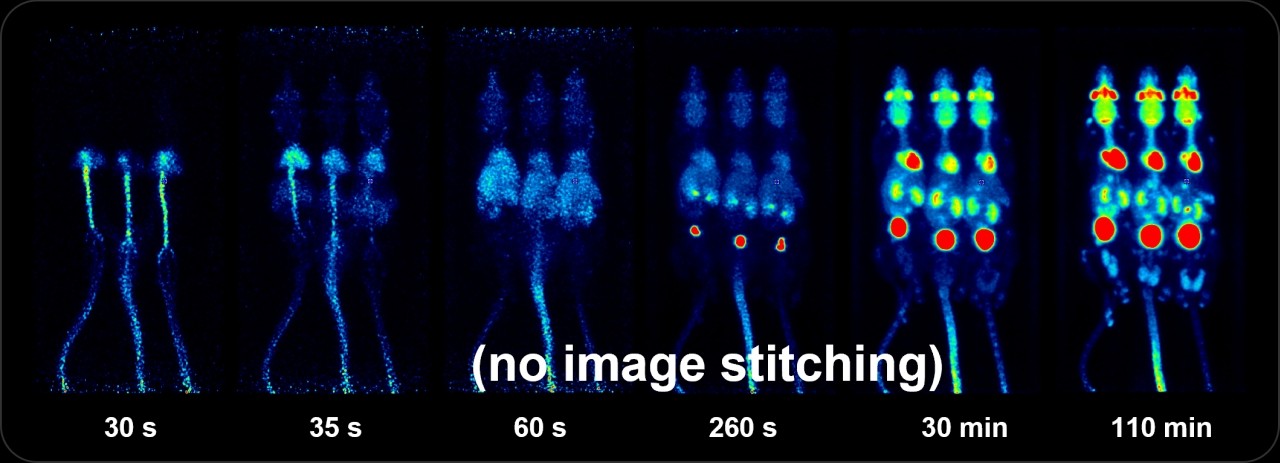

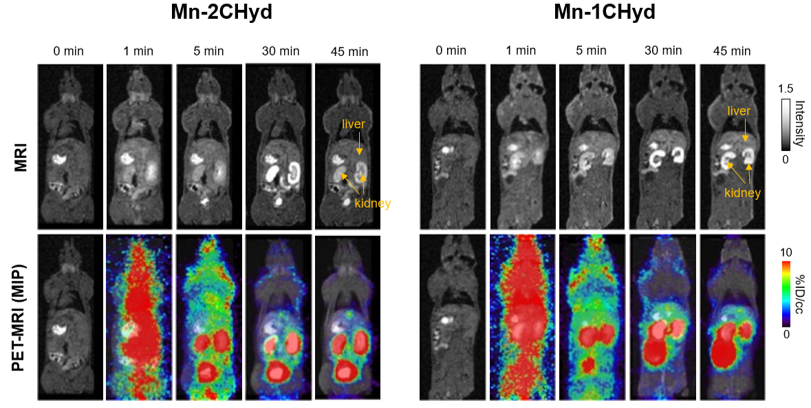

  • Total body PET imaging with a leading PET sensitivity of 12%
  • „„Consistent quantification with attenuation correction based on high quality MRI data
  • Unique boost of MRI sensitivity and resolution with the MRI CryoProbe™ for mice and rats
  • Proven MRI performance with fully featured ParaVision® preclinical user interface, intrinsically supporting multimodal workflows
  • Accurate animal positioning with the motorized animal handling system including touchscreen operation enables automatic co-registration of images
* Homogeneous resolution better than 1.2 mm in the whole 80 mm FoV, with 10 times bigger area of optimum detection
