Luxendo Light-Sheet Microscopes

QuVi SPIM

The quantitative view light-sheet microscope

QuVi SPIM

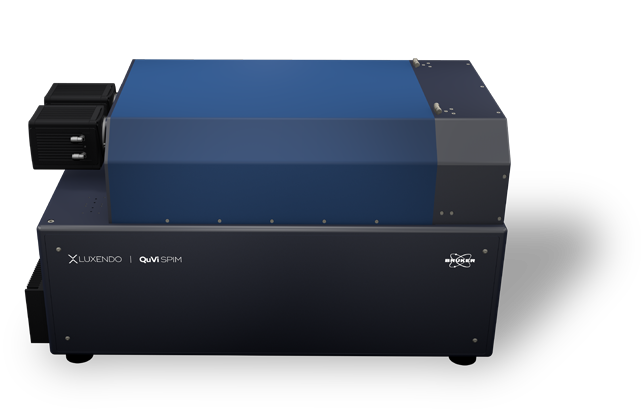

The QuVi (Quantitative View) SPIM is a highly versatile light-sheet microscope that allows for true 3D volumetric imaging of living, fixed, and cleared samples. The QuVi SPIM exhibits a robust bench-top design, with an upright and symmetric, dual-view geometry and high precision, long travel range stages. Its light-sheet technology provides outstanding performance figures, especially in long-term imaging and high-throughput acquisitions. Thus, the QuVi is the optimal choice for dynamic, fast imaging, high-content screenings with isotropic resolution.

Dual View / Dual Acquisition
Correlative microscopy for fast processes
With an upright, multi-immersion setup, the QuVi truly shines when using dual-acquisition, which allows for rapid and isotropic detection of biological processes.
Optimized Stability
Long-term imaging
As all Luxendo light-sheets, the QuVi features a robust bench-top design, combined with advanced environmental control. It is best suited for in vivo and long-term live imaging at stable culture conditions.
User-friendly
Sample mounting

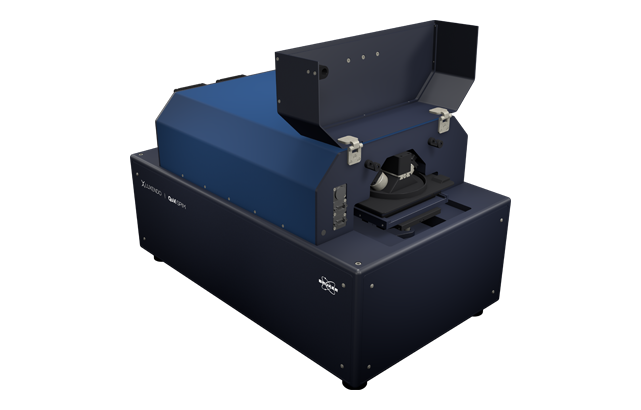

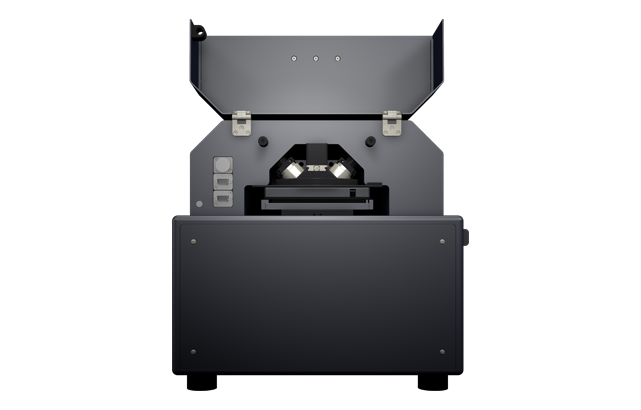

Upright microscope geometry and modular stage top design provide the means for simple, standardized or customized sample mounting.

Simultaneous Dual-View or Dual-Channel Acquisition

The QuVi SPIM combines dual views with dual detection channels to enable large-scale 3D imaging of life specimens and cleared samples. The system enables fast and simple transition between living and cleared tissue imaging.

Typical applications of the microscope include living or fixed and cleared brain slices, long-term imaging of 3D cell culture models (spheroids, organoids, tumoroids), imaging of conventional cell culture in high throughput, and even functional (e.g. calcium) imaging.



Optimized Stability

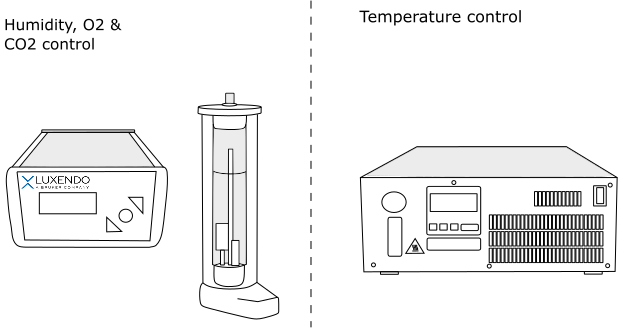

The QuVi SPIM can be equipped with environmental control. Temperature can be adjusted between 20–37°C for optimal incubation conditions.

In addition, the QuVi SPIM also provides precise and stable environmental control (i.e. CO2, O2, N2, and humidity). Gas-concentration for the different components ranges between 0–15 % for CO2, 1–21 % for O2, and 20–99 % for H2O (humidity). The gas humidifier offers feedback control for precise regulation.



User-Friendly Software and Hardware

Hardware

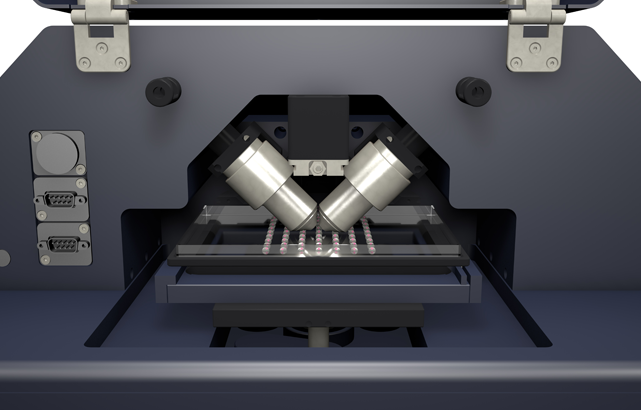

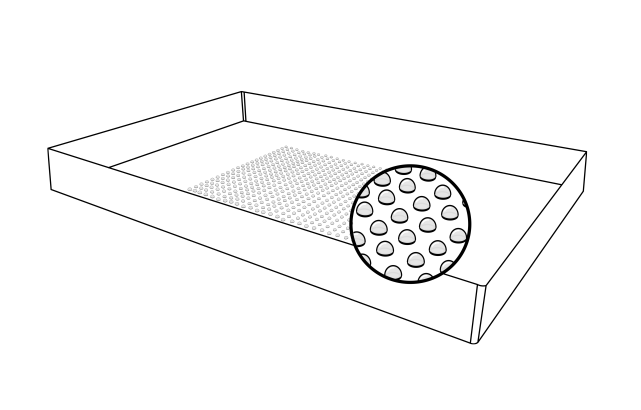

Its novel stage design allows using SBS-format plates and provides an easy sample accessibility by means of its quick load feature. Since the objective lenses are exchangeable, a wide variety of samples of different sizes and preparations can be imaged.

Software

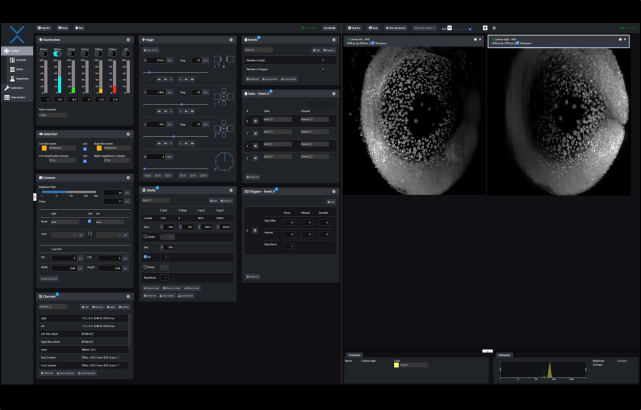

Luxendo's intuitive user interface offers a simple setup and execution of multidimensional experiments, while real-time control is handled by an embedded controller to ensure microsecond-precision timing independent of the PC’s performance fluctuations.

Many Design Features Make the QuVi Excel

Upright, Dual View and Dual Color

The QuVi SPIM combines easy accessibility with high throughput and well-controlled sample conditions, e.g. to perform screening experiments or biophysical methods such as FLIM and FCS.

Typical applications of the microscope include living or fixed and cleared brain slices, long-term imaging of 3D cell culture models (spheroids, organoids, tumoroids), imaging of conventional cell culture in high throughput, and even functional (e.g. calcium) imaging.

Illumination and Detection

The QuVi SPIM can achieve a resolution down to 340 nm in 3D, enabling live imaging, free of phototoxic effects.

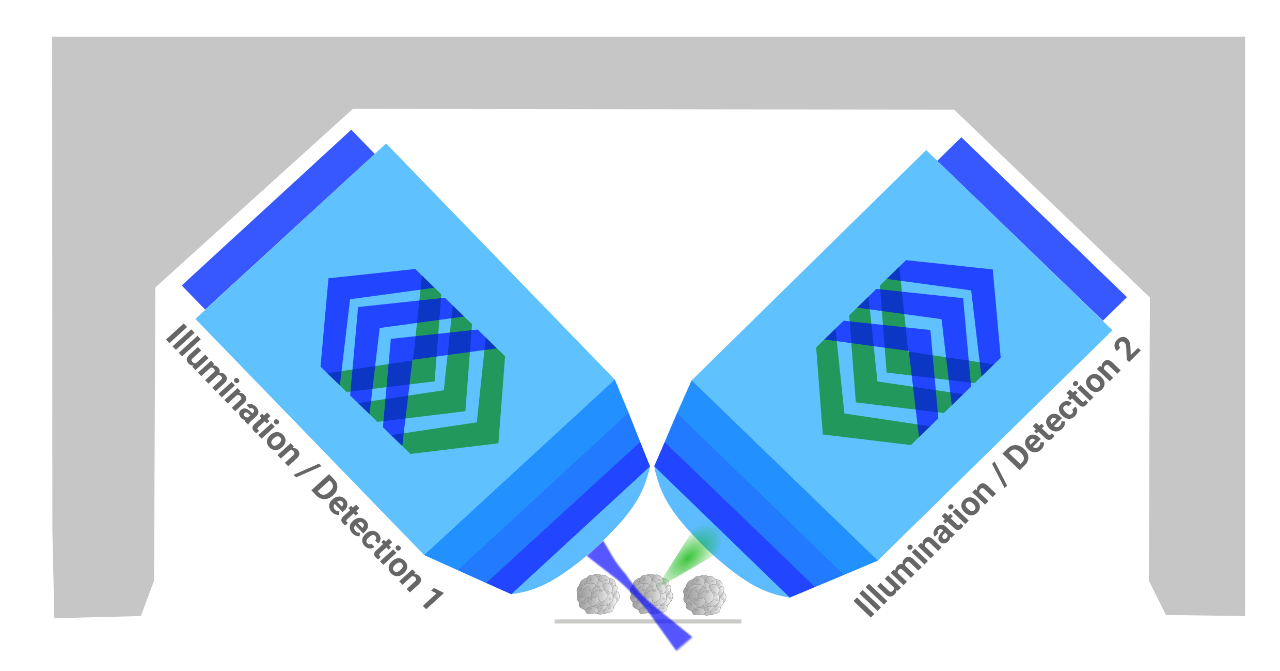

The QuVi features a dual-side alternating illumination/detection concept and provides two orthogonal views of the sample.

The illumination optics comprise light-sheet generation by scanning a beam after passing a beam-shaper unit for length and diameter adjustment. Two Nikon 40x 0.8 NA water immersion objective lenses alternatingly project two orthogonal light-sheets on the sample. The expandable and upgradable illumination setup allows a range of up to six lasers. The alignment-free light-source offers 40mW power output for each line. For detection, the same objective lenses are used.

The two spectral detection channels equipped with 10 position high-speed filter wheels and a dichroic mirror changer enable simultaneous dual channel imaging. In addition, more than two channels can be acquired sequentially. The robust sCMOS Orca Flash 4.0 V3 cameras from Hamamatsu are well-suited for experiments that require high detection efficiency, quantification and speed.

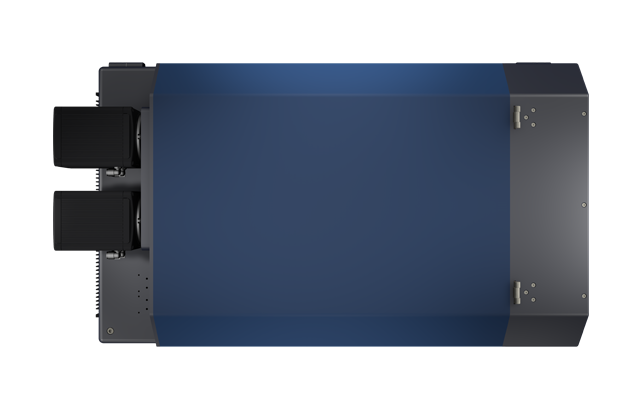

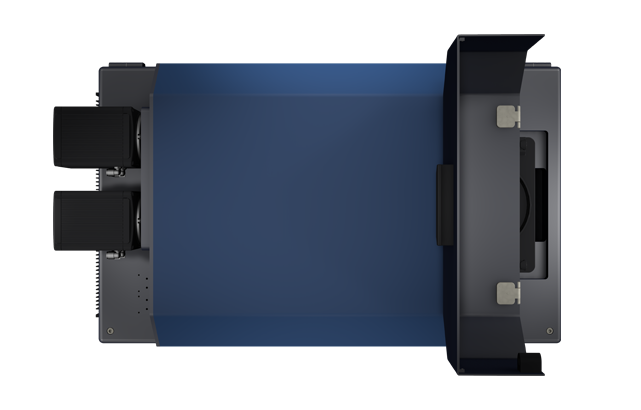

Device Design

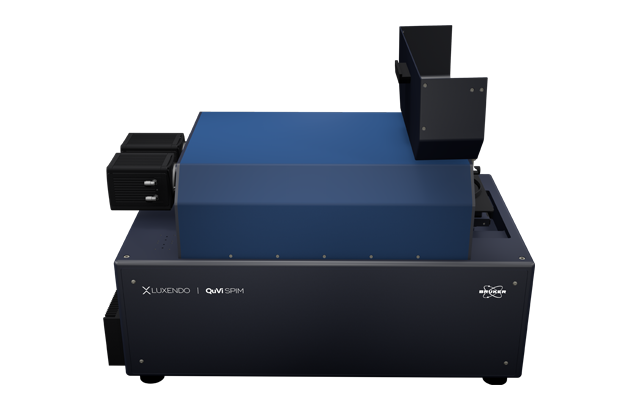

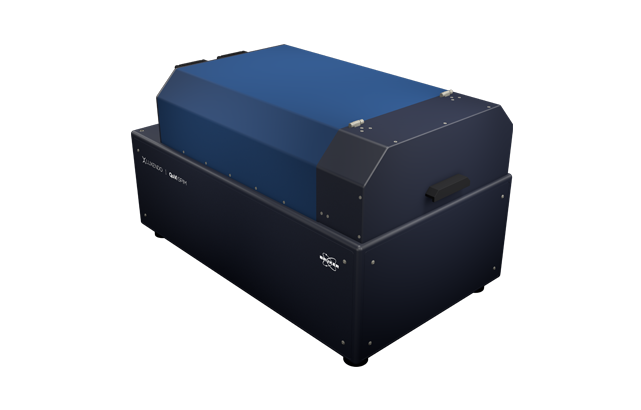

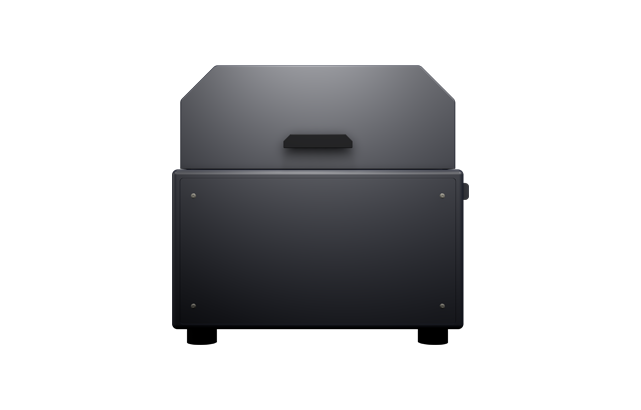

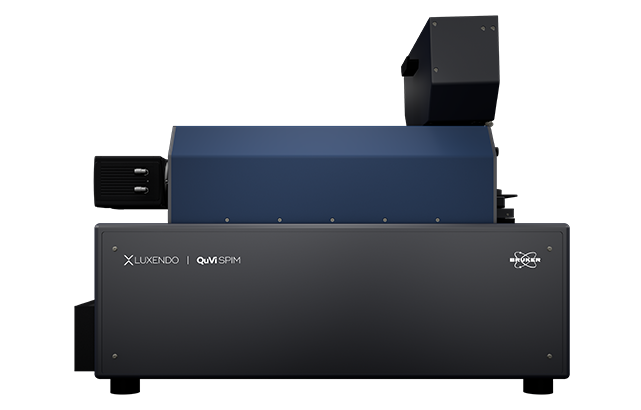

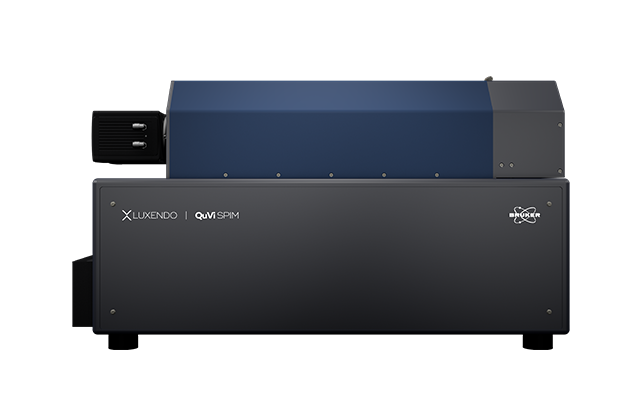

The QuVi SPIM's compact, vibration-free and robust design provides maximal stability during your long-term experiments.

Tailored to fit your lab bench, this class 1 laser system does not require any air table or vibration-compensation mechanism as all moving components are light-weight and balanced. Maximal stability of focus and thermal conditions are also guaranteed. The proprietary piezo-crawler stages ensure longevity and precision for a permanently accurate specimen positioning. Neither the images nor the natural growth behavior of your sample are affected by the gentle image recording.

QuVi Applications

Researchers are using the QuVi SPIM in a variety of ways including studies in embryogenesis and developmental biology, organoids, cell cultures, neurobiology and neurodevelopment, plants, and more. Browse a selection of applications data from our customers below or visit our more extensive galleries from all Bruker light-sheet solutions.

Cleared Mouse Lymph Node

BABB-cleared mouse lymph node. High endothelial venules (red) and autofluorescence (green) to visualize surrounding tissue. Imaged on the QuVi SPIM.

Courtesy of:
Jens Stein
University of Bern
Bern, Switzerland

3D Cell Culture

3D culture system of human primary cells imaged on the QuVi SPIM.

Courtesy of:
Yassen Abbas
Turco Lab, University of Cambridge
Cambridge, UK



C. elegans Lineage Tracing

The histone marker (H2A::mCherry, purple) and the membrane marker (cnd-1::GFP, green) were used for lineage tracing in C. elegans. Imaged on the QuVi SPIM.

Courtesy of:
Zhirong Bao
The Zhirong Bao Lab
Memorial Sloan Kettering Cancer Center (MSKCC)
Ney York, USA

Microglia Movement

Microglia movement in zebrafish. The vascular system is labeled with a cyan marker and microglia with a yellow one. Imaged on the QuVi SPIM at 2 FPS for 20 min. Two orthogonal views fused and max. project.

Courtesy of:
N. Norlin, F. Peri
European Molecular Biology Laboratory (EMBL)
Heidelberg, Germany



Specifications

Illumination Detection
Effective Magnification
Field of View Pixel Size Optical Resolution
40x / 0.8 NA 40x / 0.8 NA 40.0x
330 µm

160 nm

340nm

Illumination Optics

  • Chromatic correction from 440 to 660 nm
  • Light-sheet generation by beam scanning
  • Flexible light-sheet thickness (2 µm to 6 µm)
  • Two Nikon CFI Apo 40x W 0.8 NA NIR water immersion objective lenses





Detection Optics

  • Two Nikon CFI Apo 40x W 0.8 NA NIR water immersion objective lenses
  • 3rd objective lens CFI Plan Achromat 4x 0.1 Air
  • Dual-side alternating illumination/detection concept
  • 2 spectral detection channels, each equipped with a fast filter wheel (10 positions and 50 ms switching time between adjacent positions)
  • Filters adapted to the selected laser lines
  • 2 high-speed sCMOS cameras Hamamatsu Orca Flash 4.0 V3
  • Maximum frame rate >80 fps at full frame (2048 × 2048 pixels of 6.5µm × 6.5 µm size) and up to 500 fps at subframe cropping
  • Peak quantum efficiency (QE): 82% @ 560 nm
  • 3rd detection path equipped with a Grasshopper3 5.0MP camera for transmitted light detection

Stage

  • High-precision XYZ stage
  • Unique quick-load feature, SBS plate compatible
  • Easy access from above for sample mounting, injections, etc.
  • Environmental control unit is optinally available, featuring precise control of temperature (range 20–37°C), humidity, O2 and CO2

Laser Combiner

  • Maximum of 6 laser wavelengths (405, 445, 488, 515, 532, 561, 594, 642, and 685 nm with 40 mW each before fiber)
  • Fast modulation (MHz range) and high extinction ratio

Software

Luxendo's intuitive user interface offers a simple setup and execution of multidimensional experiments, while real-time control is handled by an embedded controller to ensure microsecond-precision timing independent of the PC’s performance fluctuations.

Precise timing control of all connected devices is a prerequisite for reliable experimental outcomes. Full control of data streaming to storage as well as GPU-supported image processing further complements the overall performance.

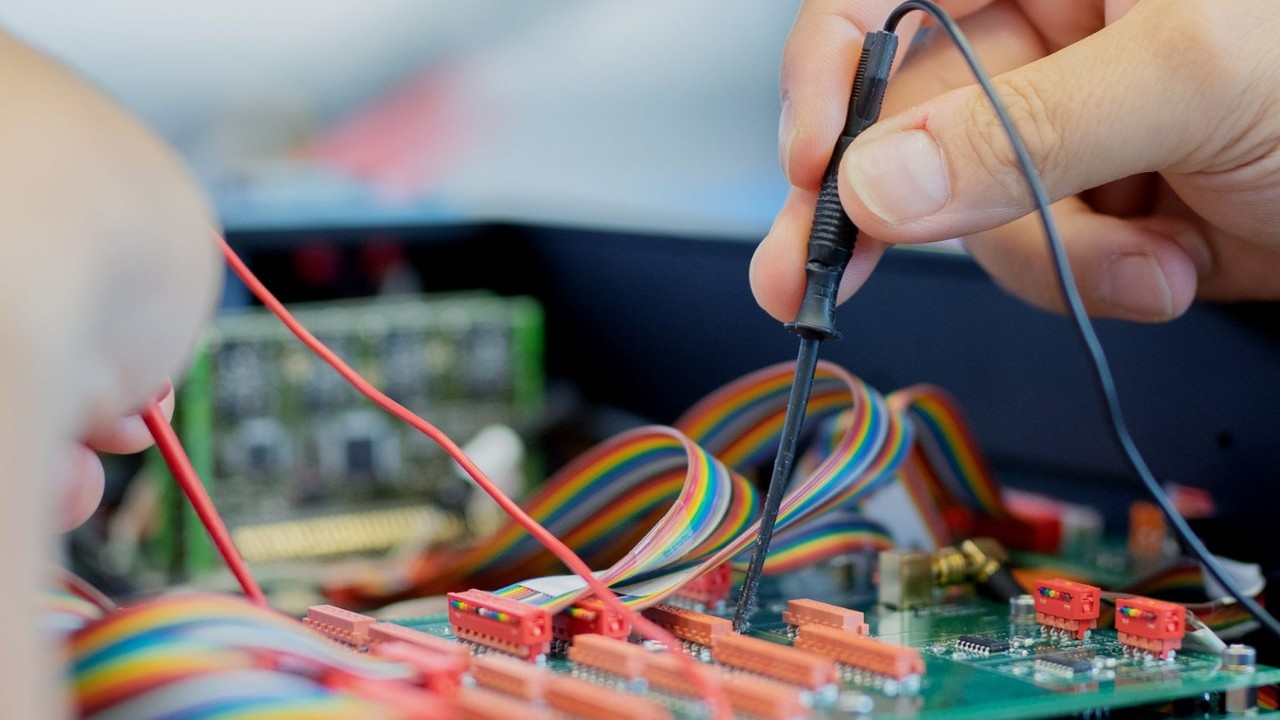

Electronics, Microscope Software and Computer

  • Embedded microscope software with an open communication interface: documented API, TCP/IP-based communication
  • Flexible GUI for interactive microscope control and experiment design
  • Computer with 128 GB RAM, Intel dual 8 core CPU
  • High-speed RAID controller for data streaming, 8 × 4 TB local storage in RAID O
  • GeForce RTX 2080 graphics card
  • 10 Gbit/s on-board Ethernet port
  • 1 UHTV 40 inch display
Software

All-in-One LuxBundle Software

Intuitive design

Bruker's LuxBundle software saves time and enhances productivity by providing:

  • All-in-one, easy-to-use interface for acquisition, viewing, and post-processing
  • Fully scriptable microscope control and post-processing via open interface (e.g., Python or any other language) ready for custom "smart" microscopy
  • High reproducibility of experiments: all parameters are saved in the metadata and configurations can be saved for future experiments
  • Data formats (.tiff, .hdf5, .ims) compatible with common image processing software: Imaris, Aivia, BigDataViewer, Arivis, Fiji, Python, Matlab, Napari

Impressive Image Post Processor

MuVi SPIM records a sample from different angles/views and generates images composed of multiple tiles. The LuxBundle software ensures high-quality, 360° crisp images of the sample that compensate for absorption and scattering. Features include:

  • Multi-color alignment
  • Tile stitching of hundreds of tiles for large samples
  • Multi-view image fusion and deconvolution

3D Data Viewer

LuxBundle's integrated 3D data viewer allows researchers to inspect the entire dataset directly after acquisition. This gives users control over their data with key capabilities, including:

  • The ability to turn tile stitching on or off
  • Both raw and post-processed images
  • Fast viewing of multi-terabyte data sets
  • Flexible options to draw and annotate regions and landmarks
Cleared mouse embryo labeled with methylene blue (cyan) and showing autofluorescence (magenta). Image composed of 12 tiles and 920 planes, all processed and stitched with LuxBundle (Image courtesy of Montserrat Coll Lladó, European Molecular Biology Laboratory, Barcelona, Spain)
