NMR Instruments

Fourier 80

Advance your analytical capabilities and strengthen your curriculum with high-performance NMR in an easy-to-use, compact benchtop system. Tackle the challenges. Remove the barriers. Advance discovery.

Big things come

in small packages

하이라이트

Highlights

Cryogen-free
The Fourier 80 can be installed in the fume hood or on the bench without the need for new infrastructure, providing easy maintenance and minimal cost of ownership.
80 MHz
The Fourier has been designed for the highest data quality and stability at 80 MHz, with excellent lineshape, resolution and sensitivity.
Flexibility
Adjustable temperature for the Fourier 80 allows samples to be measured from 25°C up to 60°C
Precision
Fourier 80 HD: Designed for performing complex molecular structure analysis mimicking high field NMR resolution

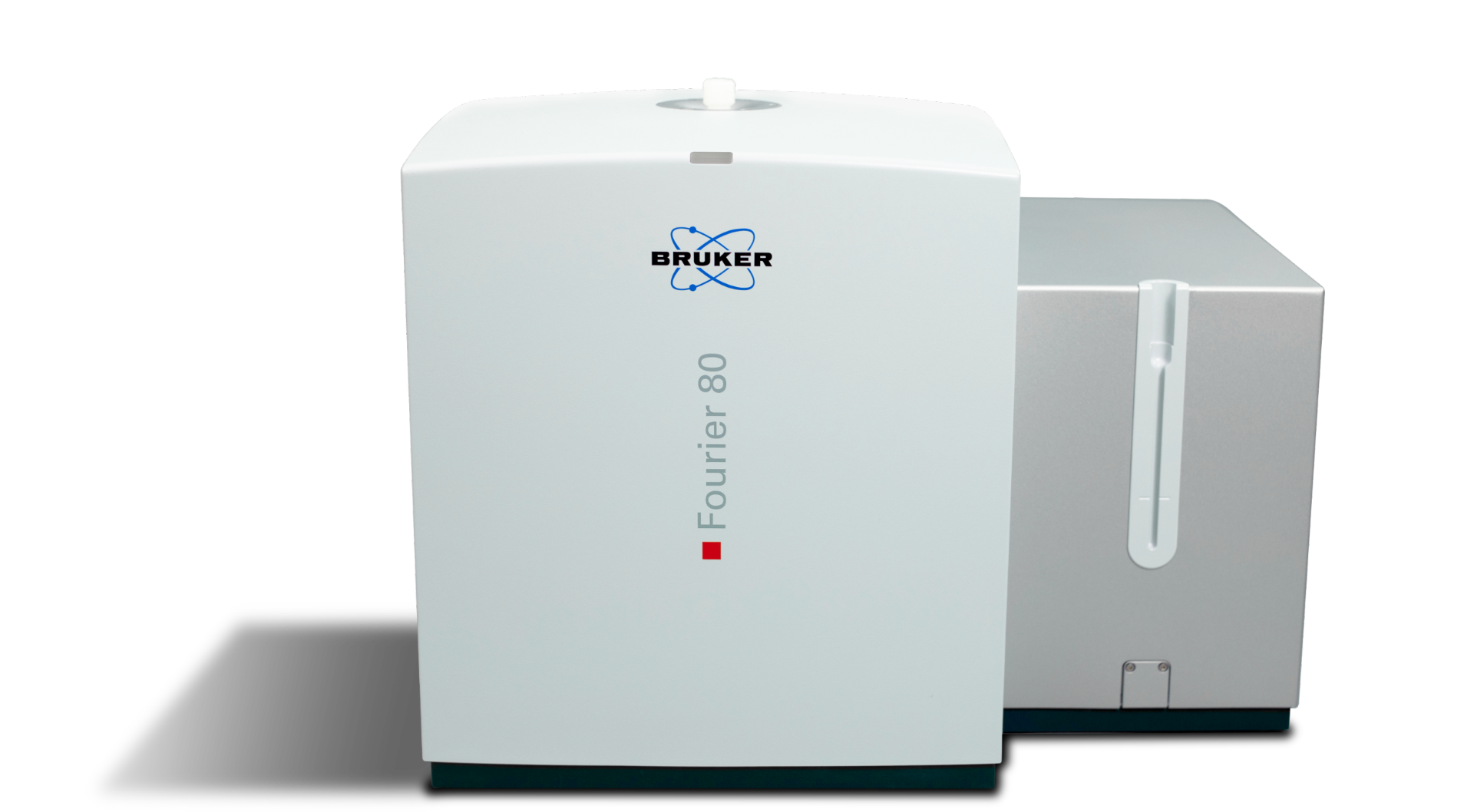

The Fourier 80 is an 80 MHz high-performance nuclear magnetic resonance (NMR) benchtop spectrometer designed for the routine laboratory in either research facilities or university settings.

Download Brochure
Join Educate2Resonate

특징

Features

See the Fourier 80 in action!
See how the Fourier 80 can be used in labs with high-field systems to maximize productivity.
Adjustable Temperature for Fourier 80

Fourier 80 Benefits

  • Compact footprint, designed for the routine laboratory use
  • Easy maintenance and minimal cost of ownership
  • Perform complex molecular analysis
  • Provides higher sample throughput
  • Optimized synthesis and process control directly on the bench
  • Automated data interpretation
  • Use Bruker high-field system workflows on the benchtop
  • Suitable for comprehensive range of applications
  • Reduces errors and maximizes efficiency

Technical Features

  • 80-MHz high performance, cryogen-free permanent magnet
  • Superior spectral quality for precise results
  • Automation for up to 120 samples
  • Adjustable temperature (25-60°C)
  • On-line reaction monitoring with patented temperature-controlled transfer lines and controlled reaction path
  • Pulsed field gradient
  • Full flexibility with use of TopSpin software
  • GoScan software provides pre-defined, dedicated workflows
  • Push-button operation

Applications

  • Structure verification
  • Process optimization & control
  • Academic/Basic Research and advance discovery
  • Forensics and narcotics profiling
  • Authenticity and quality analysis of olive oil
  • Quantification of ethanol content in hand-sanitizers
  • For hands-on training in colleges and universities

응용

Applications

Education for EduLab

Science students should learn a wide range of analytical techniques, but the infrastructure and maintenance needs of full-blown Nuclear Magnetic Resonance (NMR) and Electron Spin Resonance (ESR) spectrometers can limit access. So, Bruker has created special editions of FT-NMR and microESR benchtop instruments for colleges and universities to be used for a wide range of experiments in a teaching laboratory.
Read more

Narcotics Analysis for CrimeLab

In the field of forensics, the chemical identification of unknown substances is an emerging challenge. Narcotics and other drugs are often unidentified, new psychoactive substances require sophisticated analytical techniques such as NMR for identification.
Read more

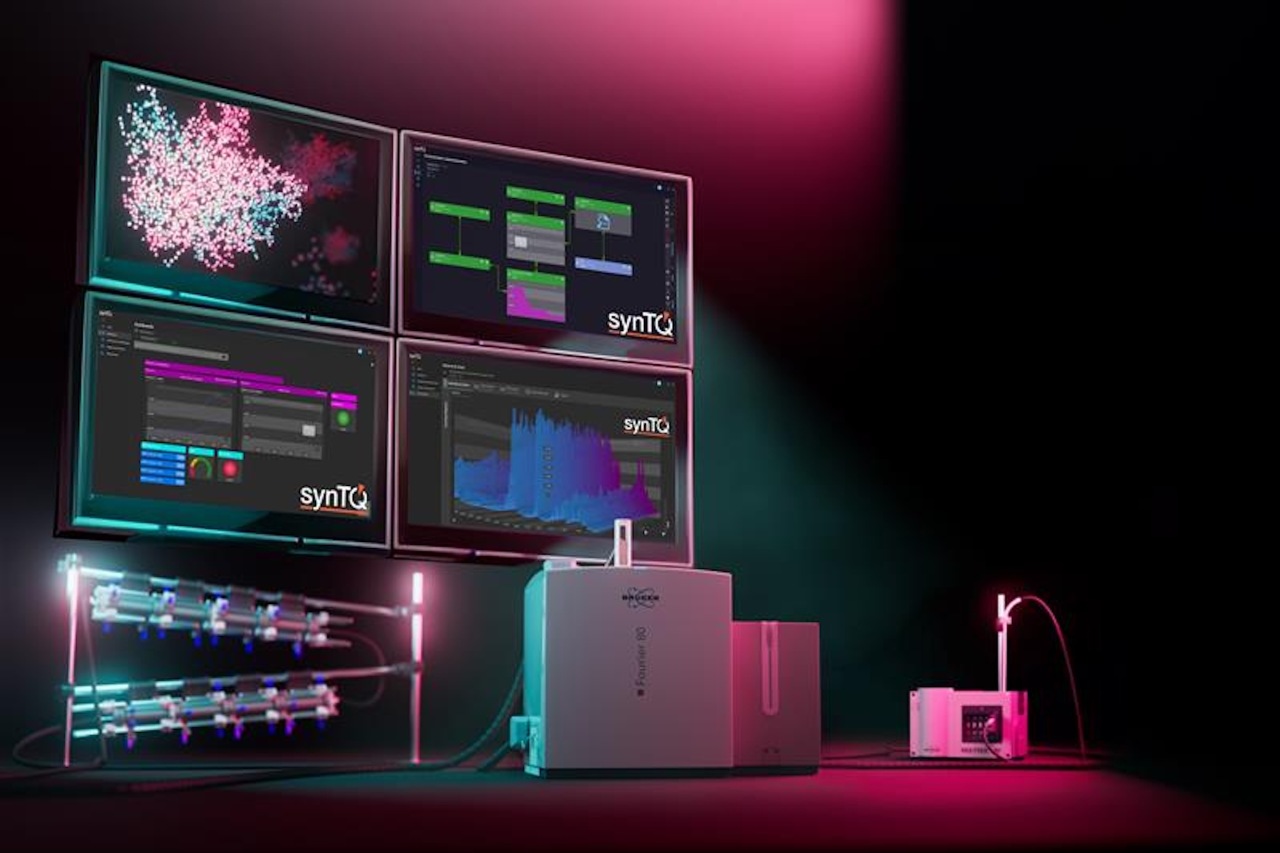

Reaction Monitoring for RxnLab and RxnLite

Designed for the analysis of chemical and bioprocesses by NMR, InsightMR portfolio is ideal for both industrial and academic scientists studying, optimizing and controlling reactions. InsightMR’s two components, a flow unit and dedicated software, enable online monitoring of (bio)chemical reactions in real-time under real process conditions.
Read more

NMR for Olive Oil Profiling

Strengthen your brand’s image and ensure your product’s quality and authenticity with NMR-based Olive Oil-Profiling
Read more

Industry/Hygiene Solutions

Hand hygiene has been at the center of the global response to the COVID-19 pandemic, with alcohol-based sanitizers playing a key role. However, several reports indicate that hand sanitizer fraud is prevalent. Rapid testing methods such as benchtop Nuclear Magnetic Resonance (NMR) spectroscopy can determine the alcohol content or percentage volume (% vol) of hand sanitizers in seconds, preventing fraud.
Application Note

Regulated Environments

GxP enabling kit with new software tools specially designed for state-of-the-art data integrity and compliance according to 21 CFR, part 11 principles.
Read more

Chemistry application for ChemLab

Bruker’s chemical analysis and metrology solutions accelerate the development of future chemical products and help ensure better product quality and performance.
Read more

NMR for Poloxamers/Polymers

This application note describes how Bruker’s FT-NMR benchtop spectrometer, the Fourier 80, was used to quantify the oxyethylene weight percentage in poloxamers.
Application Note

End to End Mixture analysis with Benchtop NMR

The Fourier80 Chem Lab with Mixture Profiling Module is a non-expert NMR solution for routine analysis in manufacturing environments​.
Read More

All Fourier 80 related Application Notes:

Application Notes

사양

Specifications

Operating Frequency: 80 MHz (1H) (Corresponds to 1.88 Tesla)
Nuclei: 1H,
1H/13C, 1H/31P or 1H/129Xe
1H/13C|19F
1H/7Li
(contact us for more)
1H Sensitivity: Measured on 1% Ethyl Benzene:
1H-only systems: ≥ 240:1 or ≥ 220:1 when pulsed field gradient (PFG) incl.
1H/X systems: ≥ 180:1 or ≥ 160:1 when PFG incl.
1H/13C|19F: ≥ 110:1, optimized for the x-channel, PFG incl., with 13C: ≥ 20:1 (100% ethyl benzene) and 19F: ≥ 110:1 (0,5% TFT in CDIC3)
1H/7Li: ≥ 90:1 optimized for the x-channel, PFG incl., with 7Li: ≥ 2000:1 (1M LiBr in D2O)
Gradient strength: ≥ 0.25 T/m (25 G/cm)
Adjustable temperature: 25°C - 60°C*
Automation: PAL RSI sample changer; up to 120 samples + 12 reference samples
1H Resolution: (@ 50/0.55/ 0.11% signal height)
 Standard: ≤ 0.4/ 15/ 30 Hz
HD option: ≤ 0.3/ 10/ 15 Hz
Digital Lock: External, no deuterated solvents needed
Sample Tubes: standard 5mm diameter, 7’’-long NMR tubes; compatible with Young tubes
Dimensions: ~50 cm x 70 cm x 60 cm (Height x Width x Depth)
Weight: ~94 kg
Lab Temperature: 18-28°C; Measurements at sample temperature > 40°C: 18-25°C
Lab Infrastructure needed: no liquid nitrogen or helium required
no water cooling required
power consumption typically <300 W
power: 100 – 240 V, 50 – 60 Hz
no additional venting required
AT needs compressed air or nitrogen at 5 bar max.
  *Incoming supply gas temperature must be min.5°C lower than the target temperature

부속품

Accessories

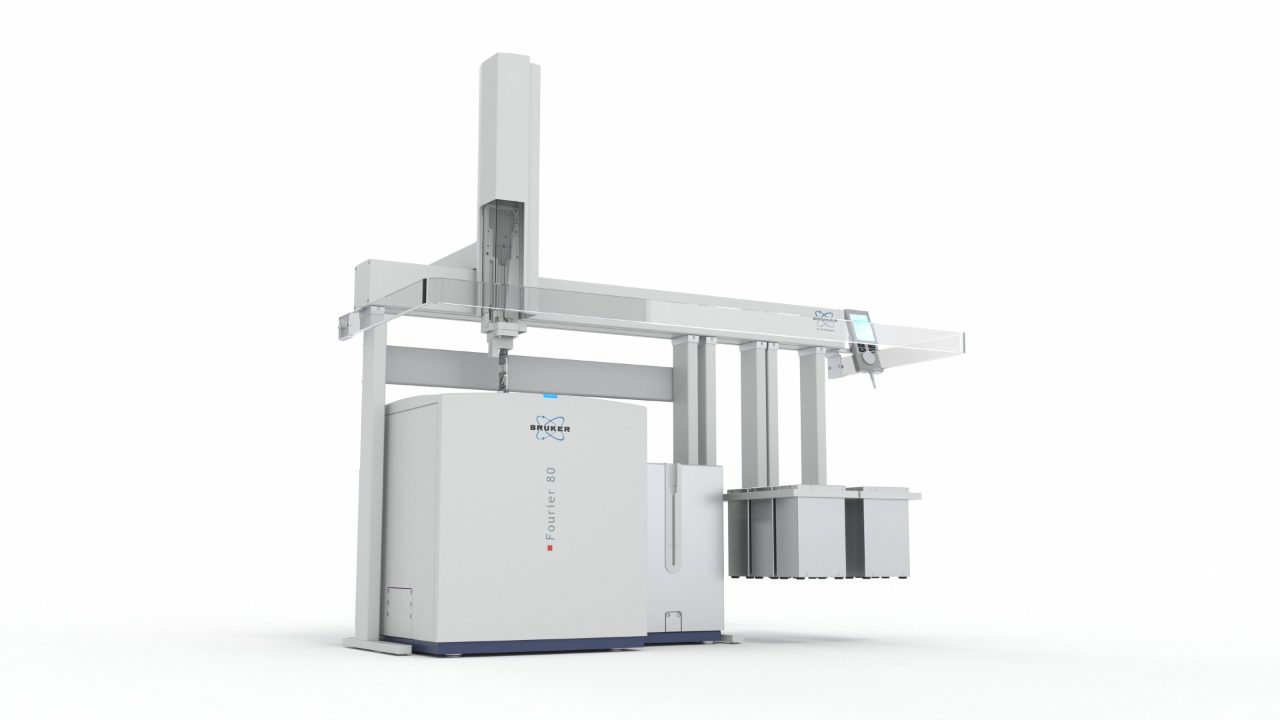

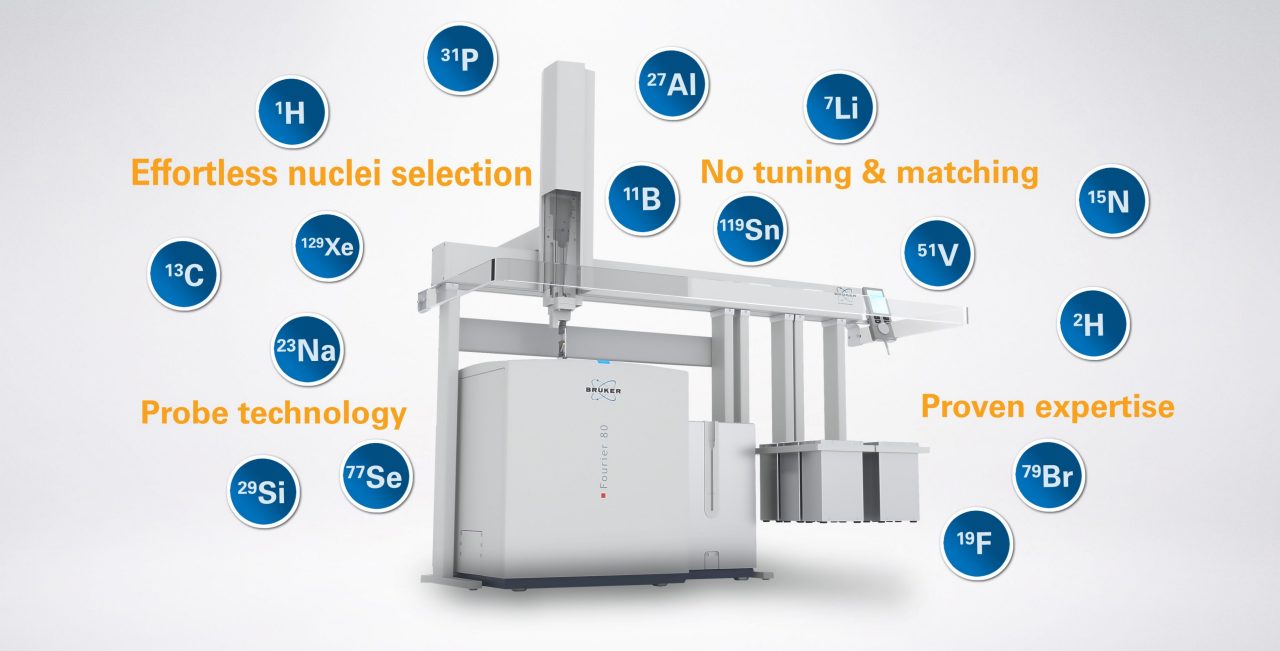

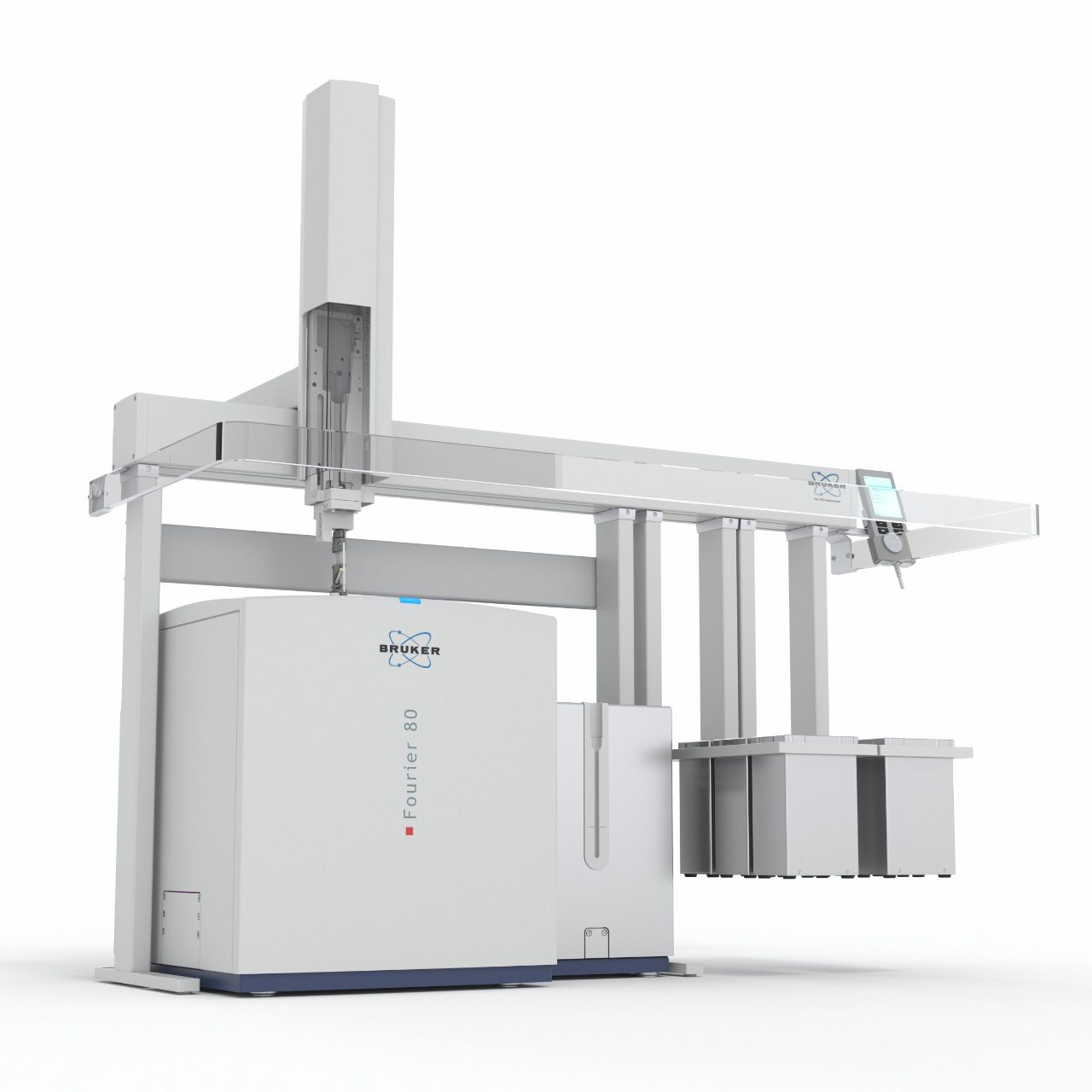

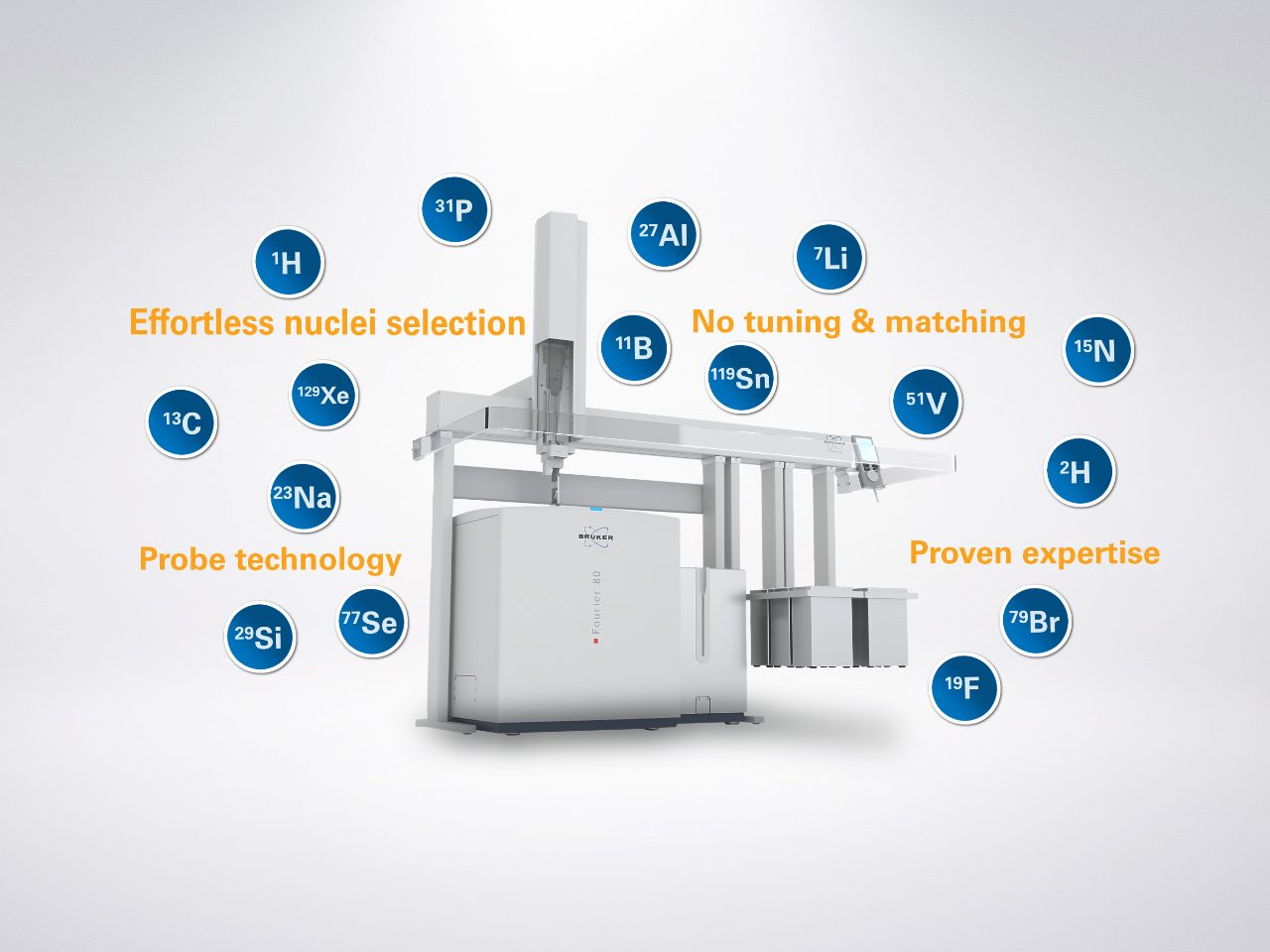

Fourier 80 with PAL RSI

Tackle the challenges. Remove the barriers.
For basic research, the Fourier offers unprecedented flexibility. It can be operated with the same TopSpin™ software that runs Bruker’s high-field NMR instruments, so scientists have the freedom to adjust their workflows and techniques from the benchtop to the dedicated NMR lab, and back.
Fourier CrimeLab
Get unequivocal forensic evidence about unknown substances
Fourier ChemLab
Convenient, straightforward access to NMR structure verification

Fourier EduLab

Give students hands-on experience with the power of NMR

RxnLab

The Fourier 80 also features the advanced reaction monitoring capabilities of Fourier RxnLab™, which offers InsightMR™ patented insulated reaction paths and control software to minimize temperature loss, optimize process control, and monitor reaction outcomes. 더 읽어보기

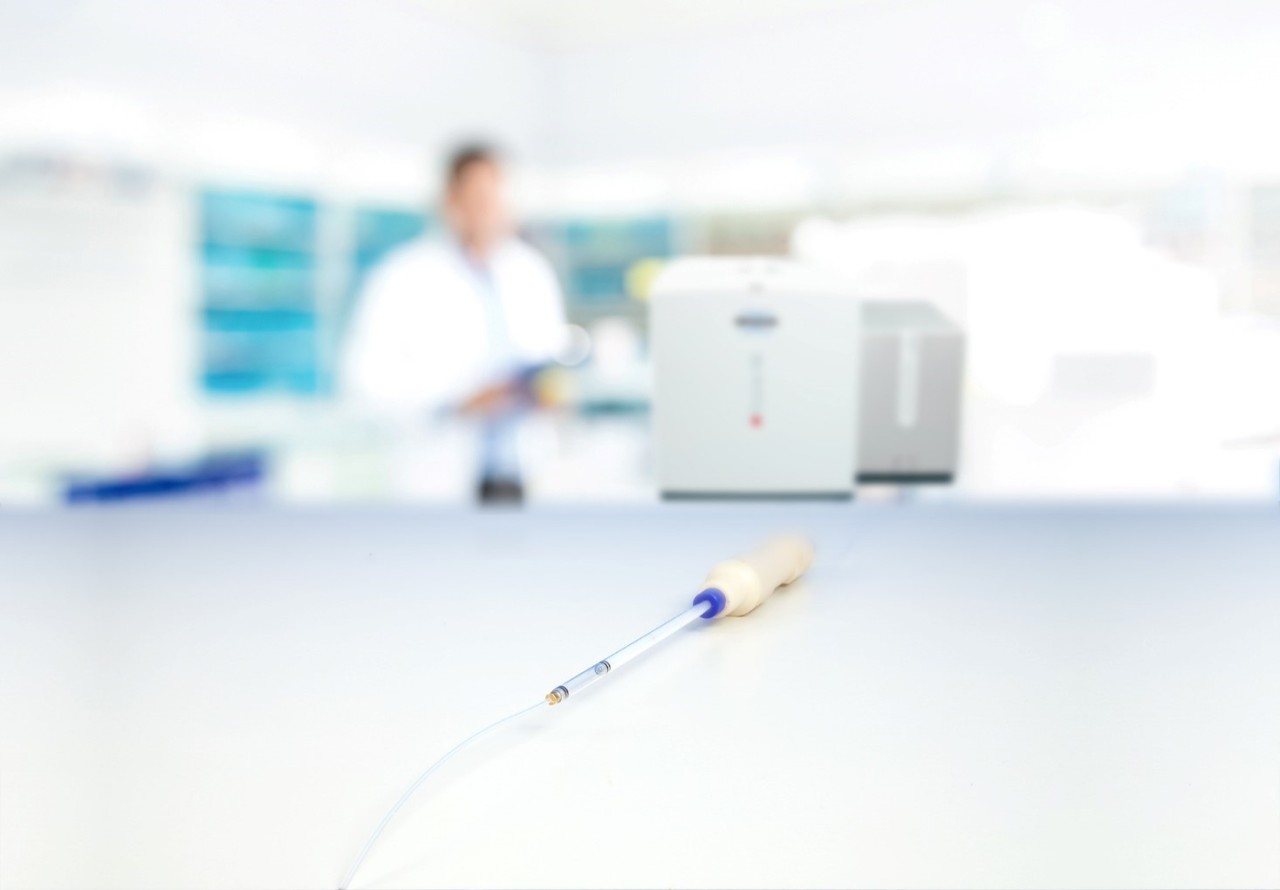

Flow unit (InsightMR)

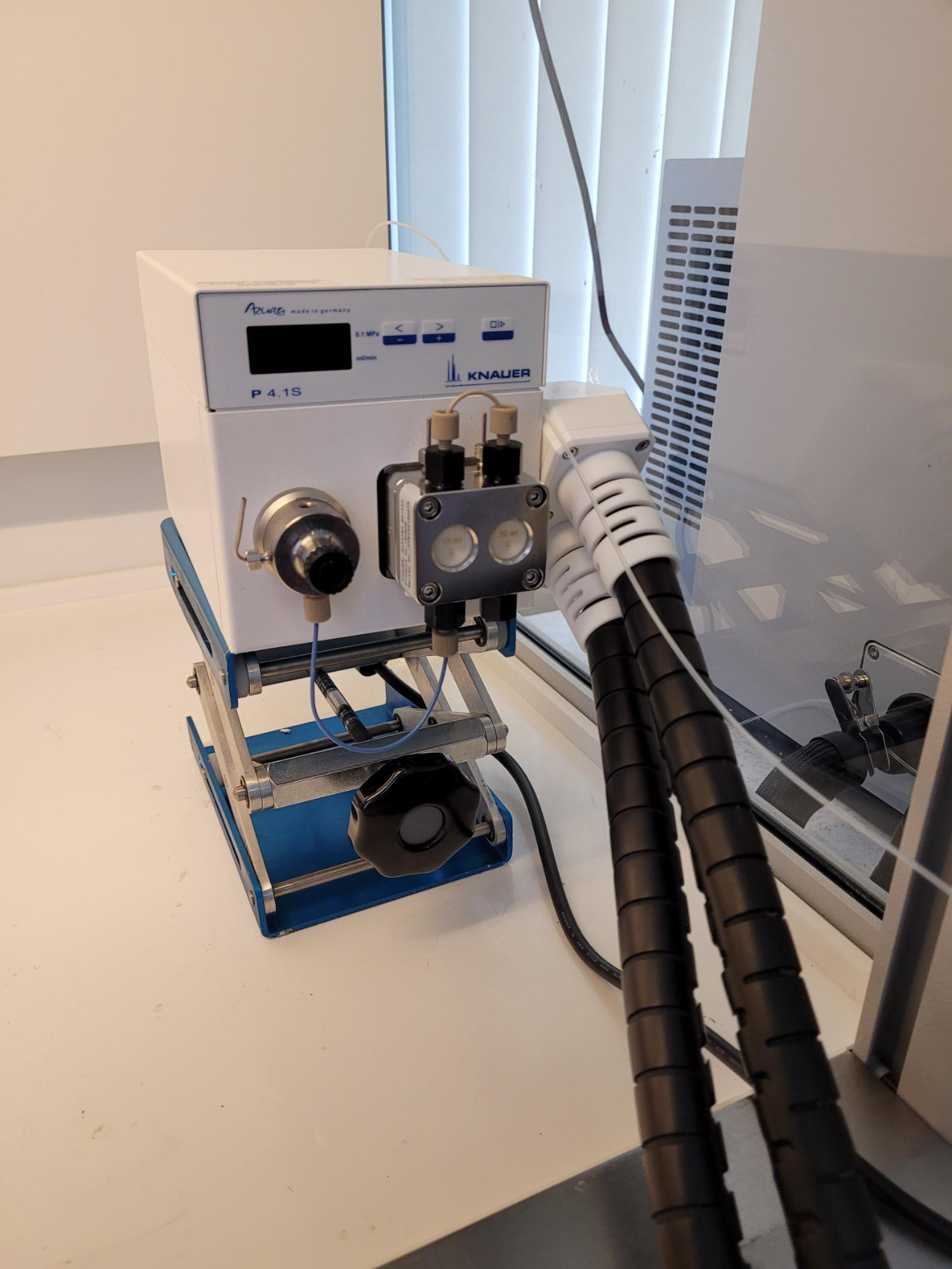

HPLC pump (RxnLab accessory optionally available)

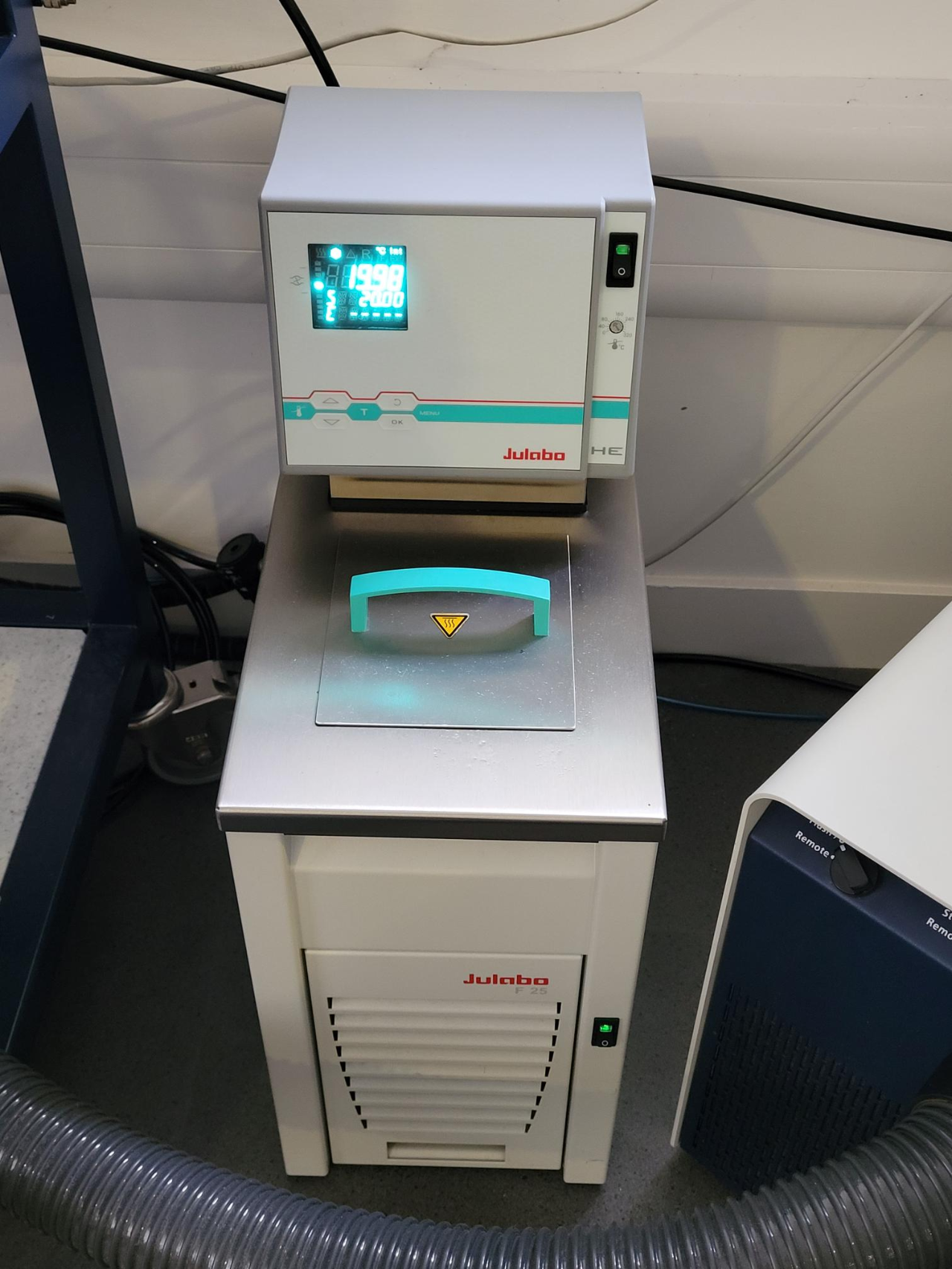

Thermostat bath (RxnLab accessory optionally available)

소프트웨어

Software

TopSpin

TopSpin

Bruker’s TopSpin™ software package for NMR data analysis and the acquisition and processing of NMR spectra.
더 읽어보기
GoScan

GoScan

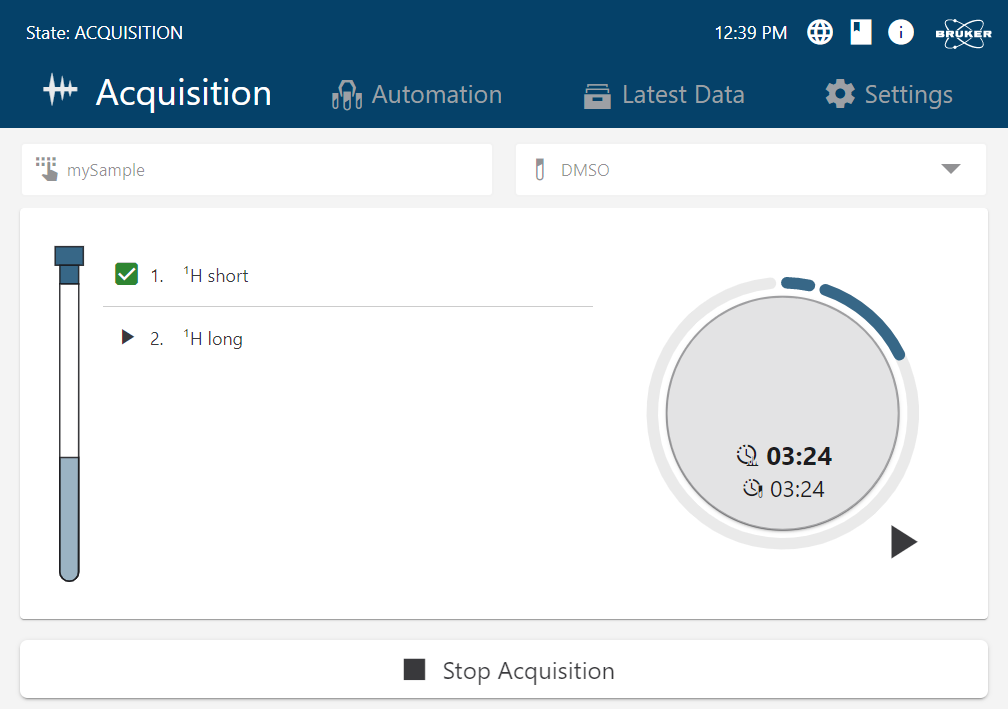

A push-button NMR software solution that guides users through easy-to-use dedicated workflows.
더 읽어보기
Bruker_Flow_4

InsightMR

Designed to monitor reactions, enhance reaction understanding, gain confidence when transferring processes from lab to plant.
더 읽어보기
GXP

GxP Readiness Kit

GxP enabling kit with new software tools specially designed for state-of-the-art data integrity and compliance according to 21 CFR, part 11 principles.
더 읽어보기

웨비나

Webinars

All Fourier 80 related webinars:

Webinars

추천 글

Testimonials

소모품

Consumables

Please add a Collection ID

뉴스 및 이벤트

News & Events

March 15, 2022

Introducing NMR Olive Oil-Profiling 1.0™ Solution for Quality Control and Authenticity Verification to Enhance Supply Chain Integrity

ETTLINGEN, Germany, March 15, 2022 – Bruker today launches a new NMR Olive Oil-Profiling 1.0™ solution for authenticity verification and quality control of olive oil, which is one of the most adulterated food products worldwide. This further expands Bruker’s food analysis solutions portfolio and will be offered on two nuclear magnetic resonance (NMR) platforms, the established NMR FoodScreener™ 400 MHz platform, and also on the cryogen-free Fourier 80 benchtop system.
Read More
March 10, 2022

Announcing New Fourier 80 Benchtop FT-NMR Capabilities for Pharmaceutical and Food Analysis Markets

BILLERICA, Massachussetts – March 10, 2022: Bruker Corporation (Nasdaq: BRKR) today announces new capabilities for its benchtop Fourier transform (FT) nuclear magnetic resonance (NMR) spectrometer, the Fourier 80, which does not require special lab infrastructure or cryogens, and offers excellent 1H sensitivity of 200:1 for gradient spectroscopy proton probes. A new adjustable temperature option increases experimental flexibilty, while new solutions for pharma and food analysis provide improved synthesis and process control, bringing NMR capabilities to more research and analytical laboratories.
read more
October 19, 2020

Bruker Introduces Routine Gradient Spectroscopy and Robust, Industry-Standard PAL® Automation on High-Performance Fourier™ 80 Benchtop FT-NMR System

ZUERICH--(BUSINESS WIRE)-- Bruker Corporation (Nasdaq: BRKR) announces the European launch of the high-performance Fourier™ 80 system, a next-generation, 80 MHz Fourier Transform Nuclear Magnetic Resonance (FT-NMR) benchtop spectrometer, now with major new capabilities.
Read More

All Fourier 80 related news:

News

All Magnetic Resonance Events:

Events

추가 정보

More Information

Keynote speech of the Fourier 80 - a next-generation, high-performance 80 MHz FT-NMR benchtop spectrometer.
Learn more about the PAL Sample Changer for the Fourier 80
Hear how students can learn about NMR by analyzing coffee samples.
