ブラカーは、ナノインデンテーションシステムの世界的リーダーとして、長年の開発実績をもとに、各種顕微鏡と組み合わせるナノインデンテーションシステムを開発しました。SEM/TEM内でのナノ力学特性が一目瞭然となり、新たなナノ力学特性、ナノトライボロジー特性評価手法をご提供します。定量的なナノ力学特性評価試験と顕微鏡の観察技術を組み合わせることで、ナノスケールでの力学挙動をより正確にin-situ(その場観察)で確認することができます。
To learn more, continue reading, contact us, or see FAQs about this product.

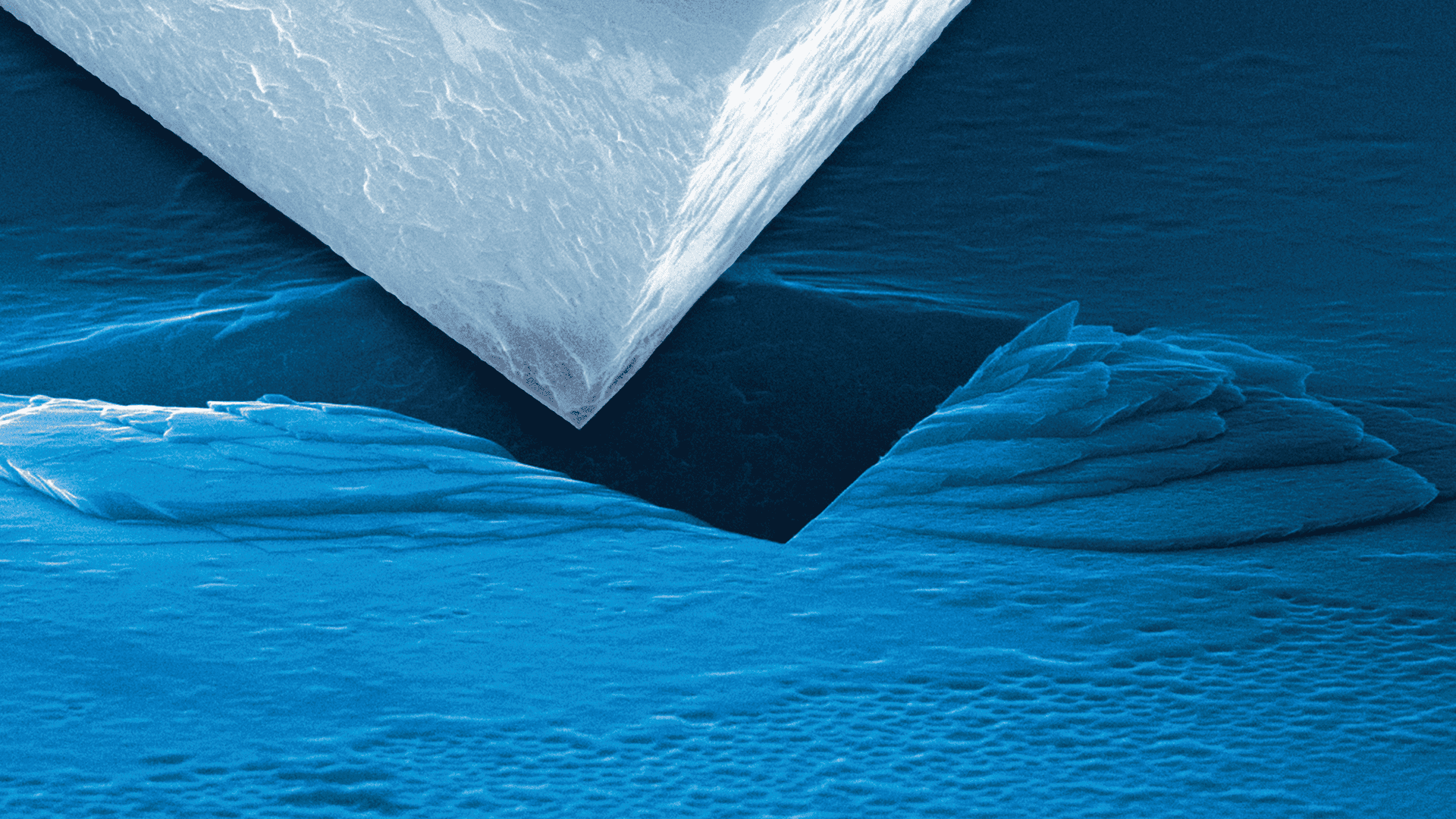

ナノインデンテーション
ナノスケールの測定箇所、荷重と変位の精密な制御により、多種多様な材料について、硬さ・弾性率などの基本的な力学特性の定量評価が可能です。
引張試験
ドッグボーン試験片、薄膜、ナノワイヤについて直接引張試験もしくはPush-to-Pull (PTP)試験を行うことにより、従来の方法では難しかった低次元材料の応力-歪み挙動の評価をその場観察することができます。
曲げ試験
測定前にSEMを用いて、試料サイズの確認、測定箇所の調整が可能。単相材料、複合材料、積層材料などの曲げ剛性と破壊靭性の測定が簡単にできます。
圧縮試験
ピラー、粒子、その他の小さな構造体について、変形メカニズムをリアルタイムで観察しながら圧縮試験を行い、応力-歪み挙動や降伏特性を測定することが可能です。測定箇所はSEMイメージングを用いて正確に決めることができます。
In-situ nanoindentation is a technique that measures mechanical properties (such as hardness, modulus, fracture, and creep) at the nanoscale while observing deformation in real time inside an SEM or TEM, or with an optical microscope.
In-situ nanoindentation is suitable for metals, ceramics, polymers, thin films, coatings, biological materials, and nanostructures, such as nanowires and MEMS devices.

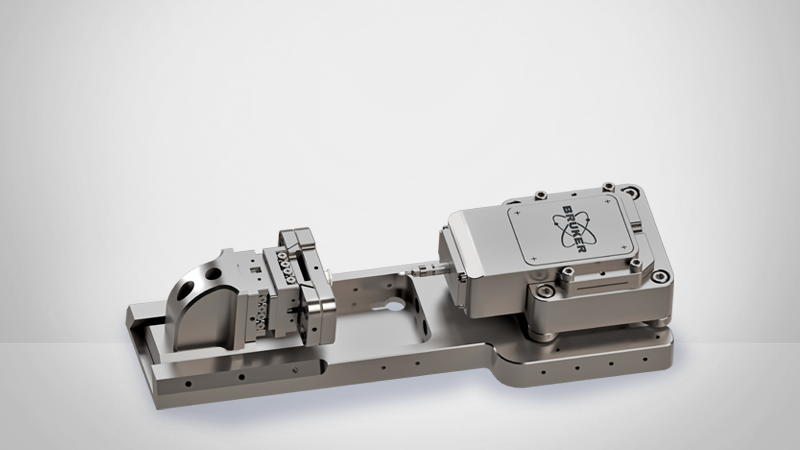

This depends on the systems and transducer technology. Bruker PI Envision SEM PicoIndenter offers load range up to 250 mN and displacement to 150 μm, while PI 89 offers max load to 3.5 N and max displacement to 150 μm.
Yes, with the appropriate heating or cooling stages, nanoindentation can be performed at high temperatures or cryogenic conditions. Bruker’s Hysitron PI 85 and Envision offer a temperature range of room temperature to 800°C, whereas PI 89 has a range of -150°C to 1000°C.
Yes, advanced systems such as the Bruker PI 89 support high strain rate (>104 1/s) testing across different temperature conditions.
The force-displacement curve is analyzed to determine hardness, modulus, creep, fracture toughness, and other material properties. Models such as the Oliver-Pharr method are commonly used.
It allows direct observation of crack initiation, fracture behavior, and plastic deformation mechanisms under controlled loading.
Bruker offers TriboScan and Tribo iQ software solutions for data acquisition, test control, and large-scale data analysis. Find out more about Tribo iQ here.
Yes, Bruker’s Hysitron PicoIndenters provide a unique solution for capturing and synchronizing mechanical data collection and video capture from the SEM computer. For more detail about this technique, please contact us.
Bruker offers Push-to-Pull (PTP) and Electrical Push-to-Pull (E-PTP) devices for nano-structure characterization.
