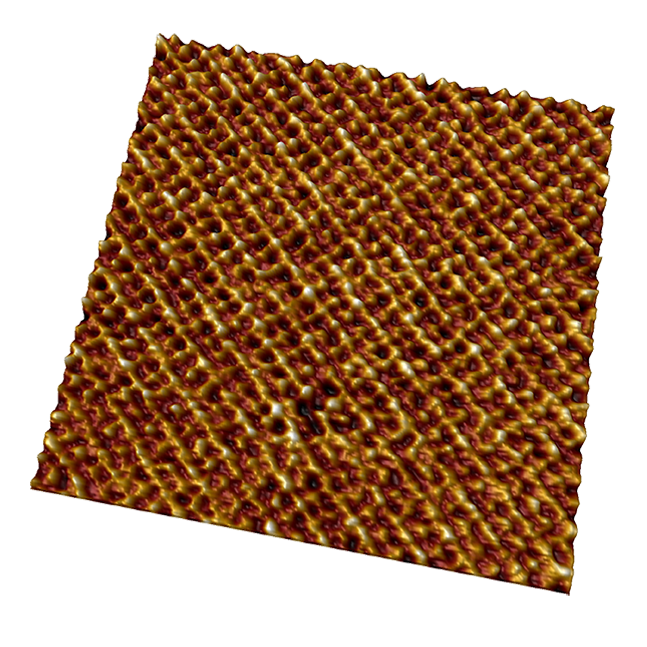

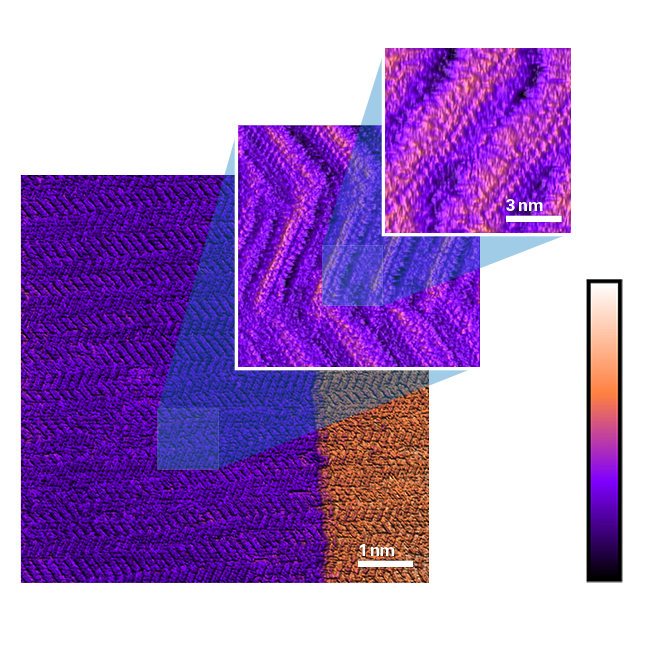

High-Resolution Atomic Force Microscopes for Challenging Research

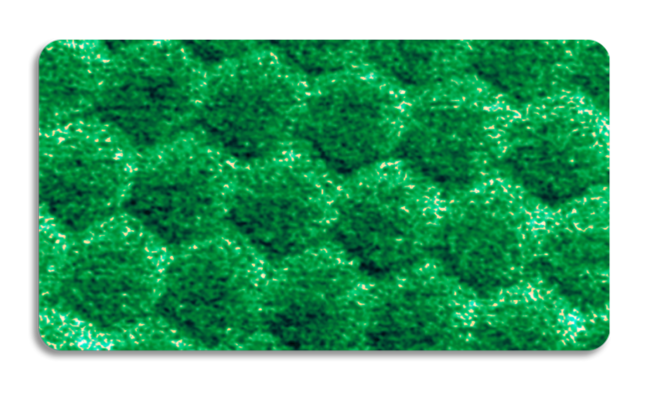

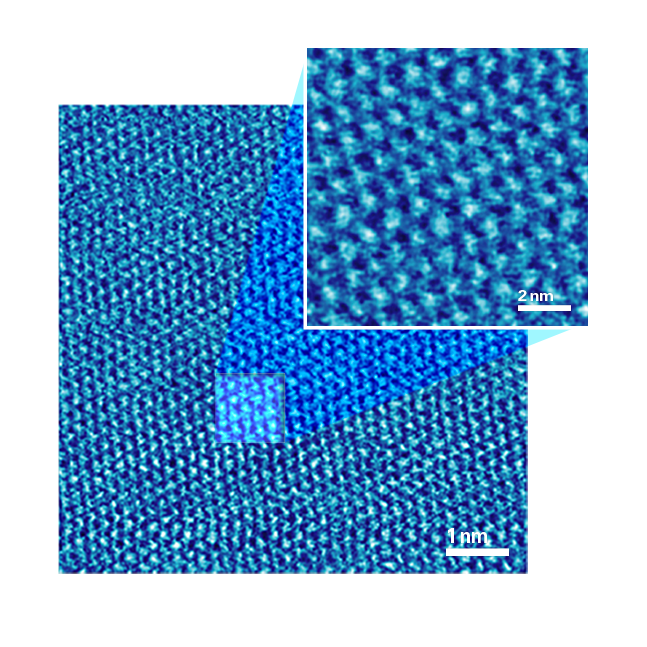

The atomic force microscope (AFM), now entering its fourth decade as a primary technology for advanced materials research, has been used to drive discovery across a nearly countless array of disciplines and applications. Bruker has led the expansion of atomic force microscope capabilities, starting with the introduction of the first commercial system in the 1980s. As the technology has matured, our AFMs — powered by exclusive PeakForce Tapping® technology — have consistently delivered highly reliable high-resolution data and empowered scientists to characterize features on ever more complex samples.

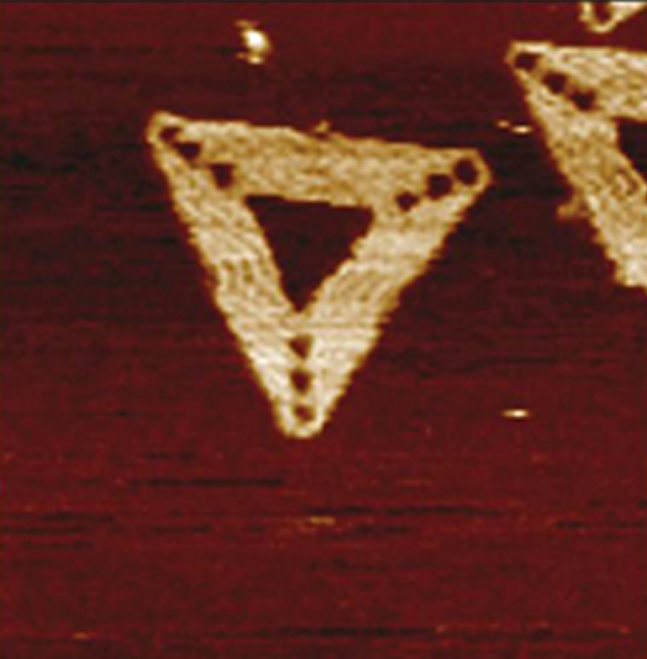

Our continued commitment to making atomic force microscopy more accessible and easier to use for all levels of researchers can be seen through such advances as ScanAsyst Plus, AutoMET, and DataCube. This data quality, reliability, and ease of use extends to more than just topography; scientists in leading labs around the world are using Bruker AFMs to advance new nanomechanical, nanoelectrical, and nanoelectrochemical research, on the order of three peer-reviewed published articles per day.

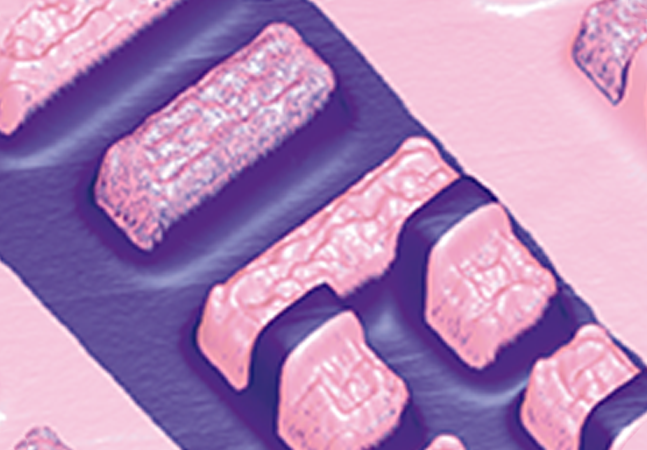

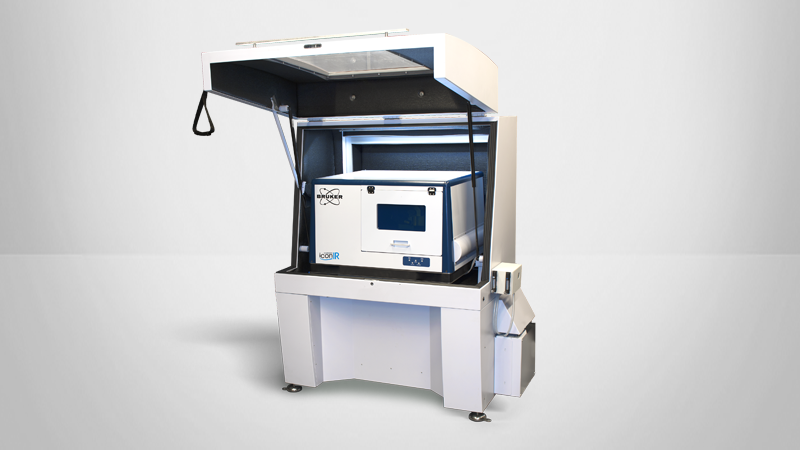

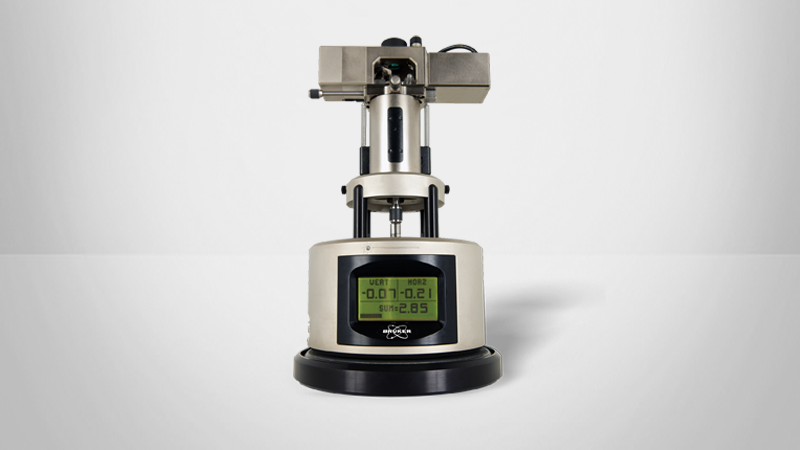

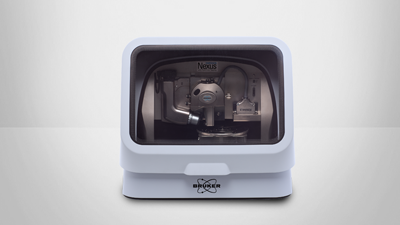

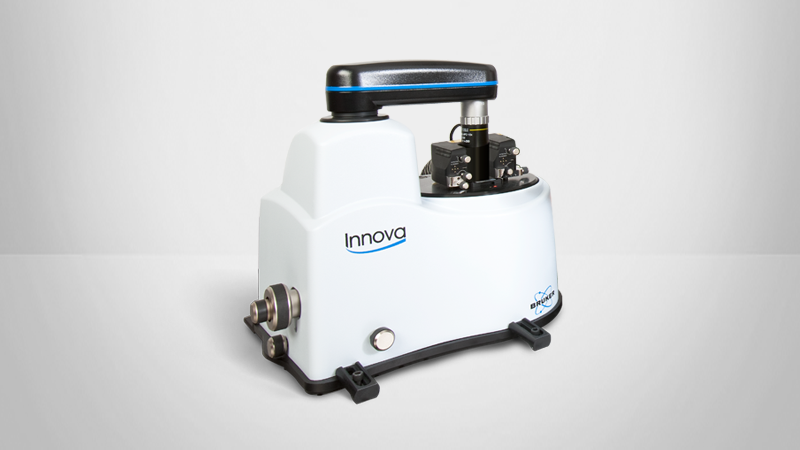

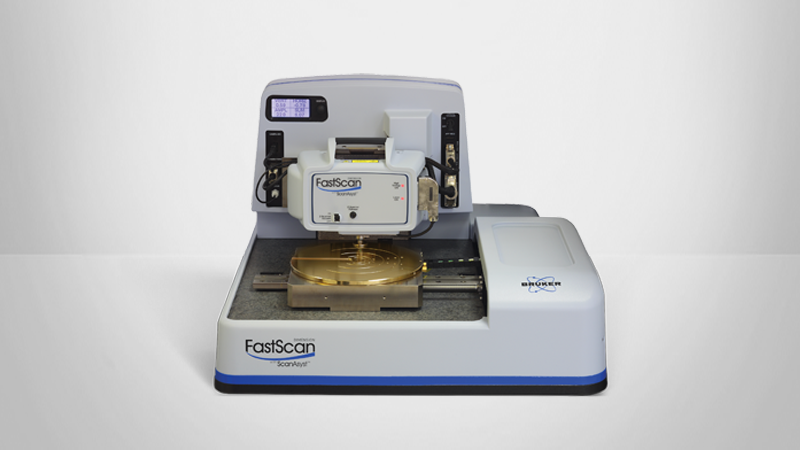

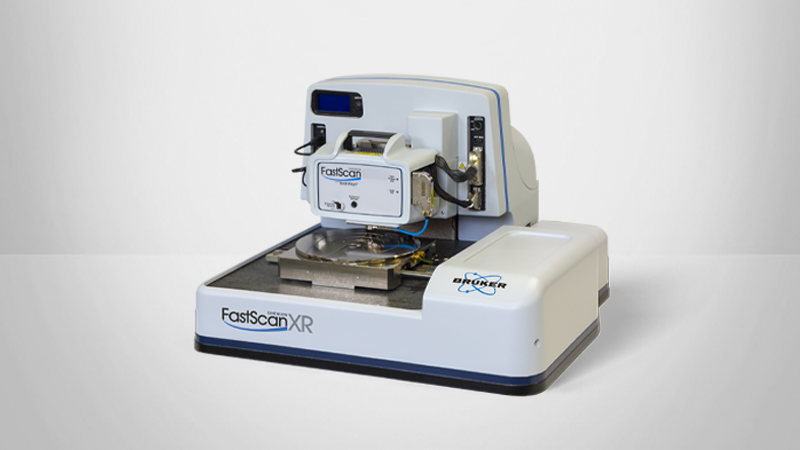

Find the Best Atomic Force Microscope for Your Application
Need help? Contact us to discuss your requirements or see our recommendations for instrument selection.

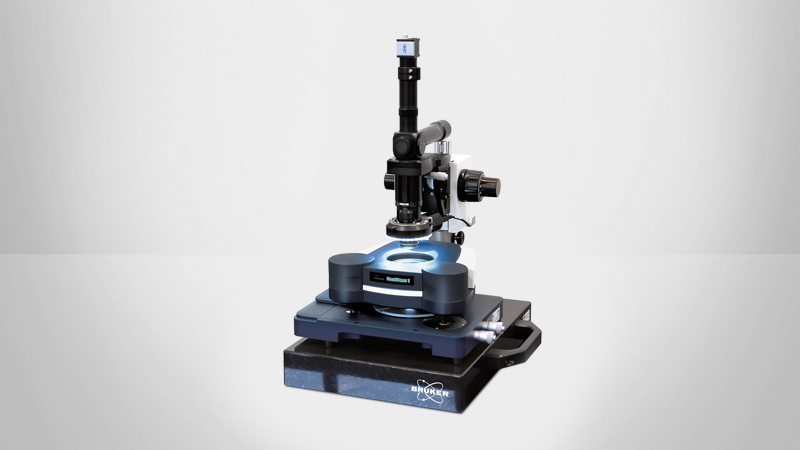

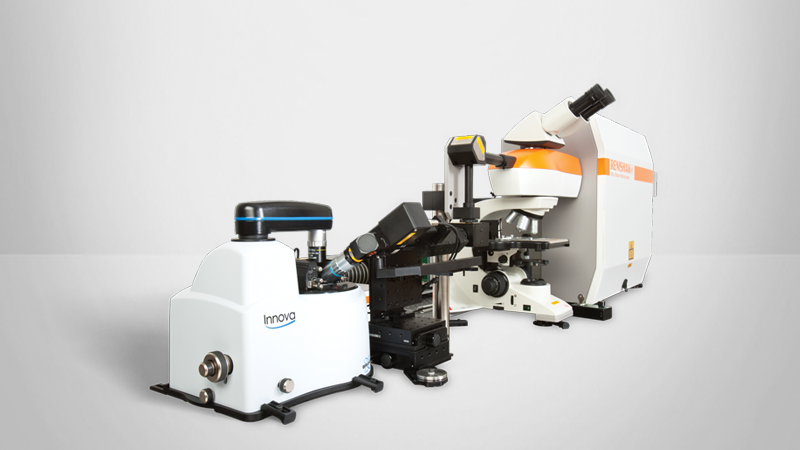

See how to use upgrades and add-ons to customize a Dimension Icon AFM with extended capabilities.

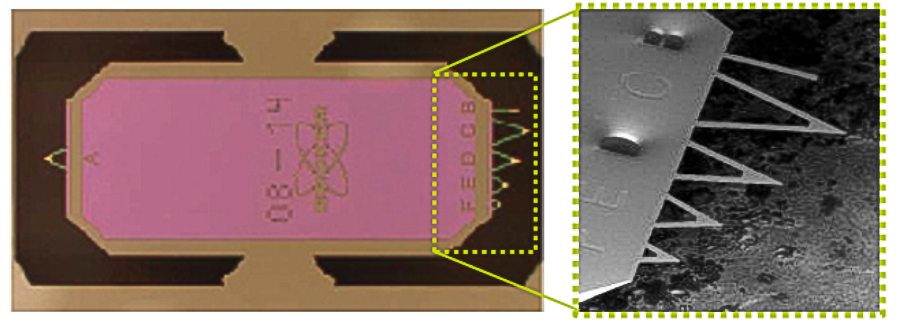

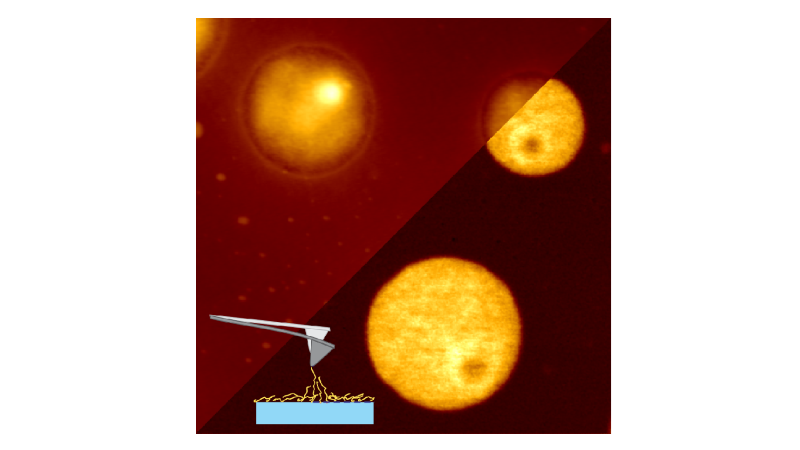

An atomic force microscope uses a probe to measure tip-sample forces as the tip presses against the sample. The AFM probe is a consumable that consists of a sharp tip on a free-moving cantilever mounted on a chip. One or several cantilevers can be mounted on a comparatively large silicon chip (Figure 1).
The geometry and material of both cantilever and tip can be optimized for a given application, resulting in a large library of probe options.
Most AFM probes are made from silicon or silicon nitride. Silicon probes enable stiffer cantilevers and sharper tips, while silicon nitride probes are more durable and flexible. Bruker’s TappingMode probes are generally made from silicon, and contact mode and ScanAsyst probes are generally made from silicon nitride. There is a considerable amount of functionality and flexibility when modifying these common AFM probe materials with coatings or replacing them with individual molecules of interest. The geometry and material of both cantilever and tip can be optimized for a given application, resulting in a large library of probe options on www.BrukerAFMprobes.com.
The elements of a “good” AFM probe are application-dependent. As such, choosing the right AFM probe relies on balancing parameters of interest including stiffness, spring constant, resonant frequency, and quality factor while considering the needs of your application and the AFM mode used.

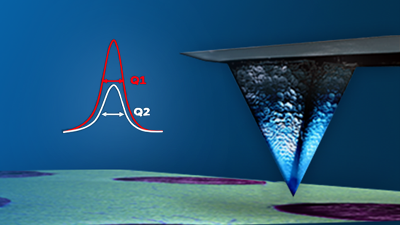

Watch our 2023 webinar "The Fundamentals of AFM Probe Selection" to learn about the functional and experimental considerations for selecting a probe, or our 2024 AFM Probes Webinar to hear our AFM experts' recommendations for probe selection.
Bruker is the only major AFM equipment manufacturer that also owns and operates a probes nanofabrication facility, and our broad experience enables us to design and fabricate a wide range of probe types to directly address the evolving needs of AFM users. For more information and to place an order, visit www.BrukerAFMprobes.com.
LEARN MORE:

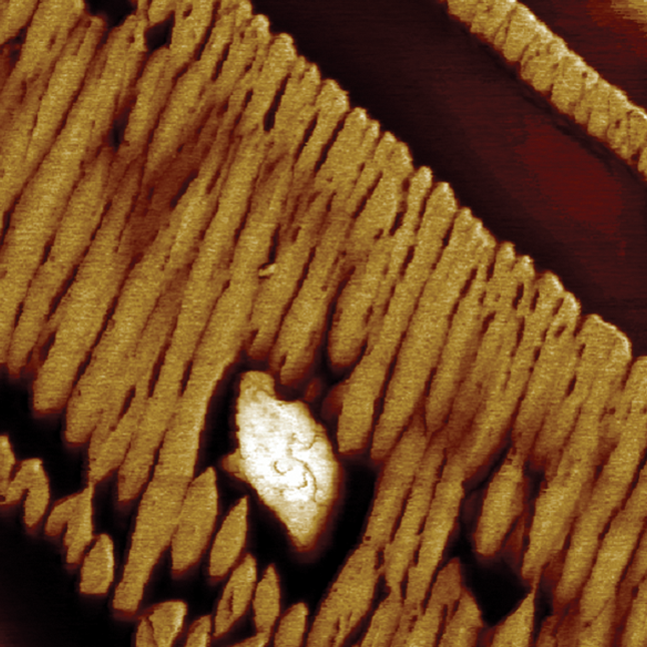

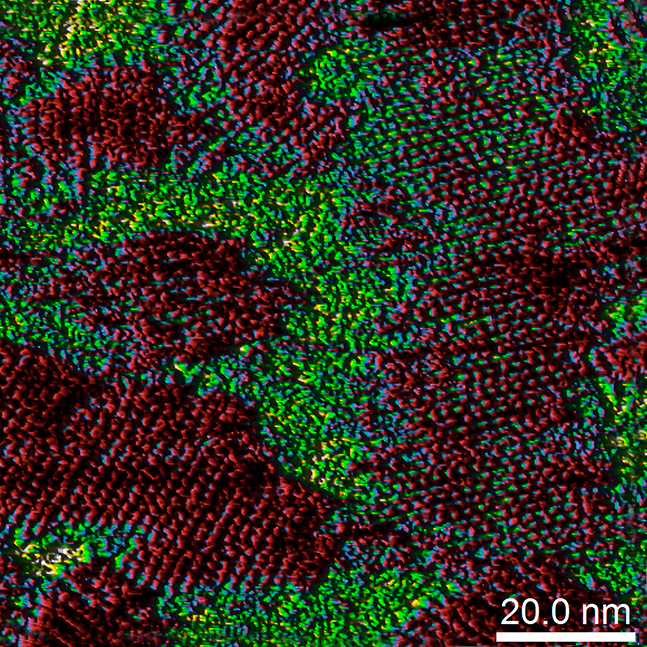

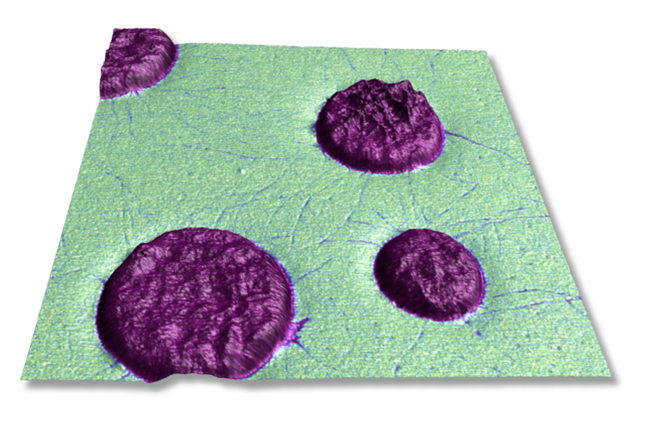

Expand Your Research with World's Best Selection of AFM Modes
With an unrivalled — and still growing — suite of available imaging modes, Bruker has an AFM technique for every investigation.

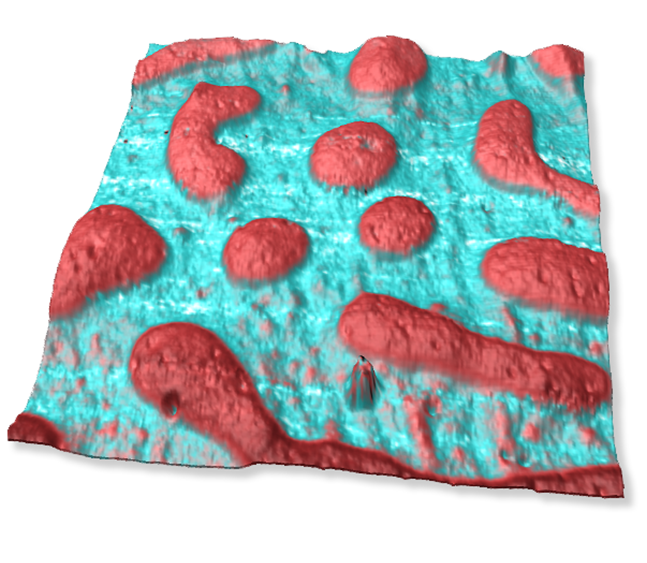

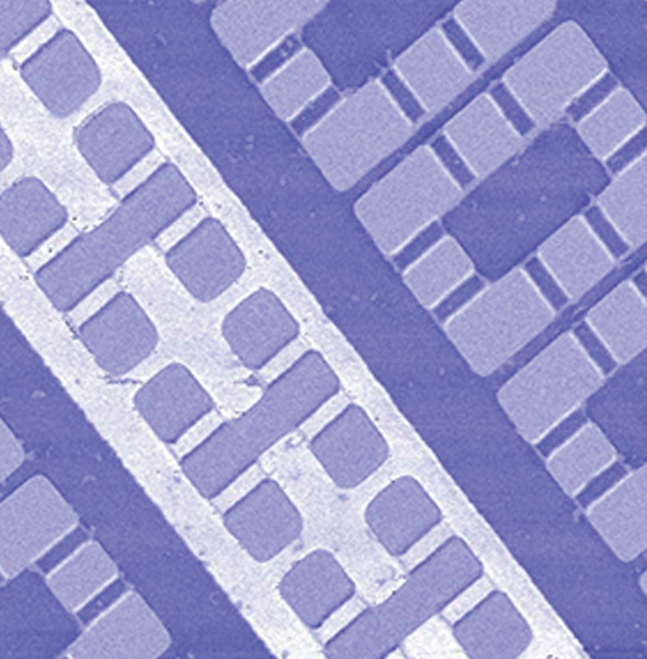

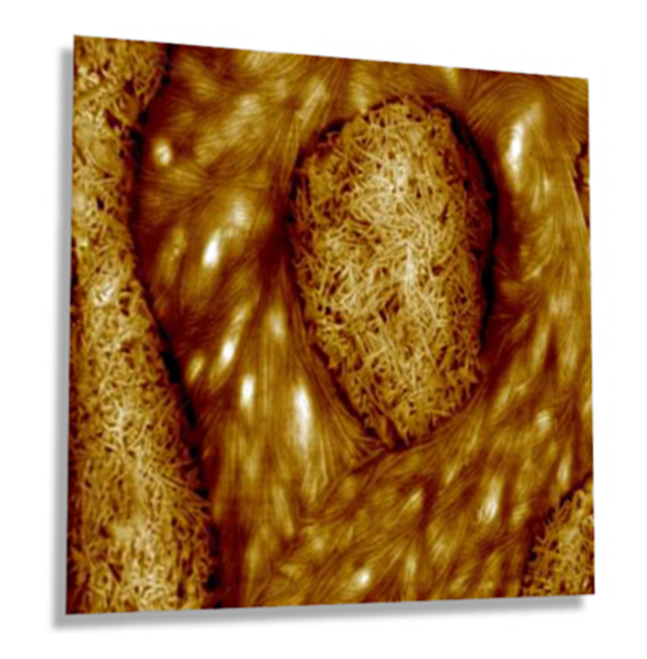

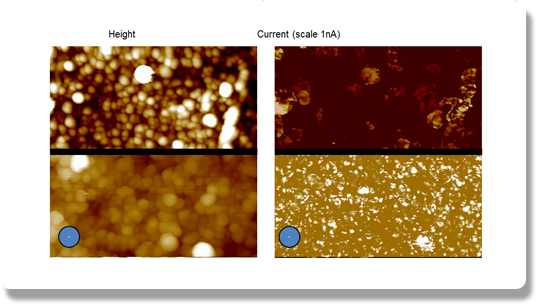

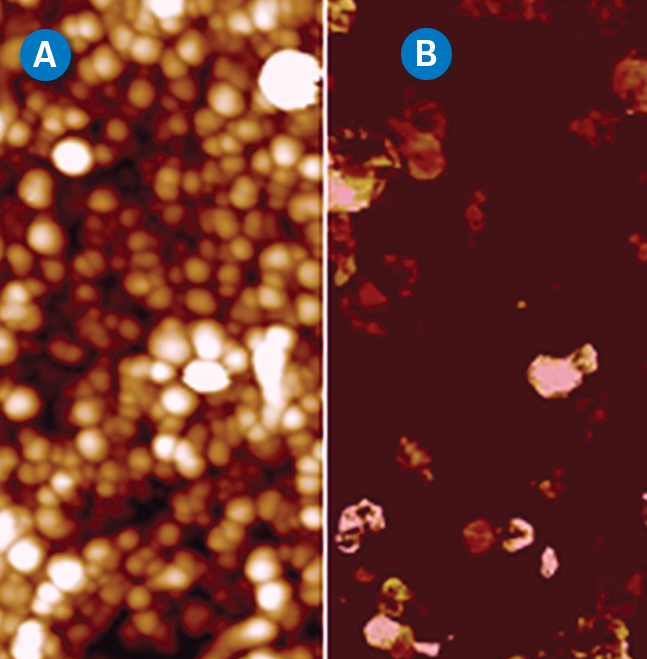

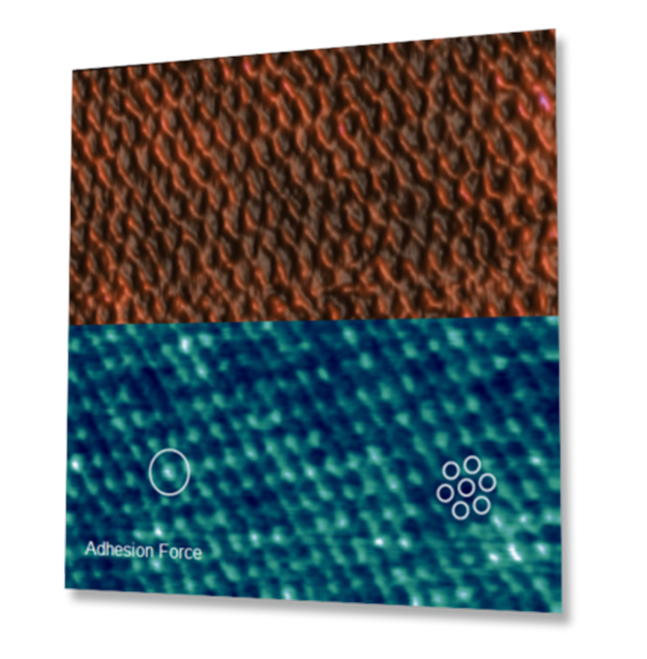

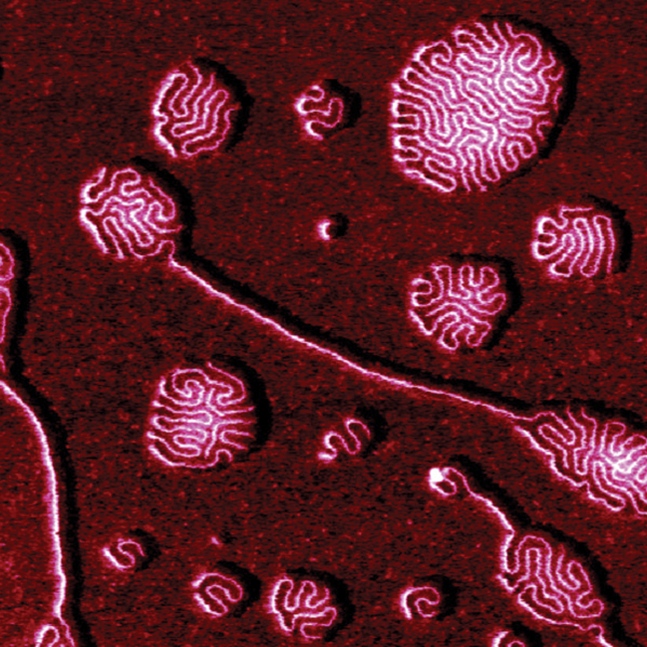

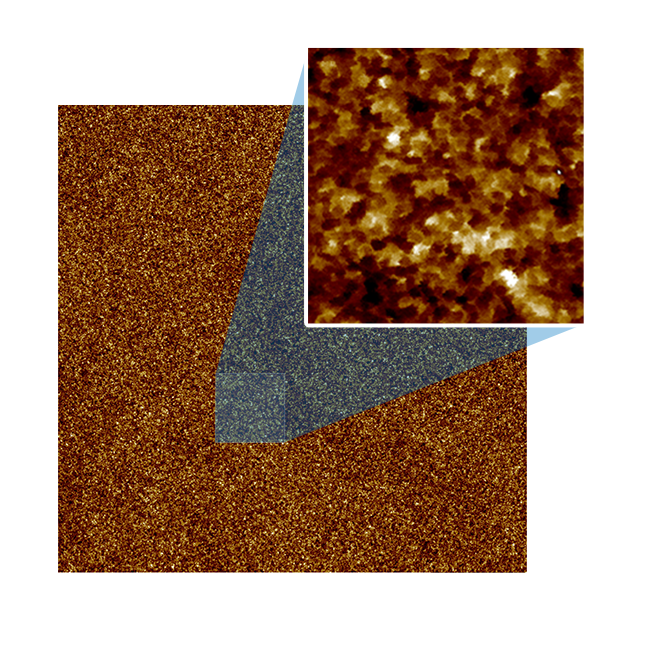

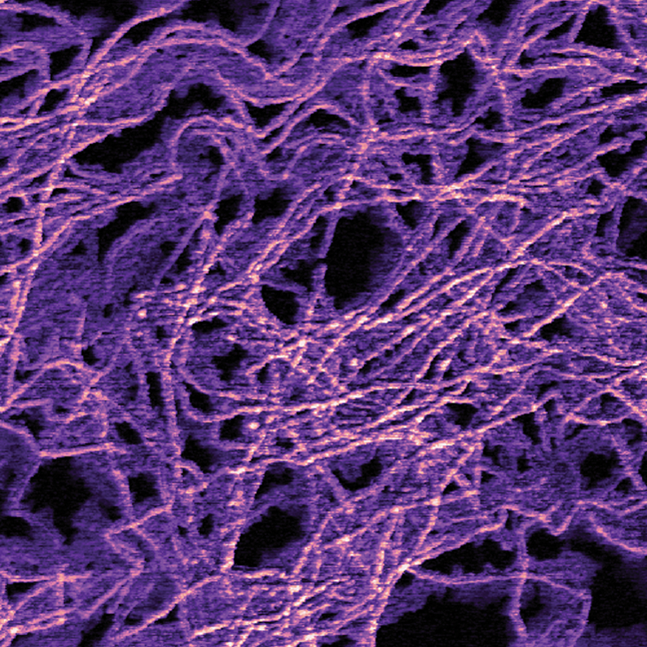

Bruker AFM modes allow researchers to probe their samples’ electrical, magnetic, or materials properties at the nanoscale with unmatched confidence. Bruker’s proprietary PeakForce Tapping technology represents a new core imaging paradigm that provides unprescedented high-resolution imaging, extends AFM measurements into a range of samples not previously accessed, and uniquely enables simultaneous nanoscale property mapping.

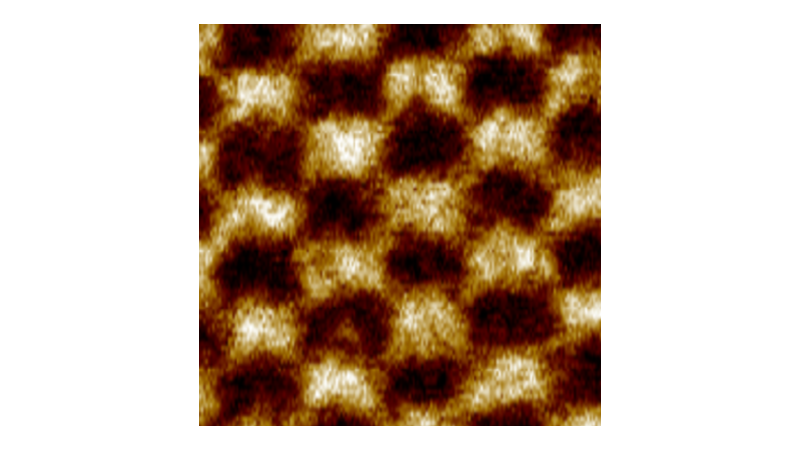

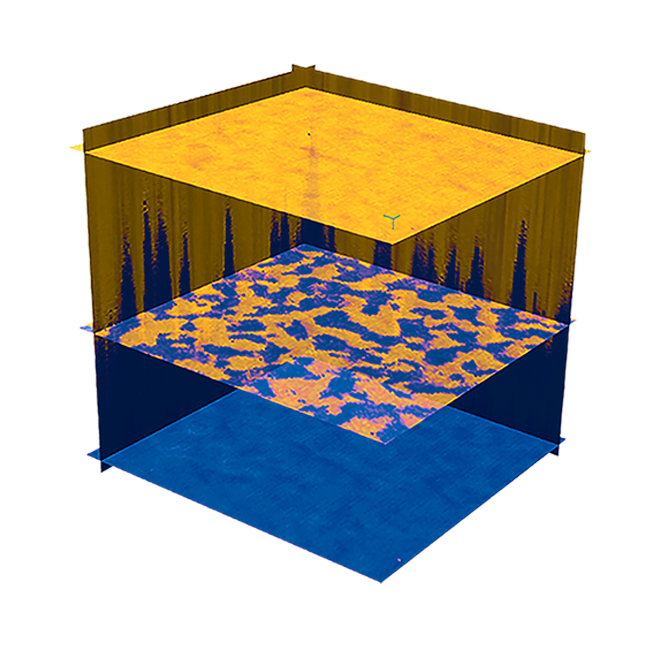

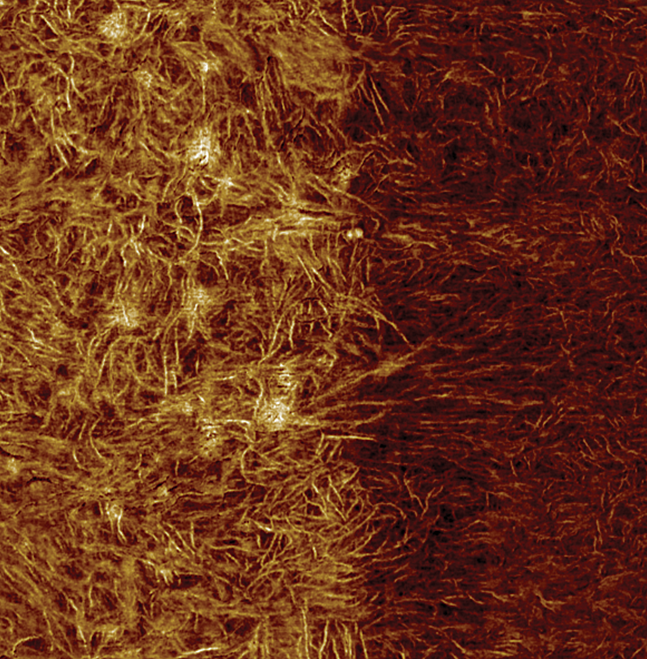

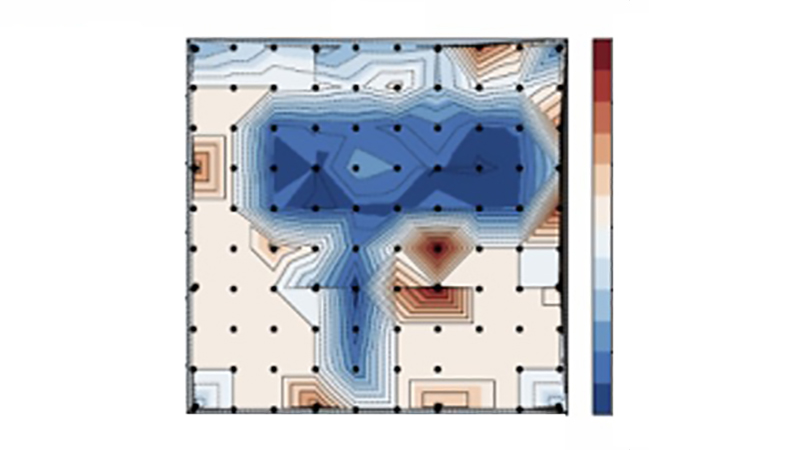

This and our other AFM mode advances — including new and exclusive modes such as DataCube, Ringing, ss-PFM, Torsional Resonance Dynamic Friction Microscopy (TR-DFM), and PeakForce Magnetic Force Microscopy, as well as ScanAsyst Plus intelligent self-optimizing software — further enhance other correlative and quantitative mapping techniques to enable the development of new modes and deliver new possibilities in an ever-expanding set of applications, for researchers with an even wider range of AFM experience and measurement needs.
Frequently Asked Questions

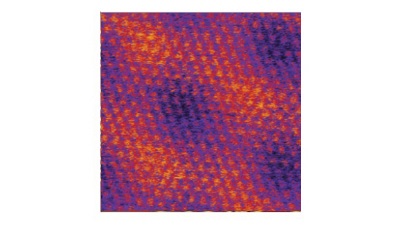

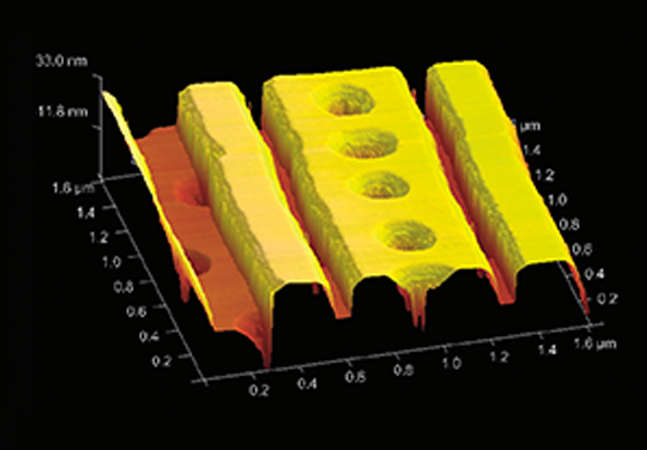

An atomic force microscopy (AFM) is a type of scanning probe microscope (SPM). It uses a very sharp probe that is raster-scanned to produce a true 3D topographical map of the surface of a sample with nanoscale resolution.
LEARN MORE:
All types of scanning probe microscopes use a physical probe touching the surface of a sample to scan the surface and collect data. However, their measurement mechanisms are very different — an atomic force microscope uniquely measures the cantilever deflection (bending) caused by forces between the tip and the sample surface. As a result, atomic force microscopes can be used to measure a much wider range of materials than STM.

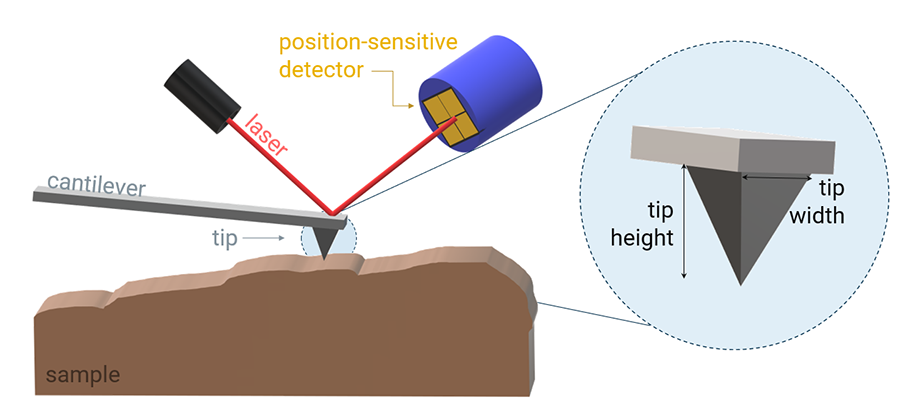

The basic working principle of an atomic force microscope is:
