Electron Microscope Analyzers

QUANTAX FlatQUAD

Maximum Efficiency in X-ray Detection

Unmatched Throughput

Analyzing Sensitive Samples

1
nm
Spatial resolution
Nano scale resolution in SEM
>1.1
sr
Highest solid angle
The solid angle indicates the geometric collection efficiency of the generated X-rays
3,200,000
cps
Output count rate
Up to 3,200,000 cps output count rate. That's around an order of magnitude faster than conventional EDS detectors

Overcome the Limitations of Conventional EDS with QUANTAX FlatQUAD

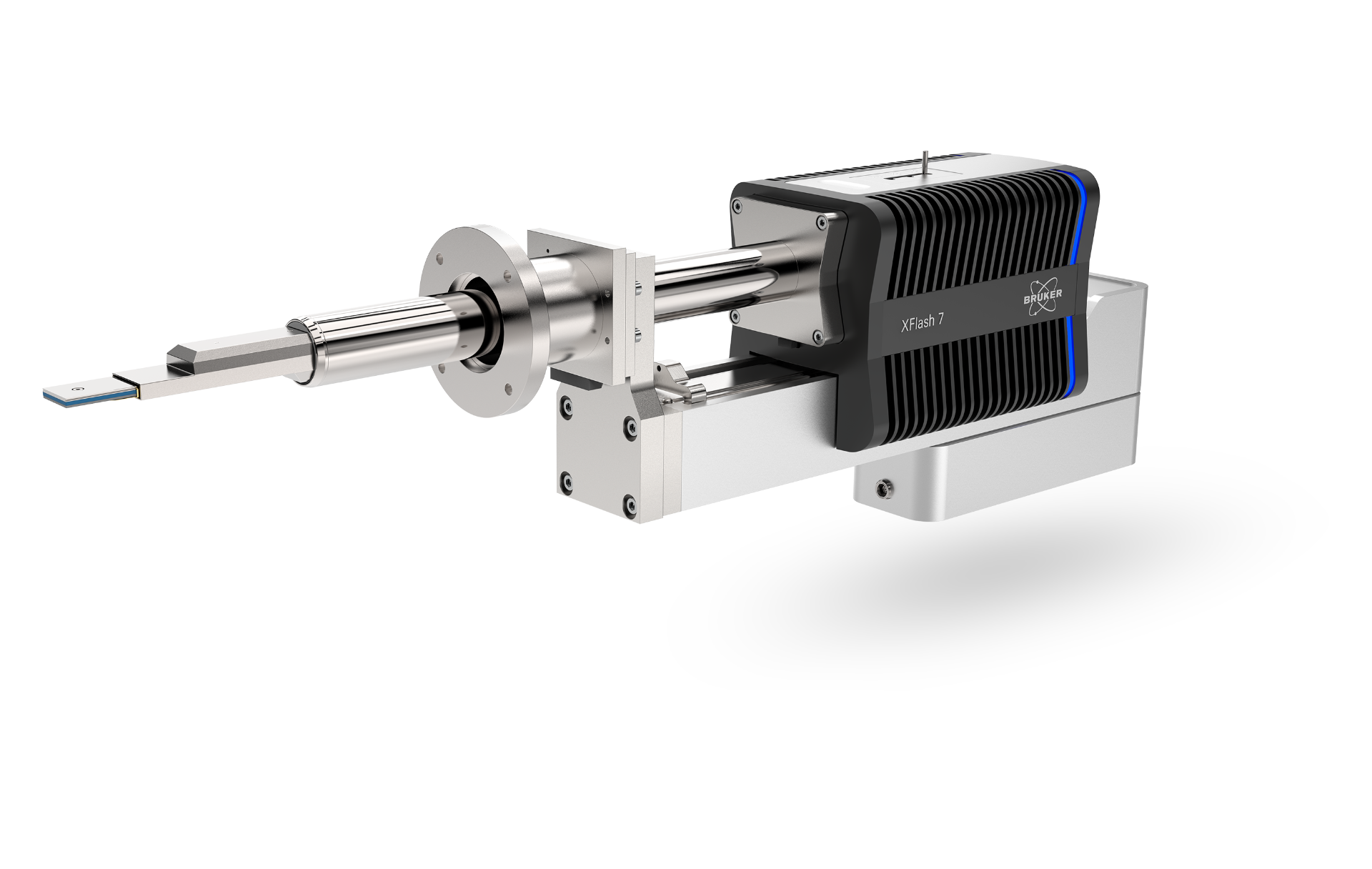

QUANTAX FlatQUAD is the EDS microanalysis system that uses the revolutionary XFlash® FlatQUAD.

This annular four-channel silicon drift detector is inserted between the SEM pole piece and sample, resulting in a very large solid angle in EDS which, alongside the unique four segment detector design, maximizes the signal collection. Extremely fast mapping at the highest output count rate (OCR) can be achieved at just moderate beam currents.

Using the ESPRIT analytical software suite, QUANTAX FlatQUAD provides unrivaled mapping performance, even for the most difficult samples.

XFlash® FlatQUAD - The Latest Detector Technology

Schematic showing how the primary electron beam of the SEM passes through the opening in the center of the XFlash® FlatQUAD. The X-ray signal emitted from the sample is then collected by the four SD detectors surrounding this opening, maximizing the solid angle and collection efficency.

XFlash®  FlatQUAD, the core of QUANTAX FlatQUAD, is based on a novel detector concept. This detector is designed to sit in between the SEM pole piece and the sample, with an opening in the detector's center for the SEM electron beam to pass through.

The detector has four independent silicon drift detector (SDD) segments that are placed in an annular arrangement around the central aperture. This design results in a significant increase in the solid angle, and therefore also the collection efficiency, when compared to conventional EDS detectors.

XFlash®  FlatQUAD is protected from backscattered electrons by special polymer windows of variable thickness. These windows absorb backscattered electrons whilst allowing the X-ray signal to be transmitted.

To ensure compatibility with many different SEM types, XFlash® FlatQUAD can be precisely positioned in the X, Y and Z directions.

Taking Energy Dispersive Spectroscopy to the Next Level

The unique design of the XFlash® FlatQUAD detector used in QUANTAX FlatQUAD means that it can perform where conventional SEM EDS analysis systems cannot.

XFlash® FlatQUAD gives users the ability to easily analyse a wide range of samples that are challenging for conventional EDS detectors.

View of the XFlash® FlatQUAD detector head from below showing the four-channel SD Detector with central aperture and an additional retracted polymer window for higher acceleration voltages.

Elemental Mapping of Beam Sensitive Samples

The elemental mapping of delicate samples, such as biological and semiconductor specimens, is often impossible. The XFlash® FlatQUAD detector overcomes this limitation with ease.

The high collection efficency of XFlash® FlatQUAD means that elemental mapping can be carried out at low beam current and voltage conditions without the loss in quality seen using a conventional EDS detector. Such conditions are needed to prevent sample damage during hyperspectral imaging. In addition, elemental mapping using FlatQUAD minimizes the need for sample preparation, with often no sample preparation required.

Elemental maps of 100 nm thin resin cross section of cancer cells acquired at 5 kV, 580 pA, and output count rate (OCR) of 109,800 cps.

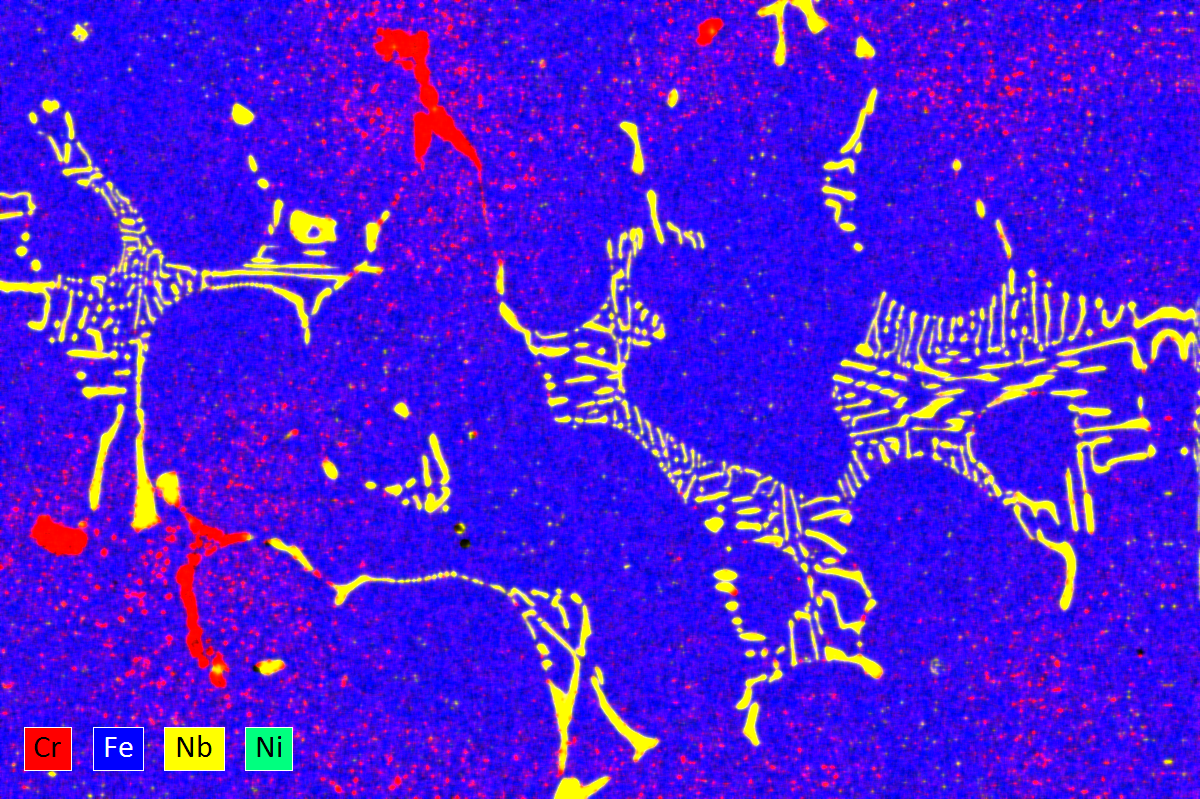

Ultra-Fast EDS Analysis at an Unmatched Throughput

Thanks to its novel design the XFlash® FlatQUAD detector can reach industry-leading output count rates (OCR) of up to 3,200,000 cps – providing the fastest EDS measurements possible using a single EDS detector. This unmatched analysis speed is the result of the detector’s optimized geometry and annular design, which provides a maximized solid angle, alongside ultra-fast parallel signal processing.

Using QUANTAX FlatQUAD users can make elemental measurements within seconds that would take hours using a conventional detector, allowing researchers to work through more samples in less time. The high collection efficiency of the XFlash® FlatQUAD detector means that fast elemental mapping can take place even at low electron doses, i.e. the low probe currents and acceleration voltages required for the analysis of beam-sensitive samples.

Chemical snapshot (single frame EDS map) acquired in a few seconds at 15 kV and 3 nA probe current. The highest sensitivity and solid angle of the FlatQUAD enable exceptionally high output count rates (OCR) of 1,169,000 cps, with a total of 28 million counts in the map. The excellent spectral data quality, combined with unmatched speeds, makes acquiring chemical maps with EDS as easy as acquiring a single-frame SEM image.

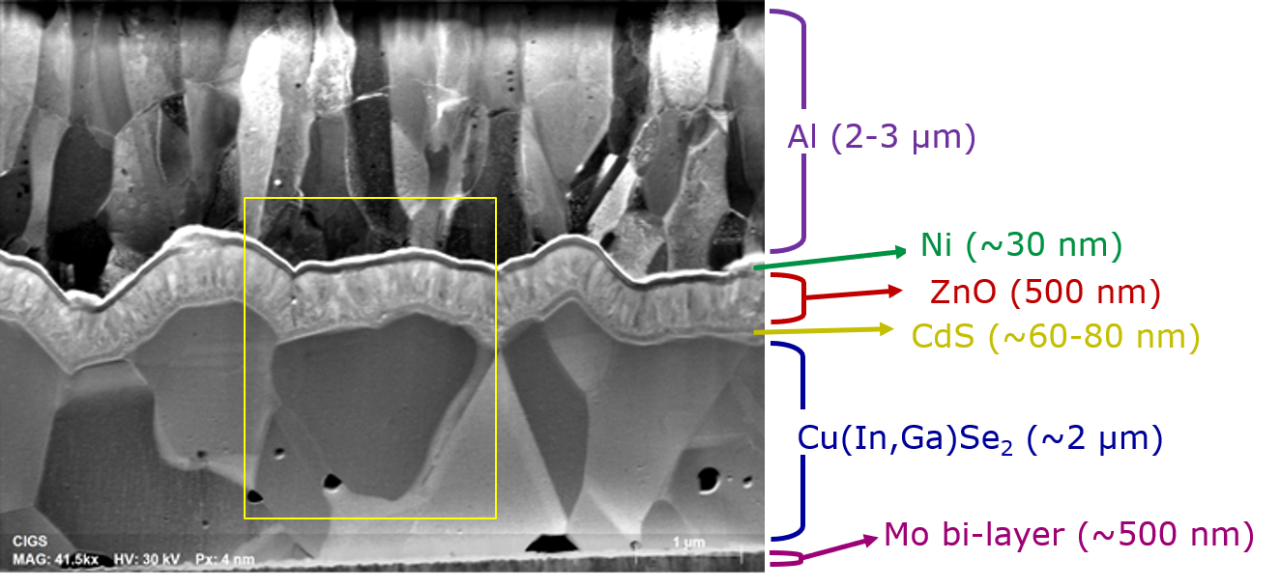

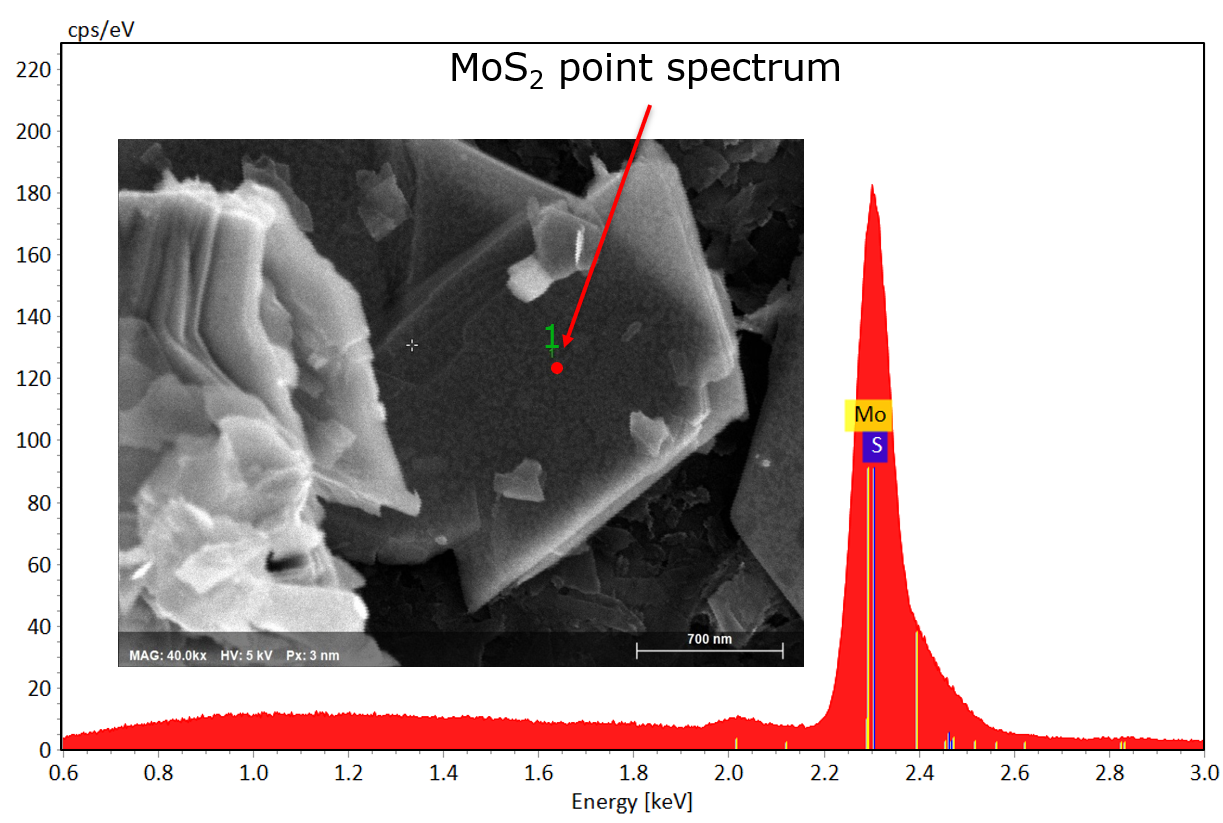

Ultra-High Resolution EDS in a SEM

Ultra-high spatial resolution elemental mapping is possible using QUANTAX FlatQUAD thanks to the high solid angle and collection efficiency of the XFlash® FlatQUAD detector.

In order to resolve fine features the acceleration voltage and probe current must be kept in an appropriate range. These conditions are very challenging for conventional EDS systems however XFlash® FlatQUAD's optimized geometry and large solid angle (1.1 sr) mean it is highly sensitive, allowing for precise analysis in the low pA range.

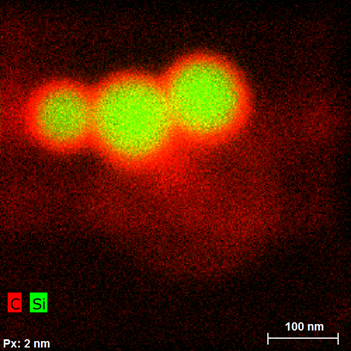

This sensitivity makes QUANTAX FlatQUAD ideal for the mapping and analysis of low X-ray yield samples such as FIB lamella and nanoparticles on a grid.

Ultra-high resolution SEM EDS map of a bulk FinFET device acquired at 5 kV and 1.1 nA with output count rates (OCR) of 309,000 cps.

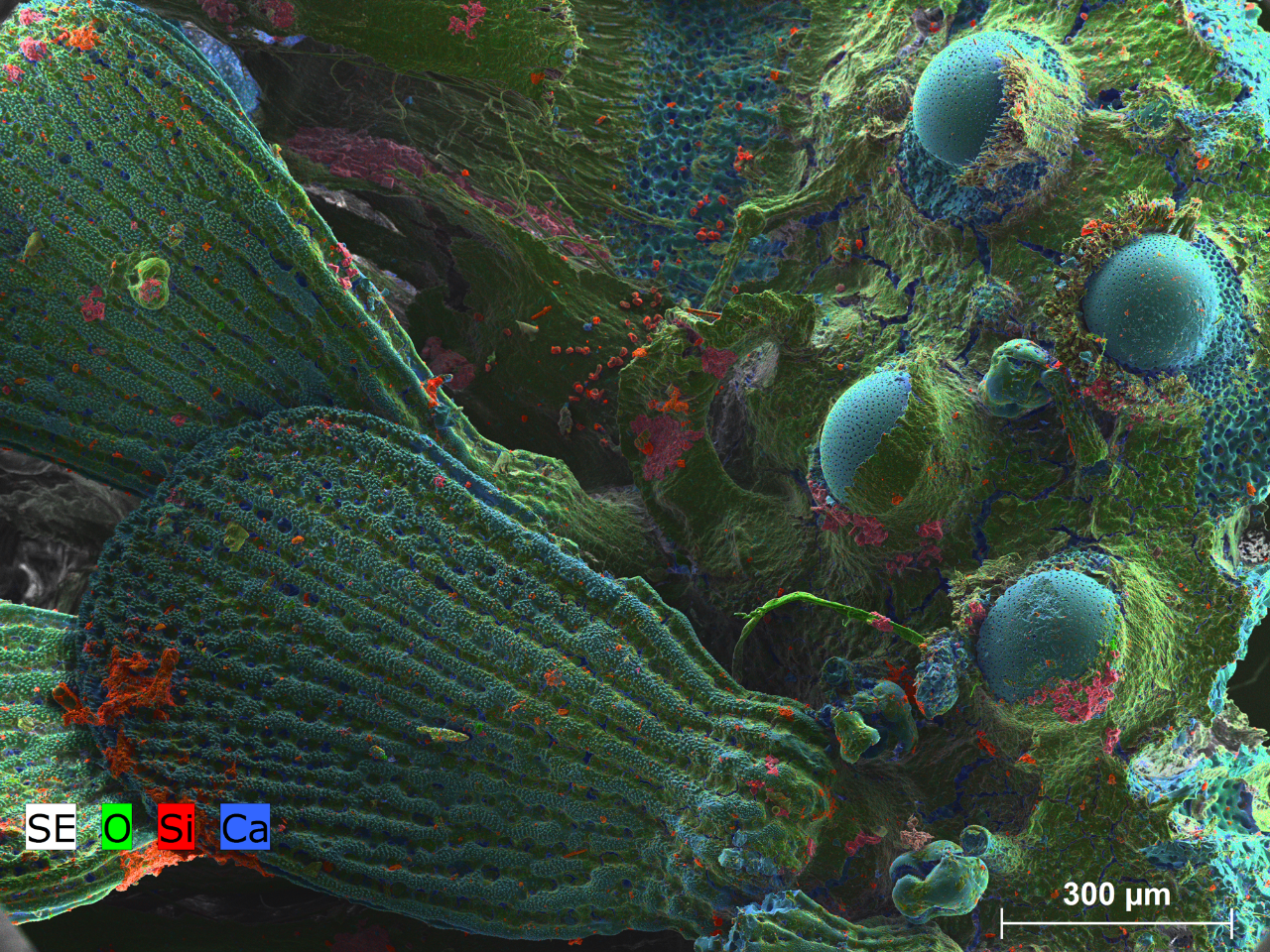

Elemental Mapping of Topographic Samples

QUANTAX FlatQUAD is ideal for the elemental mapping of topographic samples with minimal shadowing effects.

The annular design of the XFlash® FlatQUAD detector used in QUANTAX FlatQUAD provides a significantly higher takeoff angle than conventional EDS detectors. This, combined with the detector's high sensitivity allows users to analyze their samples in troughs between elevated features, allowing spectral mapping of the entire topographic specimen, and not just the easier-to-reach surfaces.

The spectral mapping of topographic samples is of particular use in the battery industry, allowing for the observation of elemental redistribution processes following charge/discharge cycles in electrode materials.

EDS elemental map with SE image overlay of a carbon anode sample acquired with Bruker XFlash® FlatQUAD EDS detector in cross section geometry.

Elemental Mapping of Non-Conductive Samples

Thanks to the extremely large solid angle of the XFlash® FlatQUAD detector, QUANTAX FlatQUAD can be used to analyse samples that are difficult or even impossible to investigate using conventional systems as it can be used in the pA range:

  • Non-conducting specimens can be investigated under high vacuum without carbon coating. Compared to low vacuum analysis, this approach reduces hydrocarbon contamination and avoids beam skirting effects.
  • Samples with low carbon content can be analyzed, as carbon deposition caused by the electron beam is drastically reduced and result falsification avoided.
  • Valuable samples (e.g., cultural heritage objects) can be analyzed in their original state without destructive sample preparation.
SEM image and elemental map of a heavily charging pharma tablet measured at ultra-low probe currents < 18 pA and 3,100 cps OCR.

STEM in SEM Imaging of Electron Transparent Samples

QUANTAX FlatQUAD gives users the ability to perform STEM in SEM EDS measurements of electron transparent samples using just a SEM. This allows for high-resolution EDS without the stringent sample preparation and conditions required for a TEM.

Combined EDS with EBSD on Electron Transparent Samples

To gain even more information from your electron transparent samples, combine the XFlash® FlatQUAD with an eFlash EBSD detector retrofitted with OPTIMUS 2 detector head.

Chemical distribution map of a 50 nm thin FIB/STEM lamella from AlGaN LED semiconductor device acquired at 5 kV, 960 pA, with 218,400 cps OCR.

Quantification of a Sample's Elemental Composition

Accurate elemental quantification is possible using the XFlash® FlatQUAD, allowing users to determine the elemental composition of their samples.

 QUANTAX FlatQUAD is even able to quantify light elements such as boron, including at high throughput of  3,200,000 cps.

Quantification of BN sample embedded in a brass block. The 3 kV measurement shows the B to N ratio of 1:1, which matches the expected composition.

Real-Time Elemental Mapping using ESPRIT LiveMap

The large solid angle and high-performance parallel signal processing of the XFlash® FlatQUAD detector used in QUANTAX FlatQUAD enables live elemental mapping using the ESPRIT LiveMap feature at high count rates.

Live elemental mapping is particularly useful in preliminary sample screening. QUANTAX FlatQUAD can be used alongside ESPRIT LiveMap to identify regions of interest (ROI) within a sample – such as contamination, interfaces or localized trace elements – which can then be analyzed further and quantified using the same detector. ESPRIT LiveMap includes features such as automated element identification and peak deconvolution.

Video showing real-time elemental mapping of a Sn-Cu solder region with ESPRIT LiveMap

One EDS Detector for Every Task - Perform Both Qualitative & Quantitative Analysis

In addition to the unique analytical capabilities of QUANTAX FlatQUAD, which brings EDS to new application fields, it's core XFlash FlatQUAD detector can work as a standard EDS detector.

This means that both the qualitative and quantitative EDS analysis of samples is possible using just one EDS detector.
