Minerals: Mining and Mineral Processing

Maintenance, Remediation and Reclamation

Safe operations and effective remediation and reclamation of mine projects relies on a robust risk mitigation program grounded on analytical information. Bruker’s analytical tools have a place in both preventative maintenance plans and closure workflows.

Mine Operations

Analytical Tools to Keep Mines Safe and Smoothly Operating

Modern mines are complex operations that require constant monitoring and maintenance to reduce costs, eliminate lost-time incidents, and comply with environmental and safety regulations during and after extraction is complete. Bruker's range of elemental analyzers allows flexible approaches to field and lab analysis of rocks, soils and waters, as well as alloys and other metals, to keep track of every part of the mine maintenance and reclamation process.

Mine Maintenance

Leveraging Information for Efficient Pit and Workings Maintenance

An ongoing mining and extraction operation relies on active maintenance within an open pit, underground operation, and the surrounding mine area. Waste water released into the environment, either ground water pumped from underground operations or from within an open pit, or treated water released from the mineral processing operation, must be constantly monitored. Leach pads, tailings ponds, and their containment areas must be monitored for unintentional release of solvents and dissolved metals. Waste piles and surrounding drainage areas should be routinely checked for issues with acid mine drainage. Bruker's elemental analyzers cover a range of workflow solutions that drive efficiencies in mine site monitoring aimed at maintaining efficient mineral extraction operations.

  • The field portable or mine-site optimized S2 PICOFOX and lab-focused S4 T-STAR total reflection X-ray fluorescence (TXRF) instruments provide low-operating cost, high-performance trace element analysis of liquids, suspensions, solids and contaminants down to ppb levels. These instruments provide rapid turn-around on-site data for water discharged from pit operations, waste water from mineral processing operations, contaminant monitoring of tributaries downstream of leach pads, waste piles and tailings dams.

  • The handheld S1 TITAN and benchtop CTX X-ray fluorescence units can be equipped with application specific calibrations targeted at soil and stream sediment analysis for heavy metals within the vicinity of mining operations, tracking contaminant distributions. The low-cost and field-ready instruments provide rapid screening solutions to reduce the number of samples needed for more expensive techniques.

  • Additional onsite and laboratory grade solutions are provided by the benchtop S2 PUMA EDXRF or high volume S8 TIGER WDXRF instruments. Equipped with the GEO-QUANT series of calibration solutions, target any major or trace element component with a high-accuracy and precision analytical approach.

Remediation & Reclamation

Analytical Tools for Remediation and Reclamation of Mine Sites

Mine reclamation has become an integral part of modern mining practice and is required by law in most countries. Reclamation includes planning before mining begins with characterization of the area needed to be returned to its prior state, and continues long after physical remediation efforts cease. Strategic plans for remediation and reclamation include choosing and implementing the right analytical tools and workflows that allow prediction of potential environmental problems, selection of appropriate materials to be used in reclamation efforts, and efficient detection and monitoring of land surfaces, groundwater and run-off.

Bruker's diverse analytical solutions allow you to improve efficiencies and minimize costs at all stages of the mine reclamation process from prediction to monitoring, including:

  • Characterization of waste rock for potential acid mine drainage and heavy metal contamination in ground waters using the rapid scanning capabilities of the M4 TORNADO micro-XRF, micron-scale capabilities of QUANTAX EDS and AMICS automated mineralogy for scanning electron microscope, or bulk mineralogical characterization using D2 PHASER or D8 DISCOVER XRD systems.

  • Identification of locally appropriate soil types and nutrient profiles to allow more advance ecosystem regeneration using portable XRF solutions like the handheld S1 TITAN (which incorporates the ISO 13196:2013 and ISO 18227:2014 soil quality methods), countertop XRF instruments such as the CTX or S2 PUMA, and more advance analytical solutions such as the S6 JAGUAR and S8 TIGER

  • Screening and monitoring of soil contamination above and around reclaimed mine sites using handheld XRF. Examples include the US EPA 6200 method of site boundary delineation and data collection, where in-situ results allow for determination of contamination boundaries, as well as identification of areas where samples should be collected, prepared, and reanalyzed for more detailed lab-based quantitative analysis.

  • Monitoring of runoff and groundwaters within and around reclaimed mine sites using rapid turn-around and low-cost analytical techniques such as total reflection X-ray fluorescence (TXRF) using the field transportable S2 PICOFOX and lab-based S4 T-STAR. Both TXRF spectrometers provide detection limits for many elements in the pg and ppb range and are compact plug and play systems without need for gases, media or advanced lab infrastructure making operation costs negligible.
  • Detection of heavy metal contamination around abandoned historic mines using handheld XRF to identify and provide planning data for future clean-up efforts. The rapid turn-around, high quality data allow identification and screening of potential remediation sites and screening of samples for more expensive lab-based analysis.



Contaminants in Water

Selenium (Se) is a naturally occurring element in rocks and sediments.  While Se is essential to biological organisms, it is also toxic at higher concentrations. Mining effluent can have higher concentrations of Se that may require monitoring. TXRF is an inexpensive and easy analytical technology for trace element analysis in water without dilution, consumable gasses, or complex sample preparation.

Health and Safety

Consistent Data is the Key to Health and Safety in the Mining Environment

The mining industry has been at the forefront of workplace health and safety, having implemented comprehensive procedures to safeguard the health and safety of its most valuable asset – its workforce. Bruker's range of analytical devices covers every need for the detection and characterization of potential natural mineral hazards in the mine environment, and for ongoing monitoring of air quality in underground and surface operations.

  • Monitoring of airborne dust containing respirable crystalline silica or other toxic components that can lead to immediate and long-term lung damage through silicosis and cancer. Infrared spectroscopy (FT-IR) offers direct on filter substrate (DoF) analysis, which allows rapid determination of α-quartz and carbon dust by directly analyzing the PVC filters typically used to capture these contaminants in workspaces.

  • Detailed characterization of mineral contaminants that can lead to cancer, including asbestos, using X-ray power diffraction, with the benchtop D2 PHASER, the laboratory floor standing D8 ADVANCE, and the high-performance industry grade D8 ENDEAVOR, or scanning electron microscopy armed with QUANTAX EDS.

Plant Operations

Analytical Tools for Plant Operations and Maintenance

Efficient mine operations are underpinned by the machinery that aids the recovery of ore from the mine and its movement through the processing plant. Profits are impacted when mechanical failure leads to expensive repairs and down time. Ensuring that the correct parts are installed, and monitored of part wear, provide for maintenance procedures that limit failures that can result in plant down time, or even injury to personnel. Bruker provides inexpensive solutions for easy deployment of Positive Material Identification (PMI) and wear metal monitoring solutions.

  • Metal and alloy component reliability, traceability, and safety are of the utmost importance across the gamut of mine operations from haul trucks to the processing plant. A 100% positive material identification and verification program can eliminate costly alloy mix-ups, improve product quality, and prevent injuries or even loss-of-life. Bruker’s portable and non-destructive testing (NDT) XRF and Optical Emission Spectroscopy PMI equipment provides highly accurate, easy-to-understand positive material identification in seconds and in any location, achieving regulatory and ISO compliance with an efficient and low-cost approach.

  • Maintenance costs escalate when an inability to monitor wear of mechanical parts leads to component failure and time lost for repair. Maintenance efficiencies are improved, and areas of future failure predicted through rapid analysis of wear metals. With component parts commonly composed of measurably different alloys, tiny fragments of wear metals can be targeted in lubricants, oils and other machine fluids with low cost, portable and site rugged XRF analyzers such as the S1 TITAN and CTX. Include these analyses as part of routine oil maintenance operations and save money on failures and downtime.

詳細

関連製品

Products for Maintenance, Remediation and Reclamation

AMICS Mineral Software

AMICS(Automated Mineralogy System for SEM)

SEMによる鉱物や岩石の特性評価のための自動高速スキャンを実行します。
CTX Benchtop / Desktop XRF

CTX BenchTop XRF spectrometer.

Portable BenchTop XRF ideal for quick analysis of small or prepared samples: only 14 cm wide, light-weight (<7 kg), safety-interlocked, interactive touchscreen, and battery operated.
D2 PHASER

D2 PHASER

世界最高峰の卓上型X線回折装置 XRD for everyone / XRD for everywhere / XRD for everything
D8 ADVANCE

D8 ADVANCE

多結晶粉末と層状サンプルの分析でクラス最高の性能を提供する多目的で最も使いやすいモデル
D8 ENDEVOR

D8 ENDEVOR

新しいD8 ENDEVORは産業プロセスの最適化と品質管理における粉末XRD分析向けの先進システムです。このシステムは、マルチユーザー環境でのスタンドアローン利用にも、自動搬送系に組み込まれたオートメーションシステムとしての利用にも適用できます
High Performance micro-XRF spectrometer with Market-Leading Speed and Flexibility

M4 TORNADO

微小部(<20 µm スポット径)および多層膜分析 (最大12 層)のための高性能マイクロXRF は元素の組成と分布(2D面分析)を行うことができます。
Bruker M4 TORNADO AMICS micro-XRF Automate Data Collection and Mineral Matching

M4 TORNADO AMICS

M4 TORNADO AMICSは、X線励起を使用して鉱物マッチングのためのエネルギースペクトルを収集する自動化された鉱物学への革新的な新しいアプローチです。
S1 TITAN Handheld XRF analyzer

S1 TITAN Handheld XRF Analyzer

Handheld XRF ideal for taking the lab to the sample for fast analysis of any material: small, light-weight (<1.5 kg with battery), preloaded with point-and-shoot calibrations of choice.
S2 PICOFOX total reflection X-ray fluorescence (TXRF) analysis

S2 Picofox

ngまたはμgの範囲の非常に少ないサンプル量の極微量(サブppb)元素分析のための持ち運び可能なTXRF分光計:低い操作コスト、"クリーン"な技術
S2 PUMA Series 2

S2 PUMA

炭素 (C) からアメリシウム (Am) までの多元素分析により、生産ラインにおける品質管理や研究所での幅広いアプリケーションに対応します。S2 PUMAは独自のHighSense検出器を備え、研究開発における高度な分析にも応用可能です。
High Performance TXRF Spectrometer for Ultra-Trace Element Analysis

S4 T-STAR

pg、ngまたはμgの範囲の非常に少ないサンプル量の極微量(サブppb)元素分析のためのハイエンドTXRF分光計:低い操作コスト、"クリーン"な技術
S6 JAGUAR

S6 JAGUAR

優れた分析性能を発揮する最先端の技術を搭載したコンパクトサイズのWDX装置
S8 TIGER Series 2

S8 TIGER Series 2

産業分野と研究機関での高度な元素分析に適応可能な、最も汎用性の高い装置
XFlash 6/30 EDS detector

QUANTAX EDS for SEM

SEM, FIB, EPMA用の最先端EDS
Q2 イオン

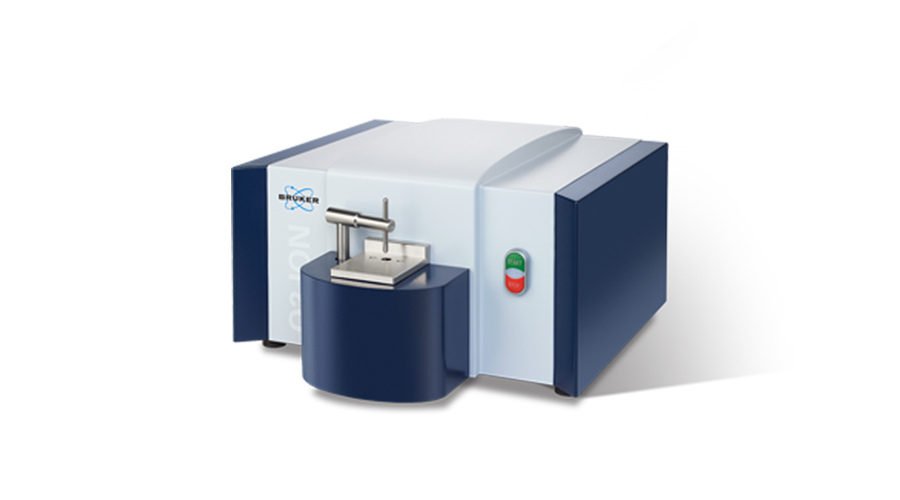

Q2 ION

Q2 IONは、金属分析用の最も小さく、最も軽量な超小型スパーク発光分光計の1つです。分析のために近くのサイトに簡単に持ち込むことができます。その低い重量にもかかわらず、それは険しい環境の適用のために適している。
Q8 マゼラン

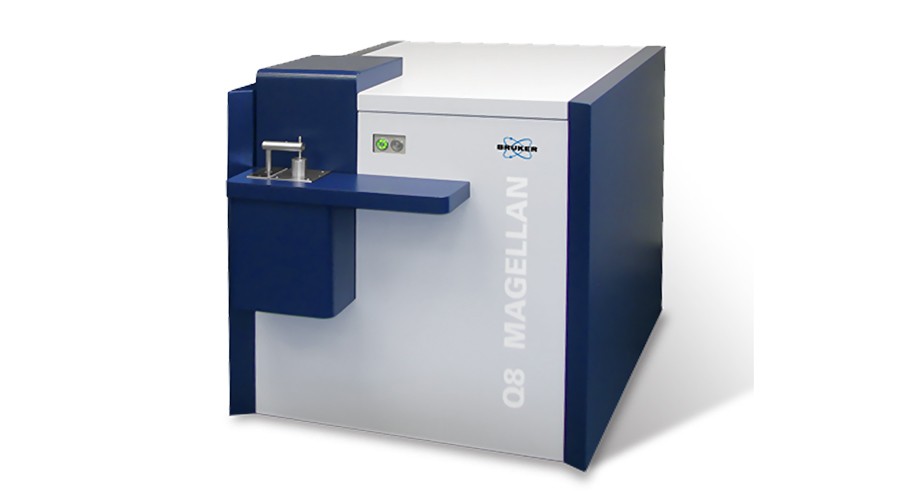

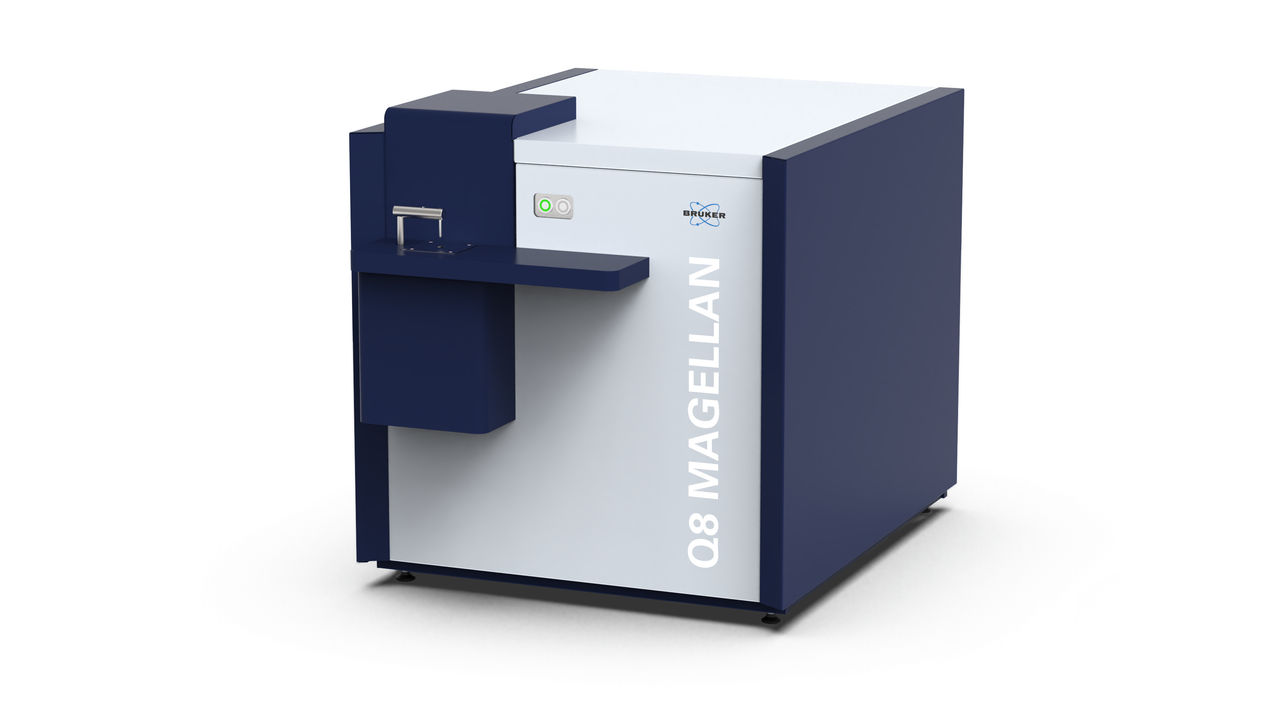

Q8 Magellan

Q8マゼランは、技術、信頼性、柔軟性、および取り扱いに関して新しい基準を設定するスアーク発光分光計です。測定パラメータの無限の組み合わせの可能性のために、これまで見られなかった分析の品質を提供する世界初の分光計です。
